7.6.- LONWORKS COMMUNICATIONS MODULE
The LonWorks communications module, M-CVM-AB-LON, enables communicating the CVM-B
on a LonWorks network.

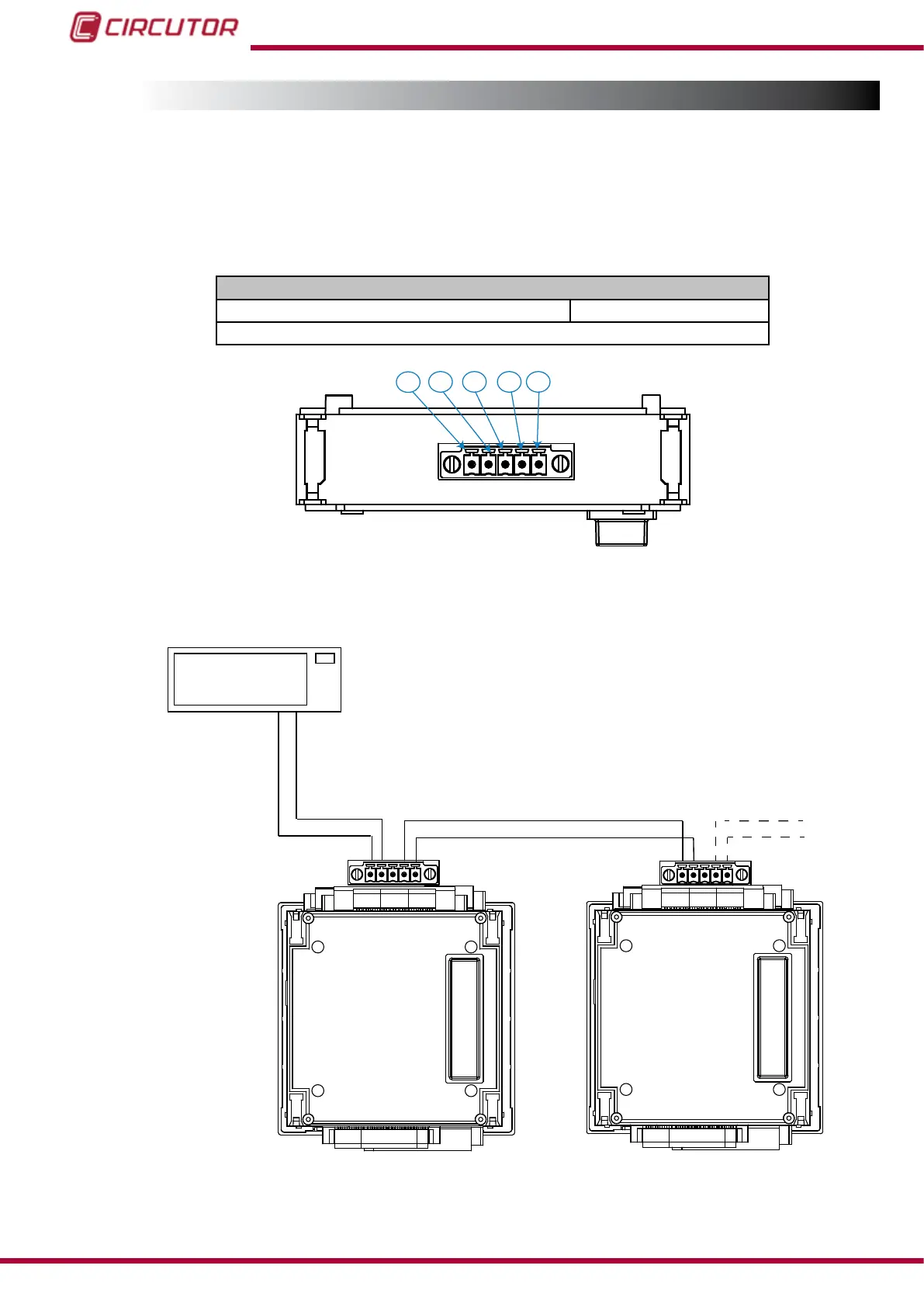

7.6.1.- CONNECTION TERMINALS
Table 131: List of terminals, LonWorks communications module.
Terminals in the unit
1, 4: A, Bus connection ( without polarity ) 3: Not used
2, 5: B, Bus connection ( without polarity )
1
2
3
4 5
Figure 187: Modbus LonWorks communications module terminals.
7.6.2.- CONNECTION DIAGRAM
B B A
A B
Red LonWorks
A A B
CVM-B1xx
+
M-CVM-AB-LON
CVM-B1xx
+
M-CVM-AB-LON
Figure 188:Connection diagram, LonWorks.
268
CVM-B100 - CVM-B150
Instruction Manual
