7.4.- ANALOGUE INPUTS/OUTPUTS
This expansion module contains 8 analogue outputs and 4 analogue inputs.
7.4.1.- CONNECTION TERMINALS
A.- Terminals on the upper face
Table 109: List of terminals on the upper face, Analogue inputs/outputs module.
Unit terminals
1: O
1 , Analogue output 1 6: O 6 , Analogue output 6
2: O
2 , Analogue output 2 7: O 7 , Analogue output 7
3: O
3 , Analogue output 3 8: O 8 , Analogue output 8
4: O
4 , Analogue output 4
9: COM, Common analogue outputs
5: O
5 , Analogue output 5
1
2
3
4 5 6 7 8 9

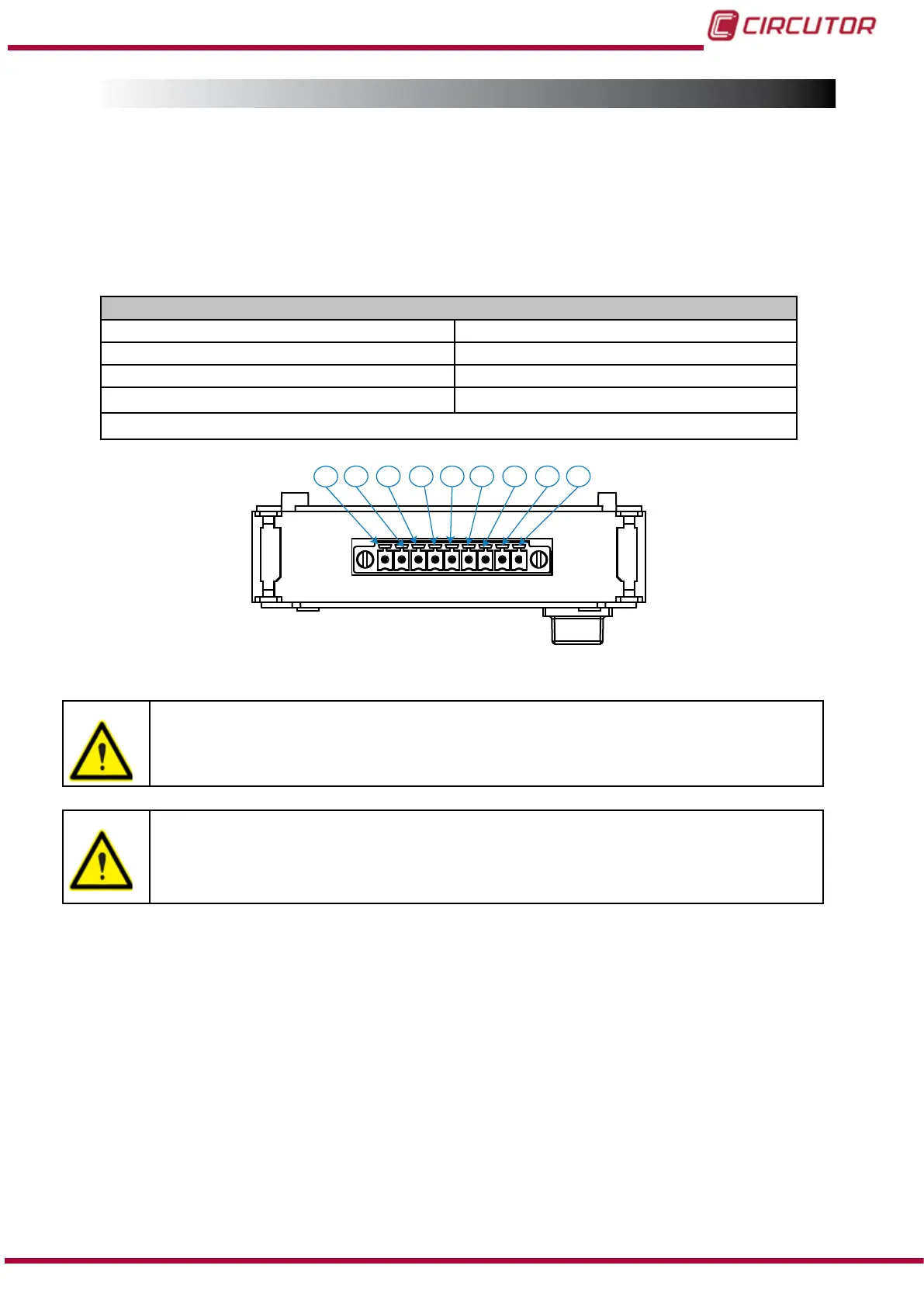

Figure 167:Analogue Input/Output Terminals, upper face.
The analogue outputs are active; they do not need an external power supply for
generating 20 mA or 10 V.
The operating mode of each output (Voltage or Current) is congured on the
unit's screen or by communications.
Make sure the output is congured according to your needs before connecting a
unit to it. Your unit could be damaged.
