7.9.3.- CONNECTION DIAGRAM
PC
Ethernet
ROUTER
SERVIDOR/ SERVER
INTERNET
Con navegador Web
compatible con Java
Opcional / Optional
CVM B-1xx
+
M-CVM-AB-Datalogger
Servidor Web
Servidor XML
PowerStudio DDBB
PC
Con navegador Web
compatible con Java
With a browser
compatible with Java
With a browser
compatible with Java

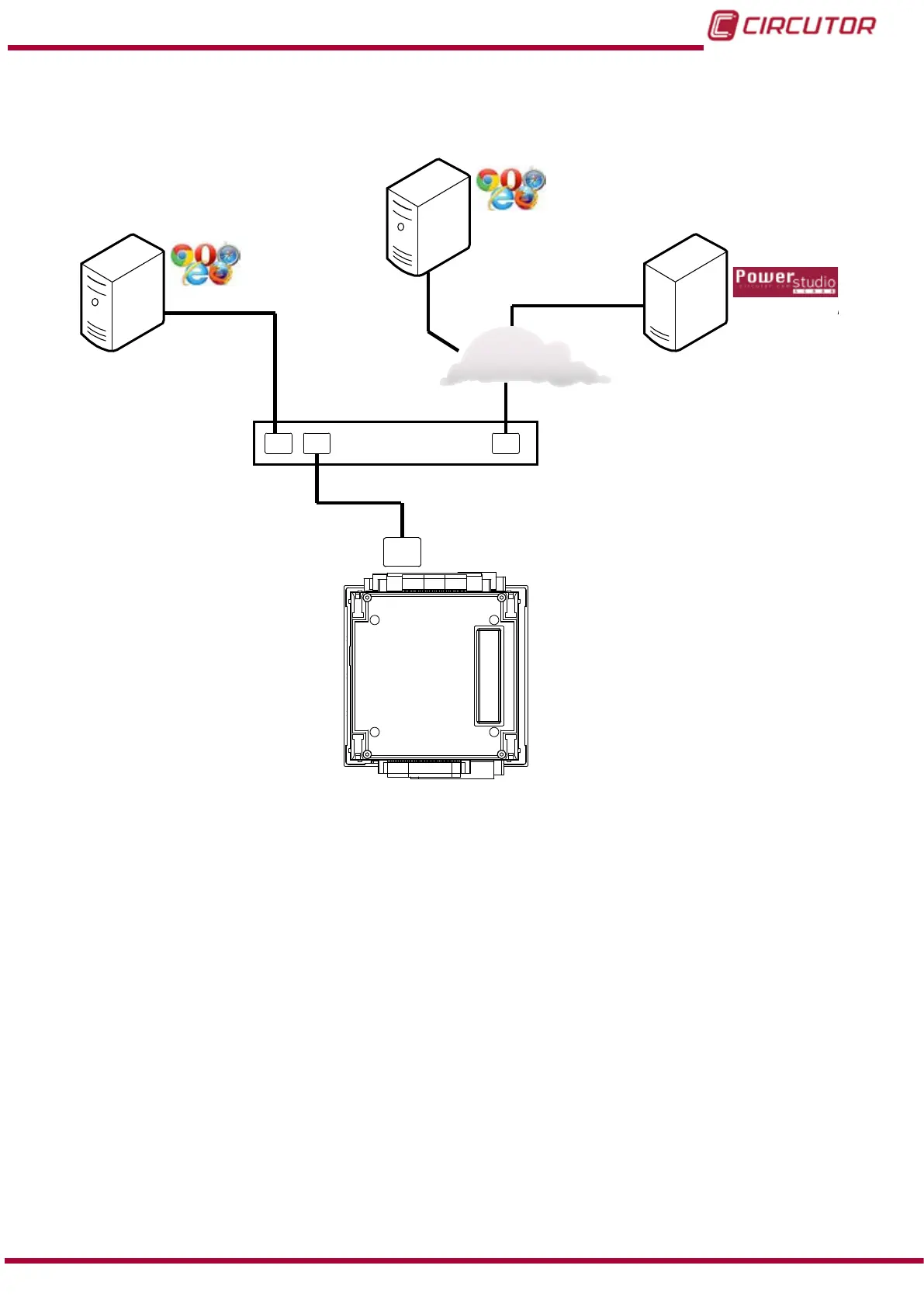

Figure 206:Connection diagram, Datalogger.
