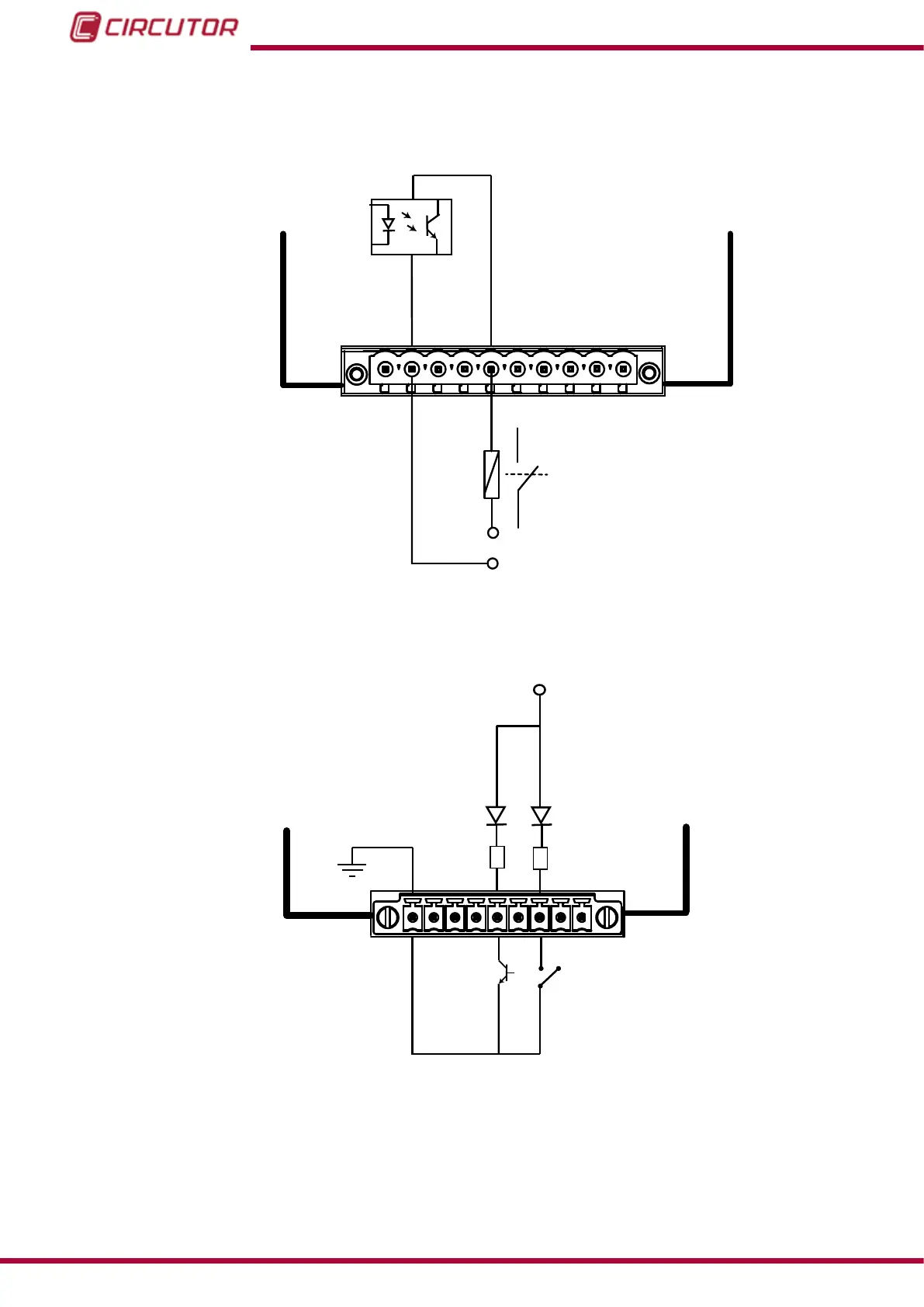

7.3.2.- CONNECTION DIAGRAMS
A.- Transistor digital outputs
1 2 3 4 5 6 7 8 9 10
Optocoupler
External power
+
-
Figure 161:Connection diagram, transistor digital outputs.
B.- Digital inputs
11
19
12 V DC
3k 3k
NPN
Free voltage input
COMM
Figure 162:Connection diagram, digital inputs.
228
CVM-B100 - CVM-B150
Instruction Manual
