5.1.6.- HARMONICS.

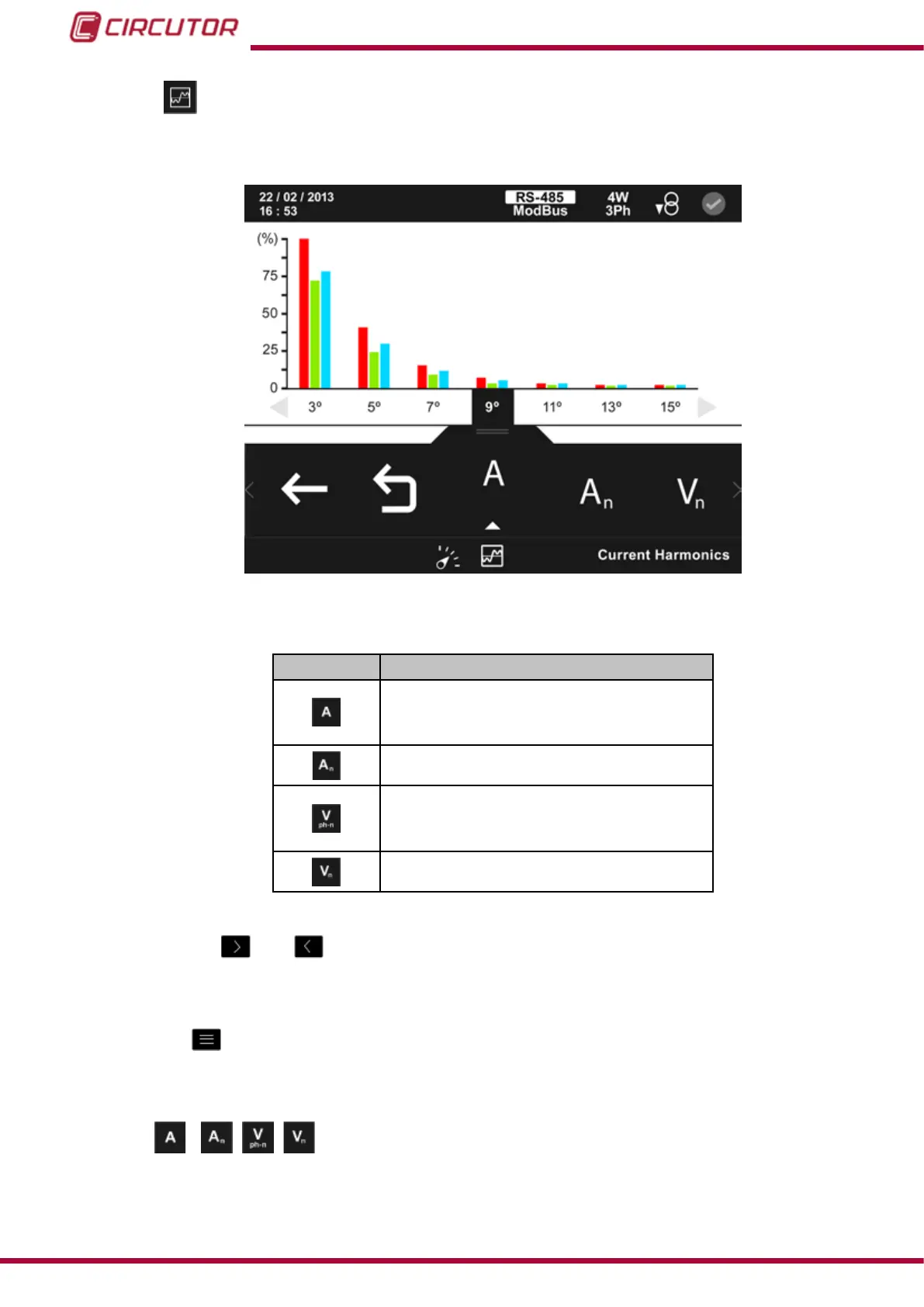

On this screen, Figure 82, you can view the harmonics of the parameters indicated in Table 20.
Figure 82: Harmonics screen.
Table 20:Harmonics.
Icon Harmonics
Current harmonics L1
Current harmonics L2
Current harmonics L3
Neutral current harmonics
Harmonics of phase-neutral voltage L1
Harmonics of phase-neutral voltage L2
Harmonics of phase-neutral voltage L3
Neutral voltage harmonics
Use the keys and to browse the various parameters.
The menu in the lower area disappears after a few seconds.
Press the
key to display the lower area again.
In the lower area you can:
, , , Select the types of harmonics to display: current, neutral current,
phase-neutral voltage or neutral voltage.
Note: The option selected is not displayed on the menu.
98
CVM-B100 - CVM-B150
Instruction Manual
