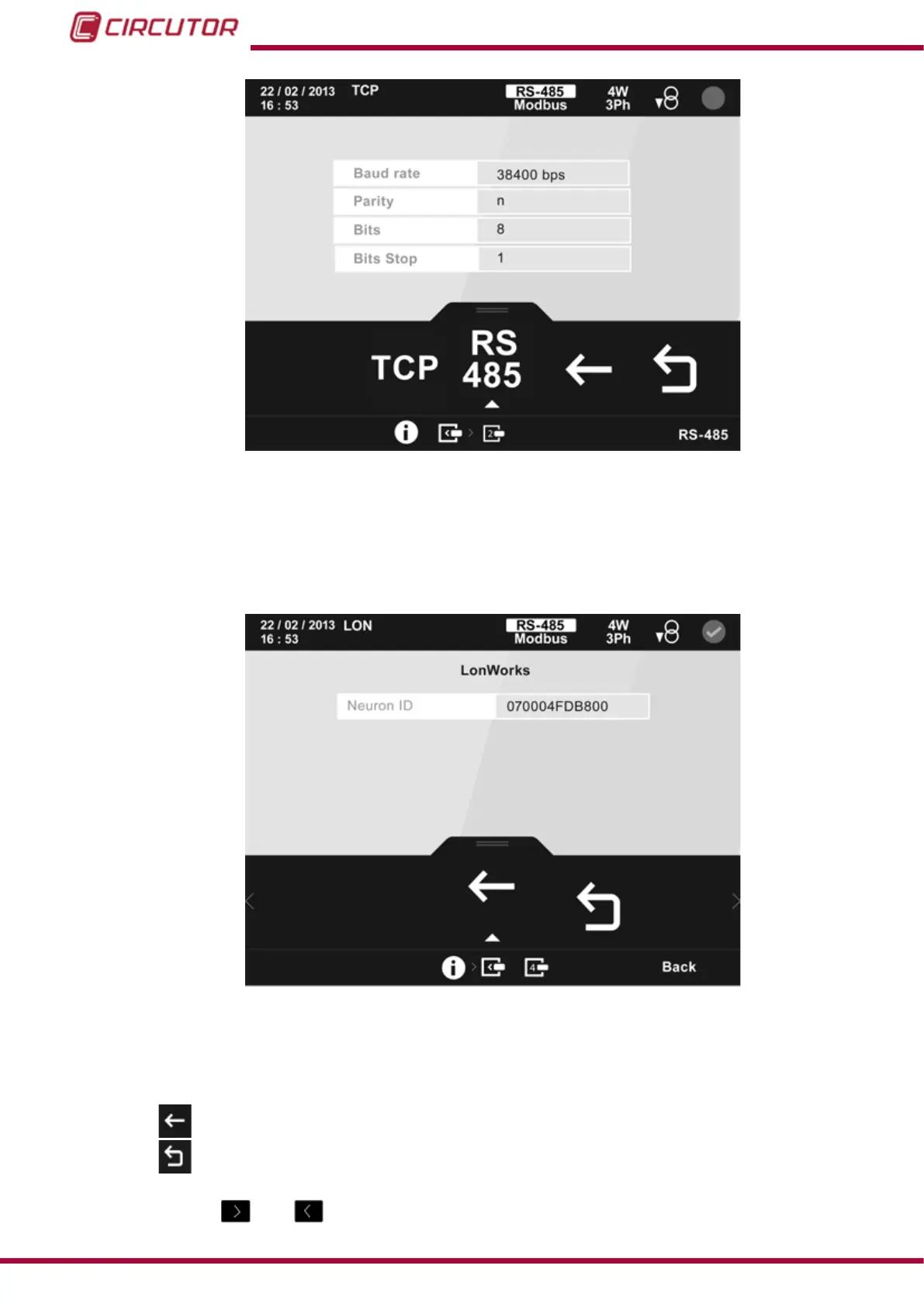

Figure 104: Information screen of the Modbus/TCP ( Bridge) module (RS-485 Gateway).
5.5.3.4.- LonWorks communications expansion modules
The screen in Figure 105 display screen, is a screen that displays the information of the
LonWorks communications module.
Figure 105: LonWorks module information screen.
This screen displays the unit's Neuron ID, a single 48-bit identier of each Neuron Chip.
The following options appear in the lower area:
Back, returns to the expansion module information screen, Figure 98
Main Menu, back to the main menu, Figure 25.
Use the keys
and to select the different options.
118
CVM-B100 - CVM-B150
Instruction Manual
