Circutor CVM-B100 User Manual

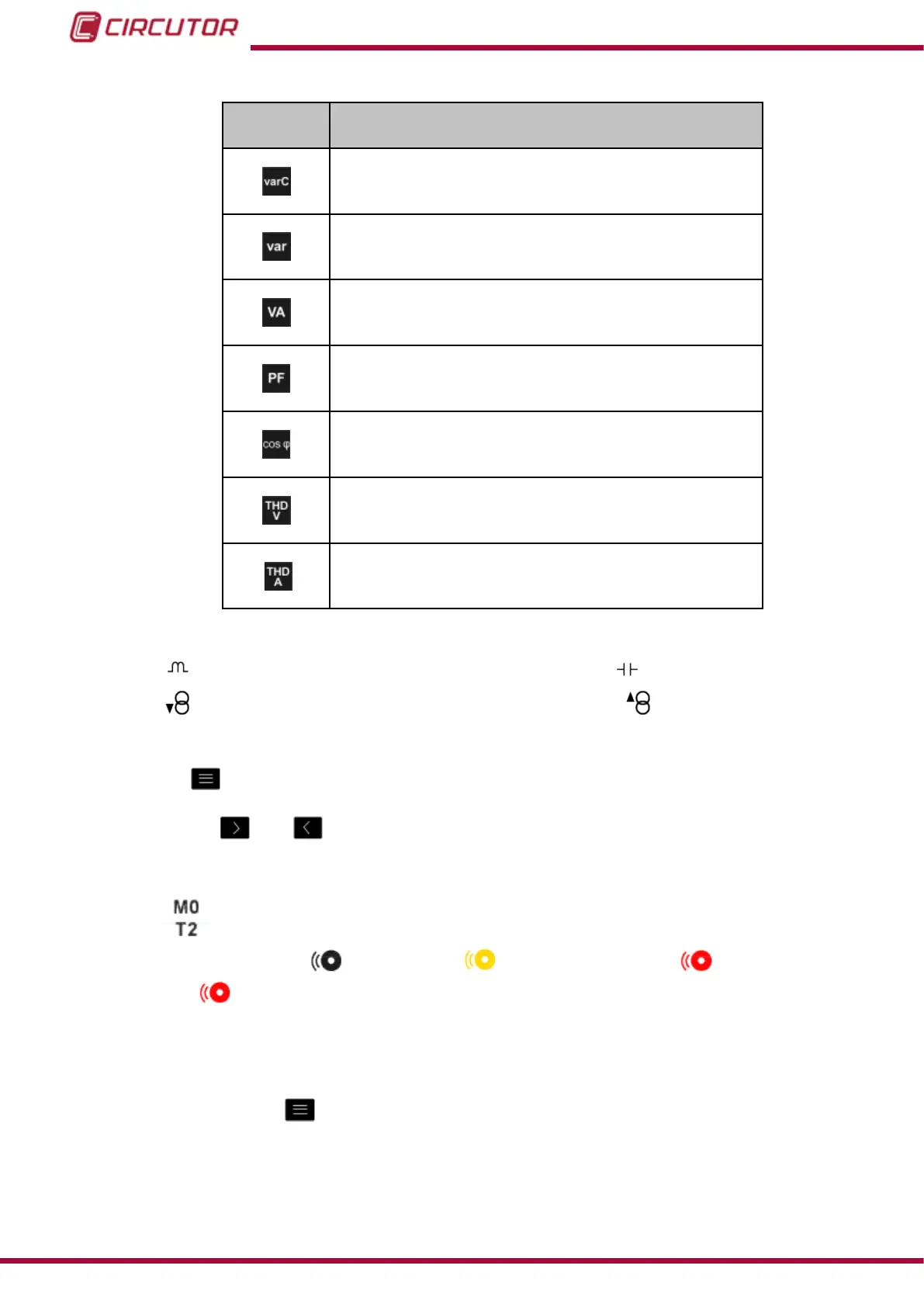

Table 14 ( Continuation) : Instantaneous parameters (display 3 parameters).
Icon
Display 3 parameters
Instantaneous parameters
Capacitive reactive power L1
(1)
Capacitive reactive power L2
(1)
Capacitive reactive power L3
(1)
Total reactive power L1
(1)
Total reactive power L2
(1)
Total reactive power L3
(1)
Apparent power L1
(1)
Apparent power L2
(1)
Apparent power L3
(1)
Power Factor L1
(1)
Power Factor L2
(1)
Power Factor L3
(1)
Cosine phi L1
(1)
Cosine phi L2
(1)
Cosine phi L3
(1)
Voltage THD L1
(1)
Voltage THD L2
(1)
Voltage THD L3
(1)
Current THD L1
(1)
Current THD L2
(1)
Current THD L3
(1)
(1)
The following icons appear for all these parameters on the screen:
Indicating that the parameter refers to inductive or capacitive energy.
Indicating that the parameter refers to consumed or generated energy.
If the 2 icons light up at the same time, it means the installation is not properly connected.
Press the
key to display the lower area.
Use the keys
and to browse the various parameters.
If there is an alarm associated with the variable being displayed, the following will be shown:
The module with which the alarm is associated.
The associated output in the module.
The alarm status: not activated, pre-alarm activated, alarm activated.
The icon flashes during the delay time in the alarm connection (ON) and
disconnection (OFF).
The menu in the lower area disappears after 3 seconds.
If you press the key
while selecting a display parameter, you will enter the parameter
display menu.
66
CVM-B100 - CVM-B150
Instruction Manual
