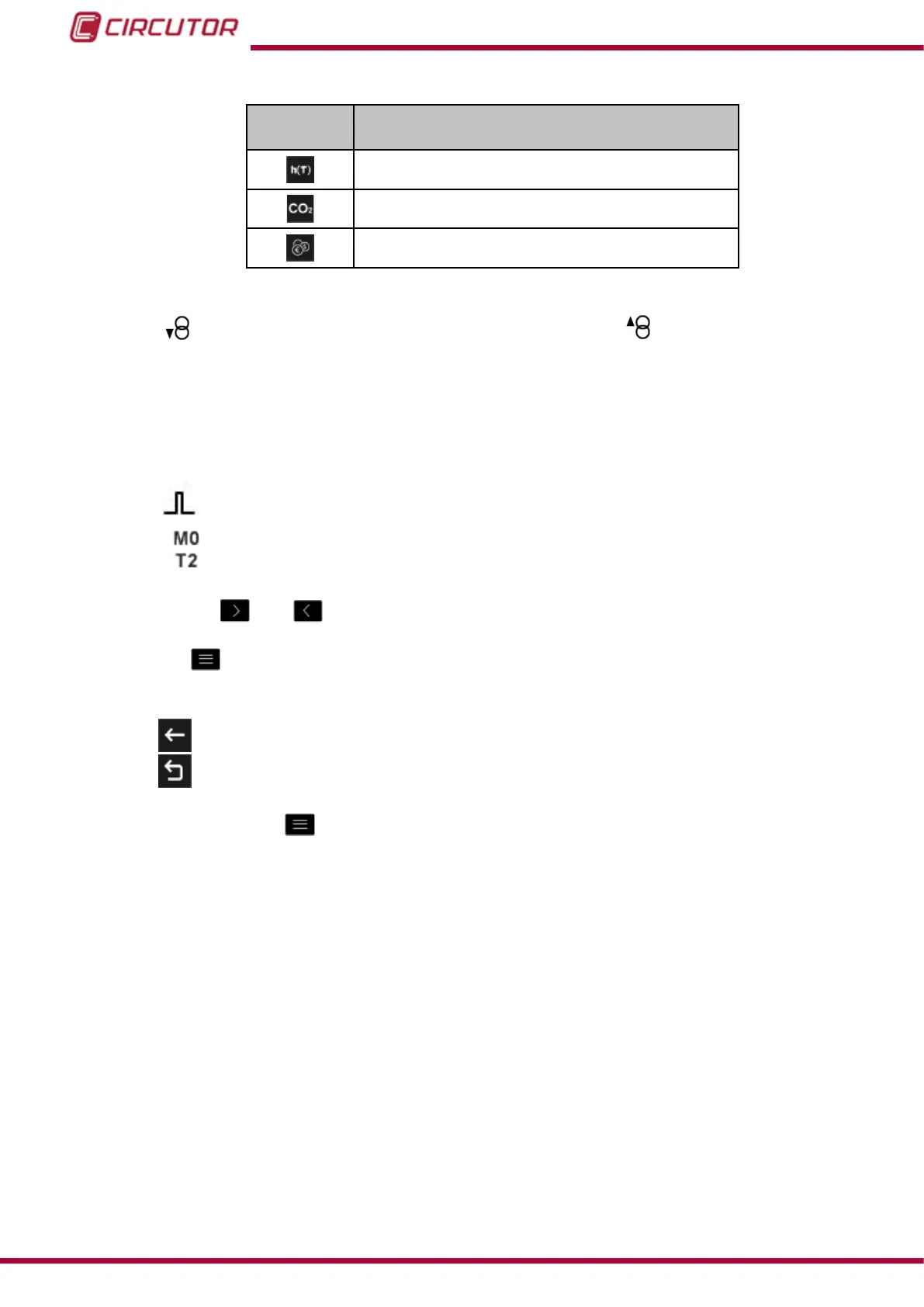

Table 18 ( Continuation): Incremental parameters (display 4 parameters).
Icon
Display 4 parameters
Incremental parameters
Active tariff hours
Active tariff CO
2
emissions
Cost of active tariff
(1)
The following icons appear for all these parameters on the screen:
Indicating that the parameter refers to consumed or generated energy.
If the 2 icons light up at the same time, it means the installation is not properly connect-
ed.
(2)
The value of the energy parameters is saved in the non-volatile memory every minute.
If there is a transistor digital output or input, programmed in impulse mode, associated with the
variable being displayed, the following will appear:
The icon that indicates that an impulse input or output has been programmed
The module with which the alarm is associated.
The associated output in the module.
Use the keys
and to browse the various parameters.
The lower area menu disappears when selecting the parameter to display.
Press the
key to display the lower area again.
The following icons also appear in the lower area:
Back, returns to the default parameters display screen, Figure 66.
Main Menu, back to the main menu, Figure 25.
If you press the key
while selecting a display parameter, you will enter the parameter
display menu.
86
CVM-B100 - CVM-B150
Instruction Manual
