Before You Begin
You need these tools to install the bracket:
•
No. 1 and No. 2 Phillips screwdrivers
•
Level
You must also install an Ethernet jack for the telephone in the desired location if an Ethernet jack does not
currently exist. This jack must be wired for an Ethernet connection. You cannot use a regular telephone jack.
For more information about phone installation requirements and warnings, see Cisco Desktop Collaboration
Experience Installation, on page 47.
Wall-Mount Components

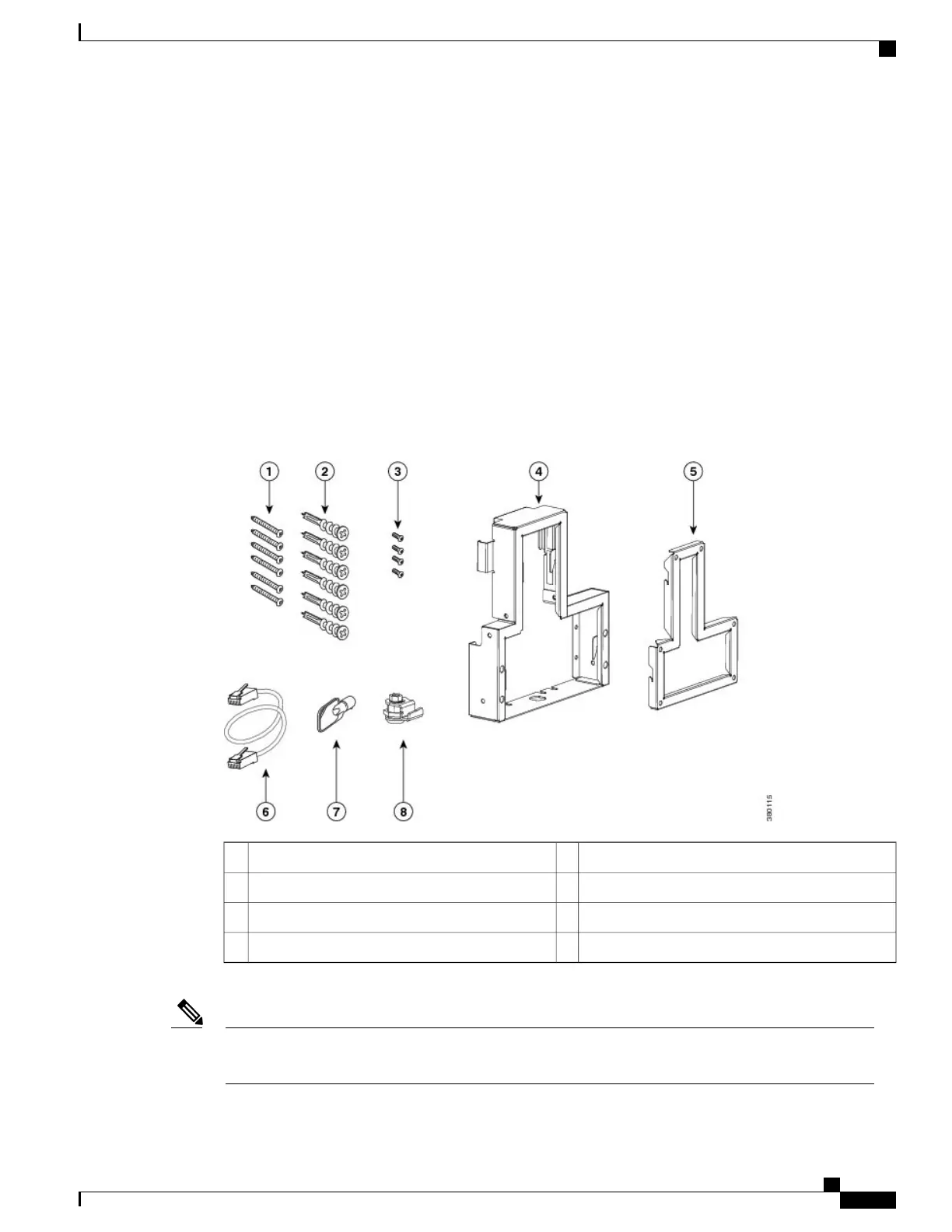

Figure 1: Wall-Mount Kit for Single-Phone Assembly
One wall bracket5Six 8-18 x 1.25 inch Phillips-head screws1
One 6-inch Ethernet cable6Six anchors2
One lock-down key7Four 3 x 6mm machine screws3
One lock8One phone bracket4
The hardware that is included in this wall-mount kit is for drywall installation. For installation onto other
surfaces, such as brick or concrete, you must provide your own hardware.
Note
Cisco Desktop Collaboration Experience DX650 Administration Guide, Release 10.1(1)
61
Install Cisco Desktop Collaboration Experience

Cisco DX650 Specifications

General

Resolution	800 x 480 pixels
Audio	Wideband audio
USB Ports	2 x USB 2.0
Display	7-inch capacitive touchscreen
Camera	HD 720p
Connectivity	Ethernet, Wi-Fi
Bluetooth	Yes
SIP Protocol	Supported
Speakerphone	Full-duplex
Headset Jack	3.5 mm
Network Interfaces	10/100/1000 Ethernet
Supported Protocols	SIP
Codecs	G.722
Power over Ethernet (PoE)	Yes, IEEE 802.3af
Weight	2.2 lbs
