Access call information while using the web interface

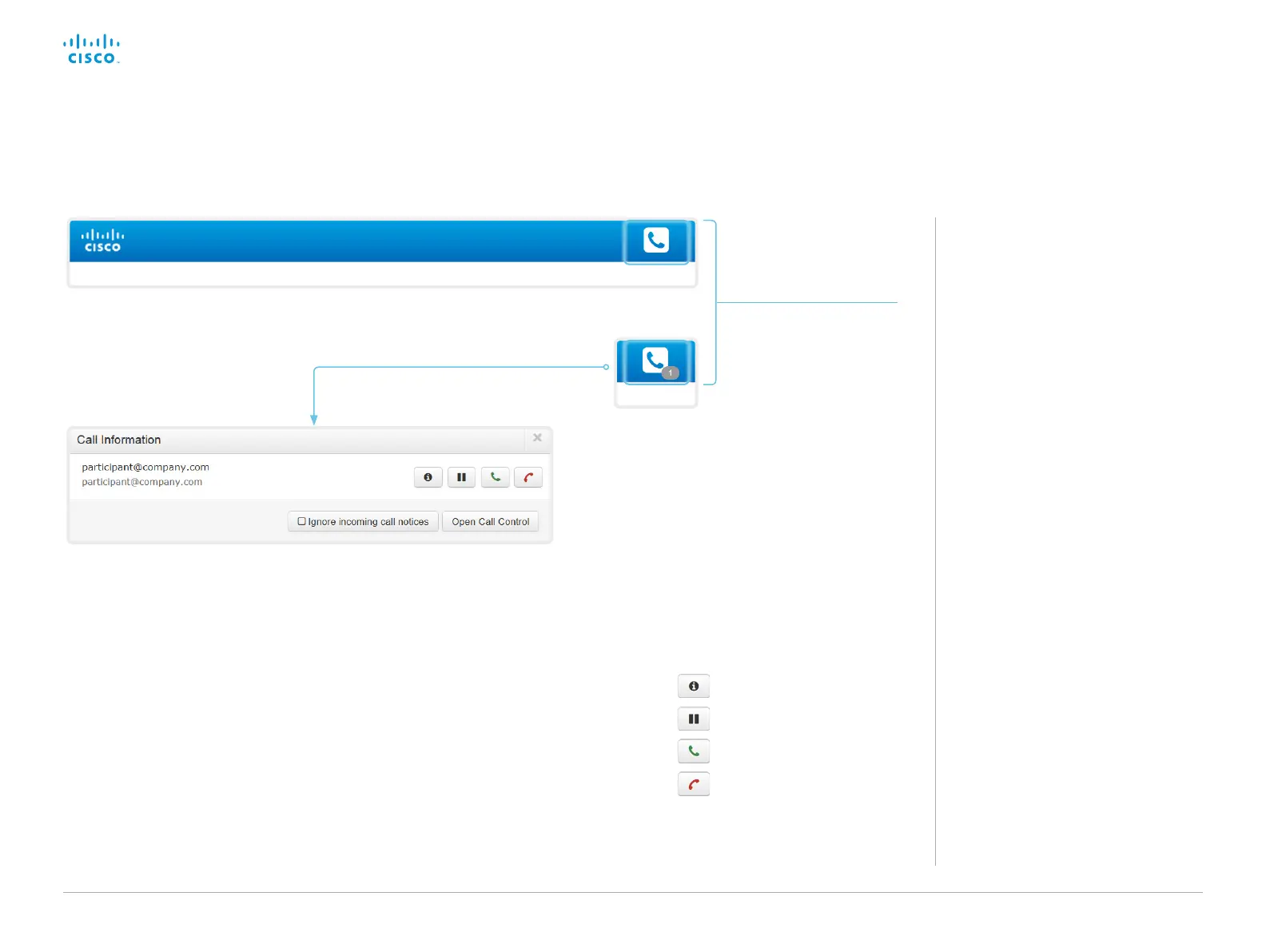

About the call state indicator
The call state indicator shows whether
the system is in a call or not, and how
many calls it is engaged in. You may also
be notified about incoming calls.
The call state indicator is available on all
pages except the Call Control page.
Call state indicator
The badge indicates the
number of active calls. If
the system is idle, there is
no badge.
Click the indicator to
get more details about
connected calls.
Open the Call Information
window
Click the Call state indicator to open
the Call Information window manually.
As default, the Call Information window
pops up automatically when the video
system receives a call.
Switch incoming call
notifications on or off
Click Ignore incoming call notices,
to decide whether or not the Call
Information window should pop up
automatically when the video system
receives a call.
When the check box is checked, the
Call Information window will not open
automatically.
Open the Call Control page
Click Open Call Control to go straight
to the Call Control page.
Control the call(s)
Relevant control buttons appear in
the Call Information window. Use the
buttons to:
Show call details
Put the call on hold
Answer the call
Disconnect the call
Introduction
Configuration
Peripherals
Maintenance
System settings
Appendices

Appendices

Cisco TelePresence SX80 Specifications

General

Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.262, H.263, H.264, H.265
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Voice codecs	G.711, G.722, G.722.1, G.729ab
Noise reduction	Yes
HDMI ports quantity	5
DVI-D ports quantity	1
USB 2.0 ports quantity	2
Product color	Silver
Rack capacity	1U
Number of persons	0 person(s)
Analog signal format system	NTSC, PAL
Security algorithms	HTTPS, SSH
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	SIP, H.323, ISDN, TCP/IP, DHCP, QoS
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Sensor type	-
Image sensor size	- \

Weight and Dimensions

Depth	309.8 mm
Width	442 mm
Height	44 mm
Weight	3650 g
