Sign in to the web interface and navigate to Maintenance >
User Interface Screenshots.

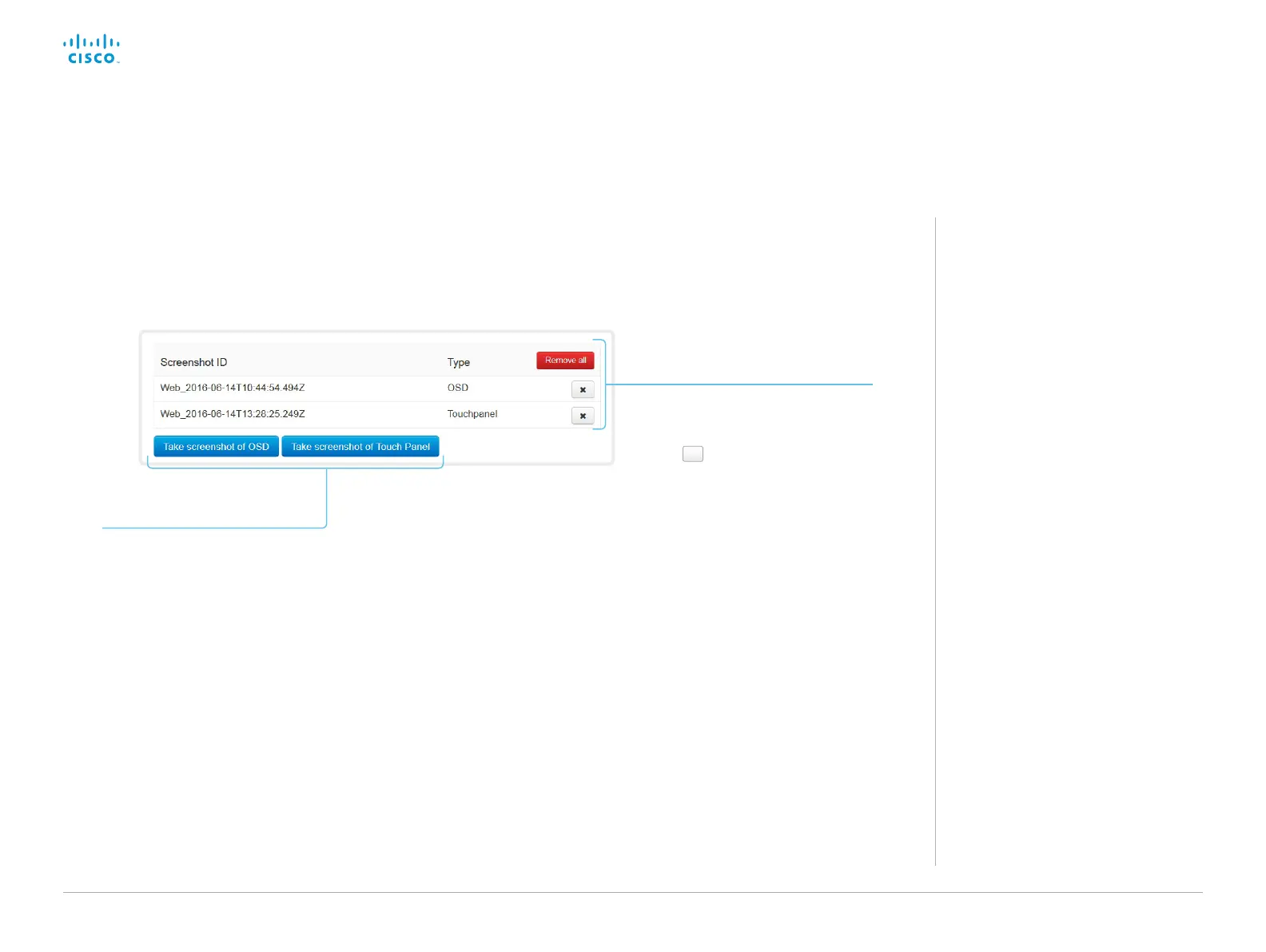

Capture user interface screenshots
Capture a screenshot
Click Take screenshot of Touch Panel to
capture a screenshot of the Touch controller,
or click Take screenshot of OSD to capture a
screenshot of the on-screen display.
The screenshot displays in the area below
the buttons. It may take up to 30 seconds
before the screenshot is ready.
All captured snapshots are included
in the list above the buttons. Click the
screenshot ID to display the image.
Delete screenshots
If you want to delete all screenshots,
click Remove all.
To delete just one screenshot, click
the
×
button for that screenshot.
About user interface
screenshots
You can capture screenshots both of
a Touch controller that is connected to
the video system, and of the on-screen
display (menus, indicators and messages
on the main display).
Introduction
Configuration
Peripherals
Maintenance
System settings
Appendices

Maintenance

Cisco TelePresence SX80 Specifications

General

Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.262, H.263, H.264, H.265
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Voice codecs	G.711, G.722, G.722.1, G.729ab
Noise reduction	Yes
HDMI ports quantity	5
DVI-D ports quantity	1
USB 2.0 ports quantity	2
Product color	Silver
Rack capacity	1U
Number of persons	0 person(s)
Analog signal format system	NTSC, PAL
Security algorithms	HTTPS, SSH
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	SIP, H.323, ISDN, TCP/IP, DHCP, QoS
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Sensor type	-
Image sensor size	- \

Weight and Dimensions

Depth	309.8 mm
Width	442 mm
Height	44 mm
Weight	3650 g
