Cisco TelePresence SX80 Administrator Guide
Local layout control
Sign in to the web interface and navigate to Call Control.
About layouts
The term layout is used to describe
the various ways the videos from
the conference participants and a
presentation can appear on the screen.
Different types of meetings may require
different layouts.

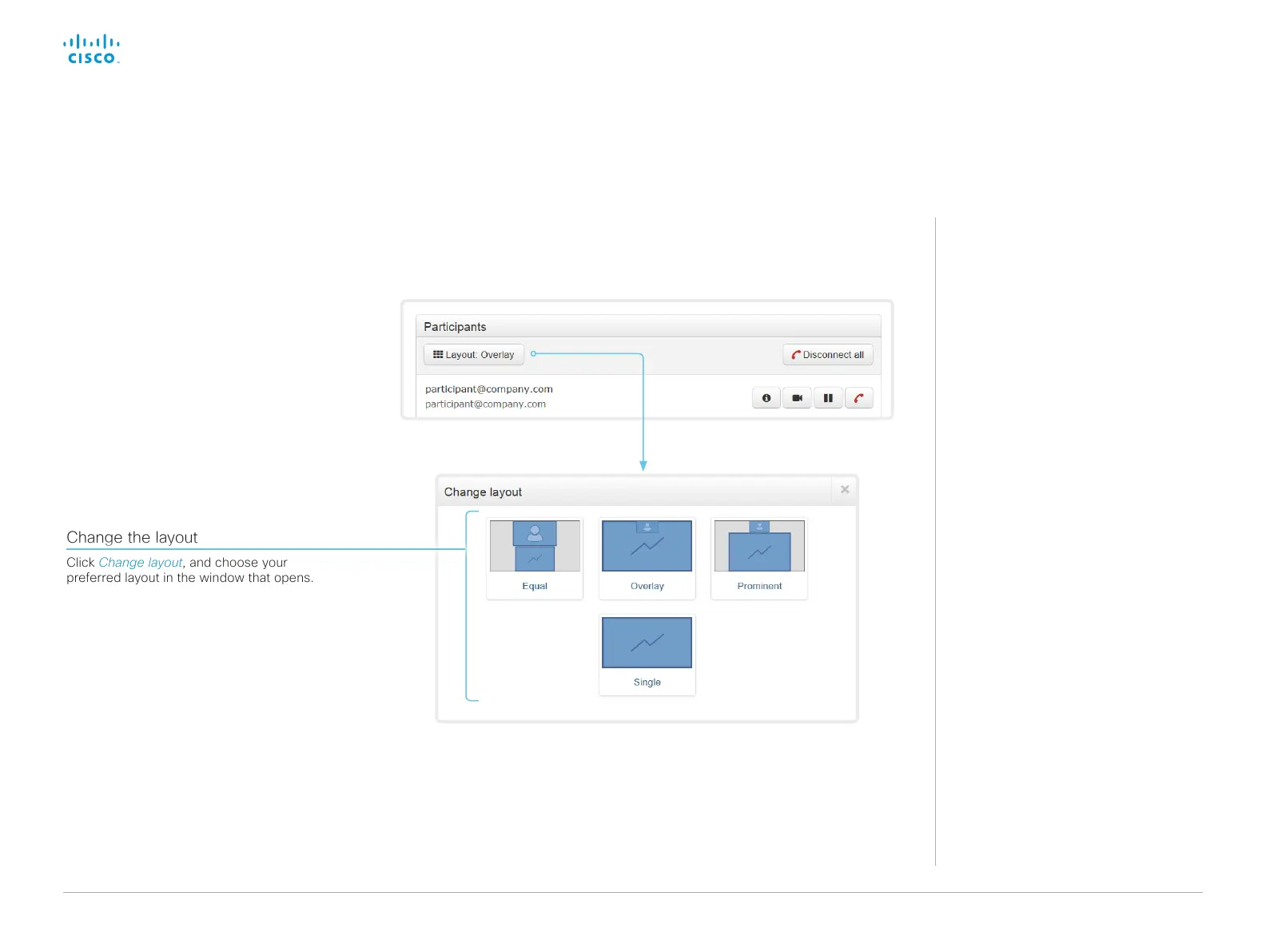

Change the layout
Click Change layout, and choose your
preferred layout in the window that opens.
The set of layouts to choose from
depends on the system configurations.
You may change the layout both when idle
and in a call.
Introduction
Configuration
Peripherals
Maintenance
System settings
Appendices

Appendices

Cisco TelePresence SX80 Specifications

General

Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.262, H.263, H.264, H.265
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Voice codecs	G.711, G.722, G.722.1, G.729ab
Noise reduction	Yes
HDMI ports quantity	5
DVI-D ports quantity	1
USB 2.0 ports quantity	2
Product color	Silver
Rack capacity	1U
Number of persons	0 person(s)
Analog signal format system	NTSC, PAL
Security algorithms	HTTPS, SSH
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	SIP, H.323, ISDN, TCP/IP, DHCP, QoS
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Sensor type	-
Image sensor size	- \

Weight and Dimensions

Depth	309.8 mm
Width	442 mm
Height	44 mm
Weight	3650 g
