Features and benefits
• The codec is compatible with standards-based video
systems without loss of features.
• Operation using Cisco TelePresence Touch 10 user
interface, or with an external control device using the
API (no IR and remote control).
• Simple one-button-to-push to join scheduled
meetings.
• Embedded MultiSite conferencing option that
allows up to four additional participants (individual
transcoding, no external bridge).
• Cisco TelePresence ClearPath packet loss protection
technology.
• Cisco Unified Communications Manager (CUCM)
native support. Requires CUCM version 8.6 or higher.
• The systems support H.323 and SIP with bandwidth
up to 6 Mbps point-to-point.
• Up to 10 Mbps total MultiSite bandwidth.
• Full duplex audio with high-quality stereo sound.
• Video resolution and frame rate up to 1080p60.
• Support for 1080p30 content and 1080p60 video
simultaneously.
• Full application programming interface (API).
• Ability to connect up to four HD sources and eight
microphones.
• Ability to connect to up to three monitors or output
devices.
• Professional-grade connectors.
• One rack unit (1RU) high, rack-mountable.
SX80 at a glance

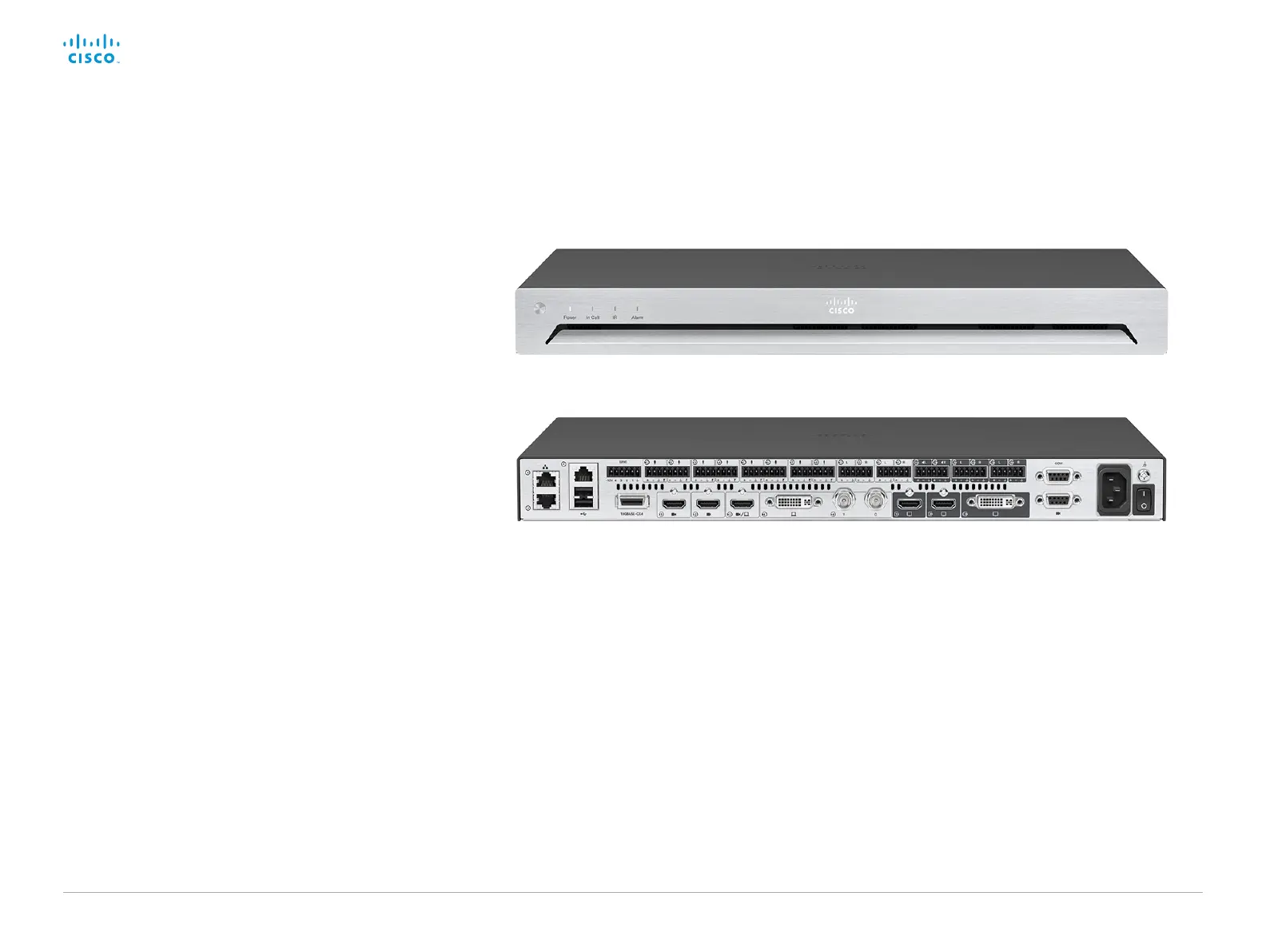

The Cisco TelePresence SX80 codec provides a powerful
and flexible platform for creating video collaboration
experiences. SX80 was built with the integrator in mind,
enabling flexibility and creativity for customized video
collaboration rooms. SX80 acts as the audio and video
engine to incorporate high-definition video collaboration
applications into large meeting rooms, boardrooms and
purpose-built or vertical application rooms.
SX80 delivers up to a 1080p60 end-to-end high definition
(HD) video and offers industry-first support for H.265 (in SIP
calls). The codec offers a rich input and output set, flexible
media engine, and support for three screens enable various
use cases.
Cisco offers SX80 as a single unit, and in the following
integrator packages:
• SX80 and Precision 40 (PrecisionHD 1080p4xS2) camera
for smaller room scenarios
• SX80 and Precision 60 camera, for lager room scenarios
with premium image quality
• SX80 and SpeakerTrack 60 dual camera system, which
features a direct, fast switching approach for active
speaker tracking
SX80 also has basic support for the PrecisionHD 1080p12x
camera (camera software upgrade not supported natively by
codec, Daisy chaining not supported).
Introduction
Configuration
Peripherals
Maintenance
System settings
Appendices

Introduction

Cisco TelePresence SX80 Specifications

General

Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.262, H.263, H.264, H.265
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Voice codecs	G.711, G.722, G.722.1, G.729ab
Noise reduction	Yes
HDMI ports quantity	5
DVI-D ports quantity	1
USB 2.0 ports quantity	2
Product color	Silver
Rack capacity	1U
Number of persons	0 person(s)
Analog signal format system	NTSC, PAL
Security algorithms	HTTPS, SSH
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	SIP, H.323, ISDN, TCP/IP, DHCP, QoS
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Sensor type	-
Image sensor size	- \

Weight and Dimensions

Depth	309.8 mm
Width	442 mm
Height	44 mm
Weight	3650 g
