D15328.04 SX80 Administrator Guide CE8.2, OCTOBER 2016. www.cisco.com — Copyright © 2016 Cisco Systems, Inc. All rights reserved.
65
Cisco TelePresence SX80 Administrator Guide

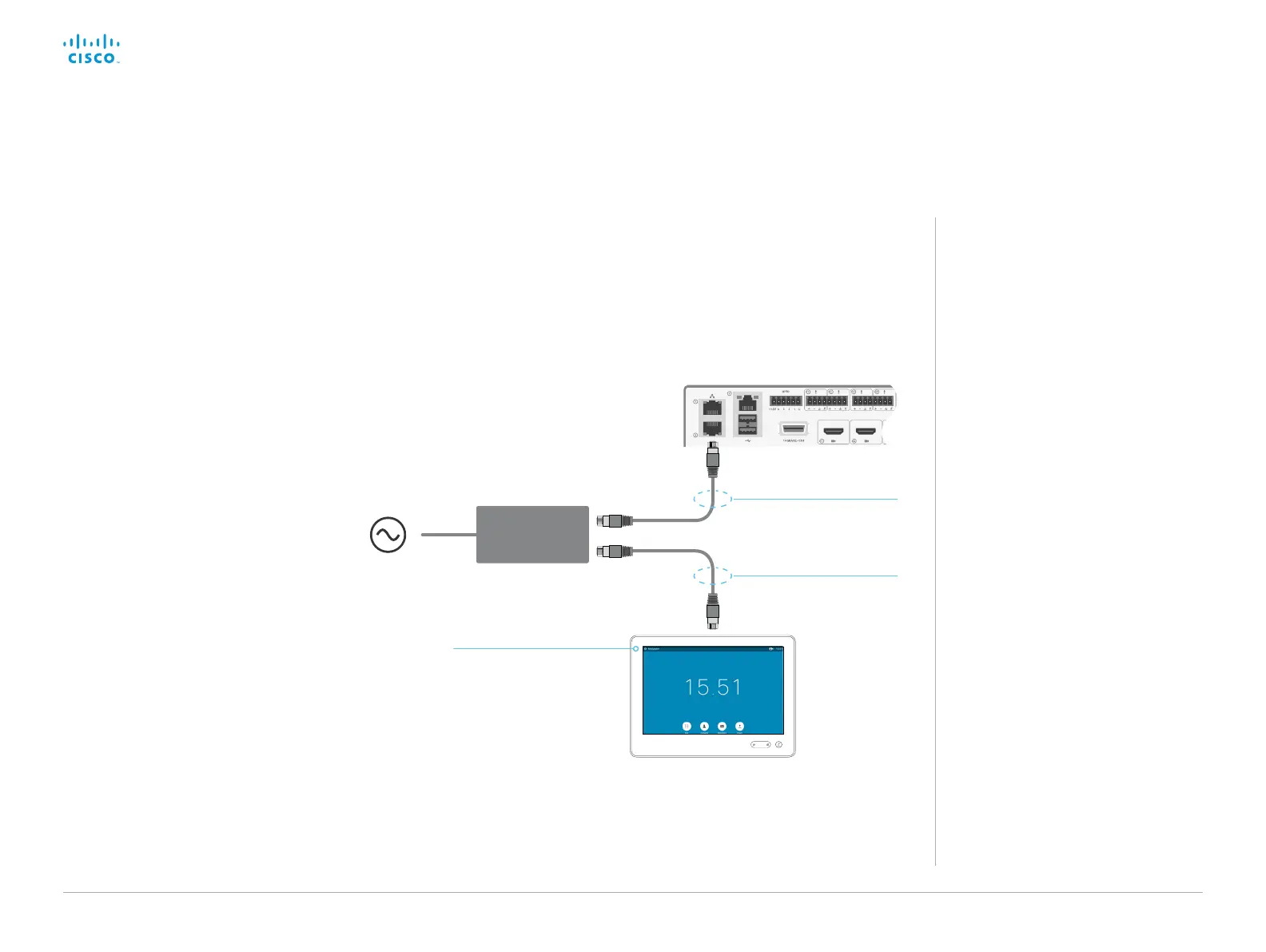

Connect Touch 10 directly to the codec
Connect Touch 10 to the codec’s 2
nd
or
3
rd
Ethernet connector as illustrated.
Note that SX80 does not provide Power
over Ethernet (PoE), so you need a mid-
span PoE injector to power Touch 10.
Touch 10 set-up
Once Touch 10 is connected to power,
the set-up procedure begins. Follow the
instructions on screen.
If Touch 10 needs software upgrade,
new software will be downloaded
from the codec and installed on the
unit automatically as part of the set-up
procedure. Touch 10 restarts after the
upgrade.
In order to use Touch 10 as user interface for SX80, Touch 10
must either be directly connected to the codec as described
on this page, or paired to the codec via the network (LAN) as
described on the next page. The latter is referred to as remote
pairing.
Connect the Touch 10 controller
(page 1 of 3)
About the SX80 network
ports
SX80 has three network ports. Network
port 1 is reserved for the connection to
LAN, while Network ports 2 and 3 should
be used for peripherals like cameras and
Touch 10.
If you have more than two peripheral units
requiring an Ethernet connection, you
can insert an Ethernet switch between
Network port 2 or 3 and the peripherals.
The Ethernet connector
is behind the lid at the
rear of Touch 10.
Standard Ethernet cable
PoE rated Ethernet cable
Power
• 100-240 VAC
• 50/60 Hz
PoE
injector
AP
SWITCH
Contact information
The codec’s name or
address is displayed
in the status bar when
Touch 10 is successfully
connected to the codec.
