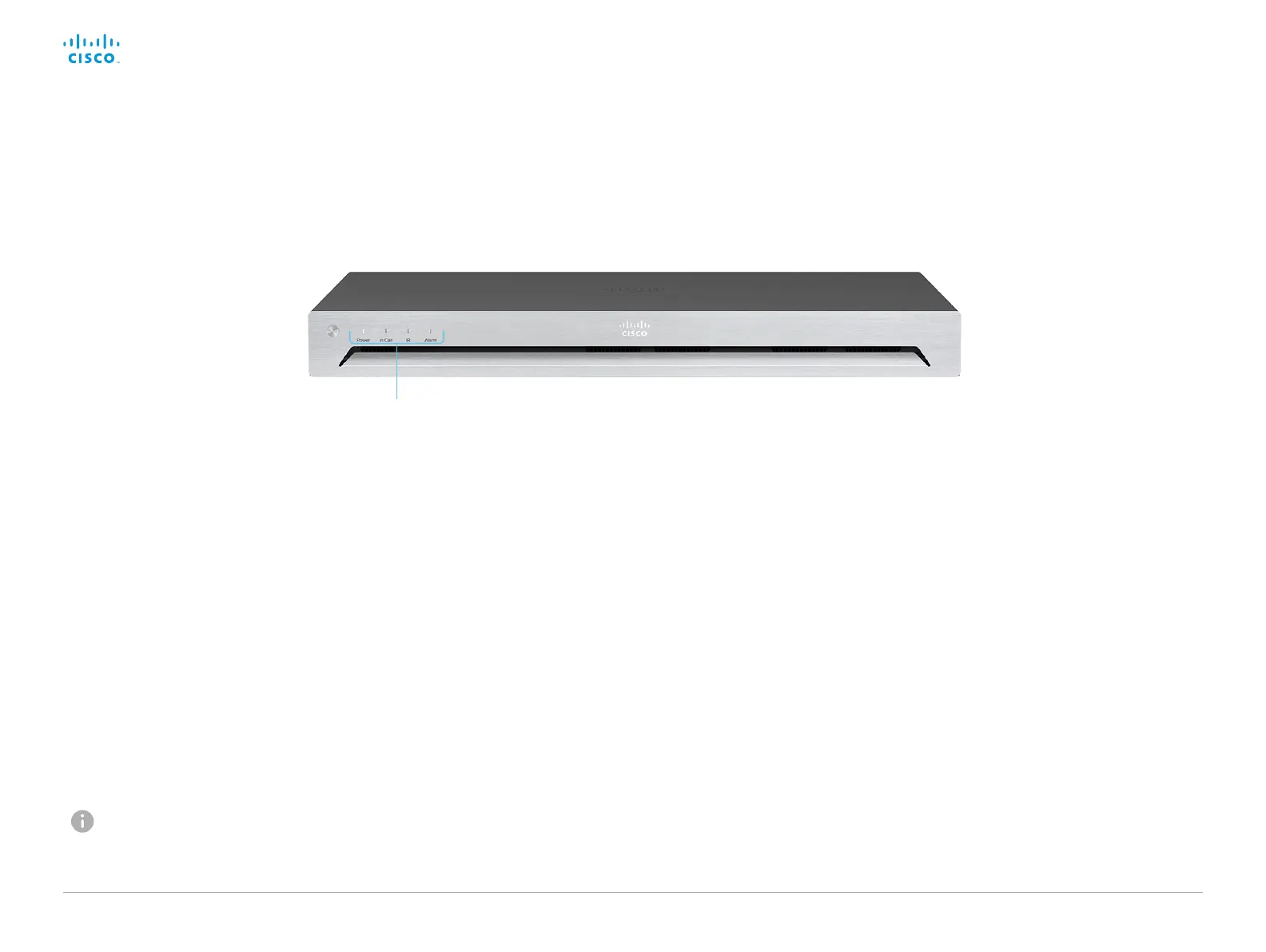

Front panel LEDs
Power:
Blinks when the system is starting up.
Steady light when the codec is ready for use.
Pulsates when the codec is in standby.
In Call:
Steady light when in call.
IR:
Not in use.
Alarm:
Lights steady when a serious error occurs.
Front panel LEDs
More information about the codec’s physical interface,
including the connector panel and LEDs, are described in
the Physical interface guide.
Introduction
Configuration
Peripherals
Maintenance
System settings
Appendices

Introduction

Cisco TelePresence SX80 Specifications

General

Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Video formats supported	H.261, H.262, H.263, H.264, H.265
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Voice codecs	G.711, G.722, G.722.1, G.729ab
Noise reduction	Yes
HDMI ports quantity	5
DVI-D ports quantity	1
USB 2.0 ports quantity	2
Product color	Silver
Rack capacity	1U
Number of persons	0 person(s)
Analog signal format system	NTSC, PAL
Security algorithms	HTTPS, SSH
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	SIP, H.323, ISDN, TCP/IP, DHCP, QoS
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Sensor type	-
Image sensor size	- \

Weight and Dimensions

Depth	309.8 mm
Width	442 mm
Height	44 mm
Weight	3650 g
