The briefing room set-up is designed to provide easy
set up, management and use of a room for education,
training or similar.
The set-up is tailored around the following room modes:
• Local Presenter (the presenter is in the room)
• Remote Presenter (the presenter is calling in)
• Discussions (for discussions between different sites
with a local presenter in the room)
The briefing room is available as a room type template,
which means that the required configurations are pushed
automatically to the codec when you select the template.
In order for these configurations to match the room, it
is important that the room is set up correctly, and that
cameras and displays are connected exactly as specified
in this chapter.
Required equipment
• Codec: SX80 codec with Touch 10.
• Three displays: The displays are referred to as
Presentation display, Remote presenter display, and
Remote audience display (see blue print to the right).
• Two cameras: The cameras are referred to as
Audience camera, and Presenter camera (see
blue print to the right). We recommend the Cisco
TelePresence SpeakerTrack 60 camera assembly as
Audience camera, but a single camera may also be
used. We recommend Cisco TelePresence Precision
60 as Presenter camera.
• Microphones: We recommend the Cisco TelePresence
Ceiling Microphone for good coverage of the room.
Other microphone solutions can also be used.
• Speakers: We recommend good quality stereo
speakers placed next to the Presentation display and
the Remote presenter display.

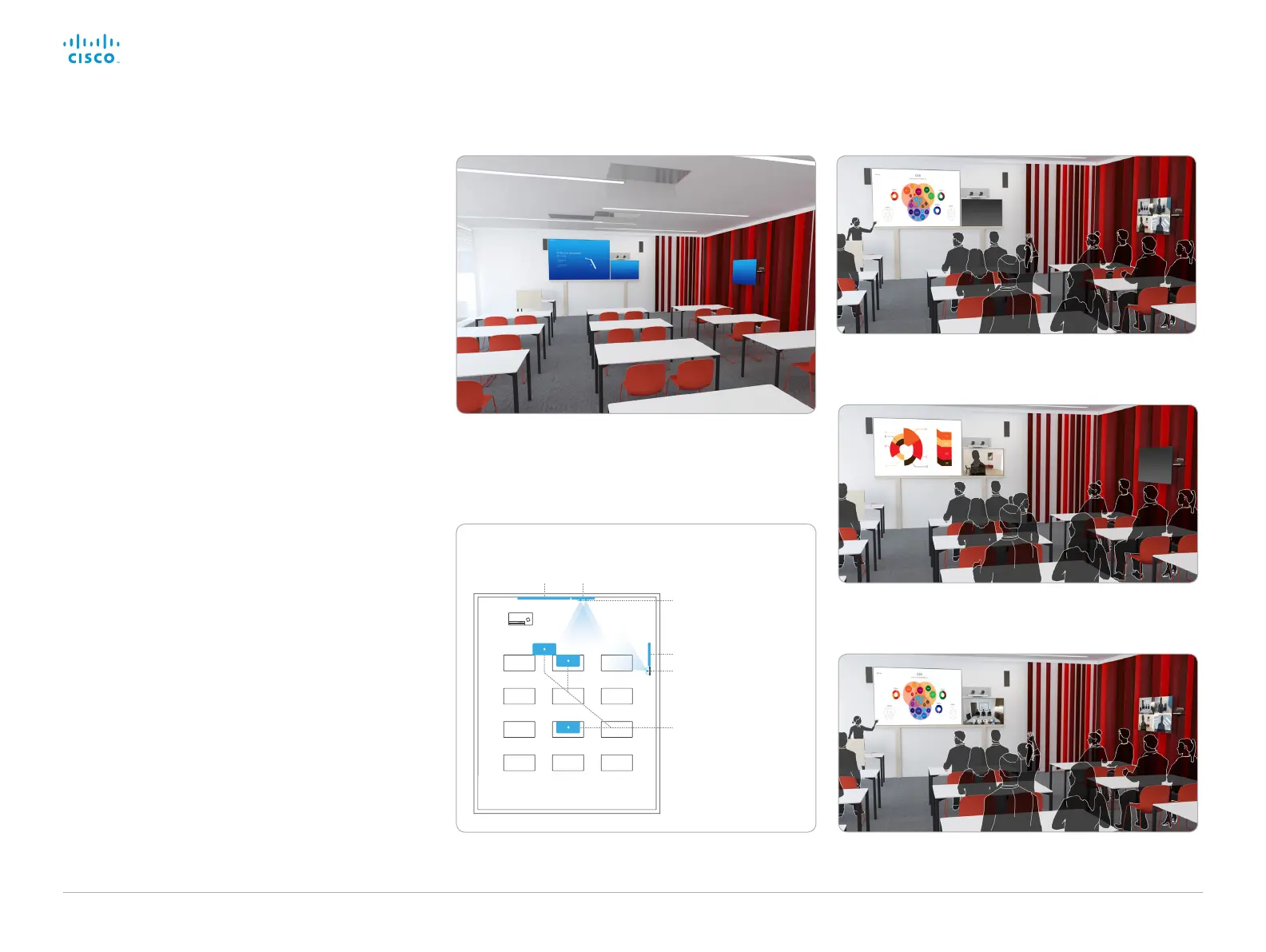

Microphones
Presentation
display
Remote
presenter
display
Audience camera
Presenter camera
Remote audience display
Local Presenter
Remote Presenter
DiscussionsBriefing room blue print
Briefing room set-up
Briefing room set-up (page 1 of 3)
