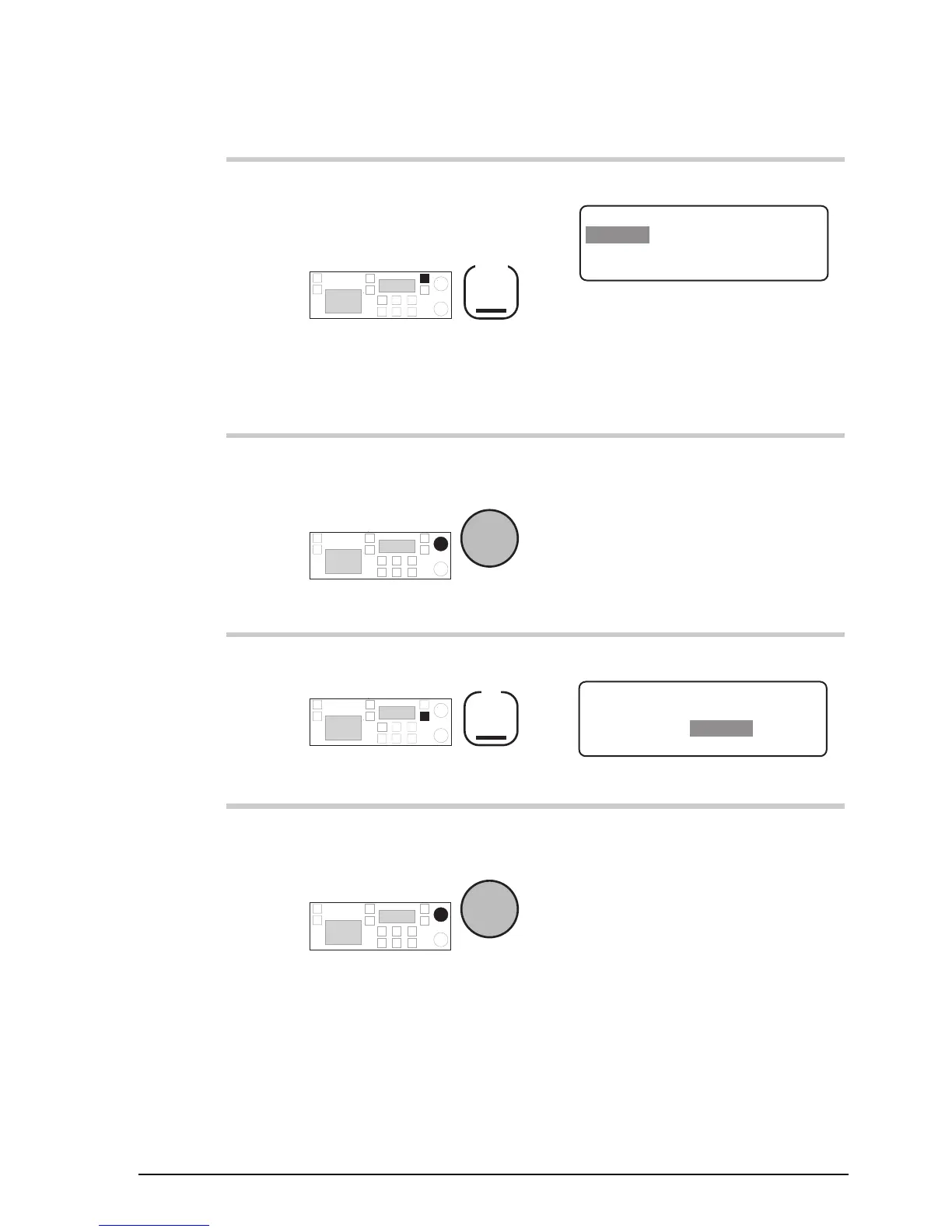

Setup procedures (part 1)
9390 Reference manual
5-27
Action
Notes
3.
On the master transceiver
you are cloning from,
repeatedly press
Mode
until you see the display
for Setup mode.
The display shows:
EXIT
SETUP MENU
1- Scan
-
2–Call
ENTER
3–Config
4–More
1/2
4.
Select ‘
4-More
’ by
rotating
Select
5.
Press
F2
The display shows:
EXIT
SETUP MENU
1–T
ime
2–Password
ENTER
4–More
2/2
3–Clone
6.
Select ‘
3-Clone
’ by
rotating
Select
100
