Codan 9390 User Manual

Appendix
9390 Reference manual 11-11
Setting up the RS-232/I
2
C Interface
If you need assistance in setting up the interface, contact your
Codan agent.

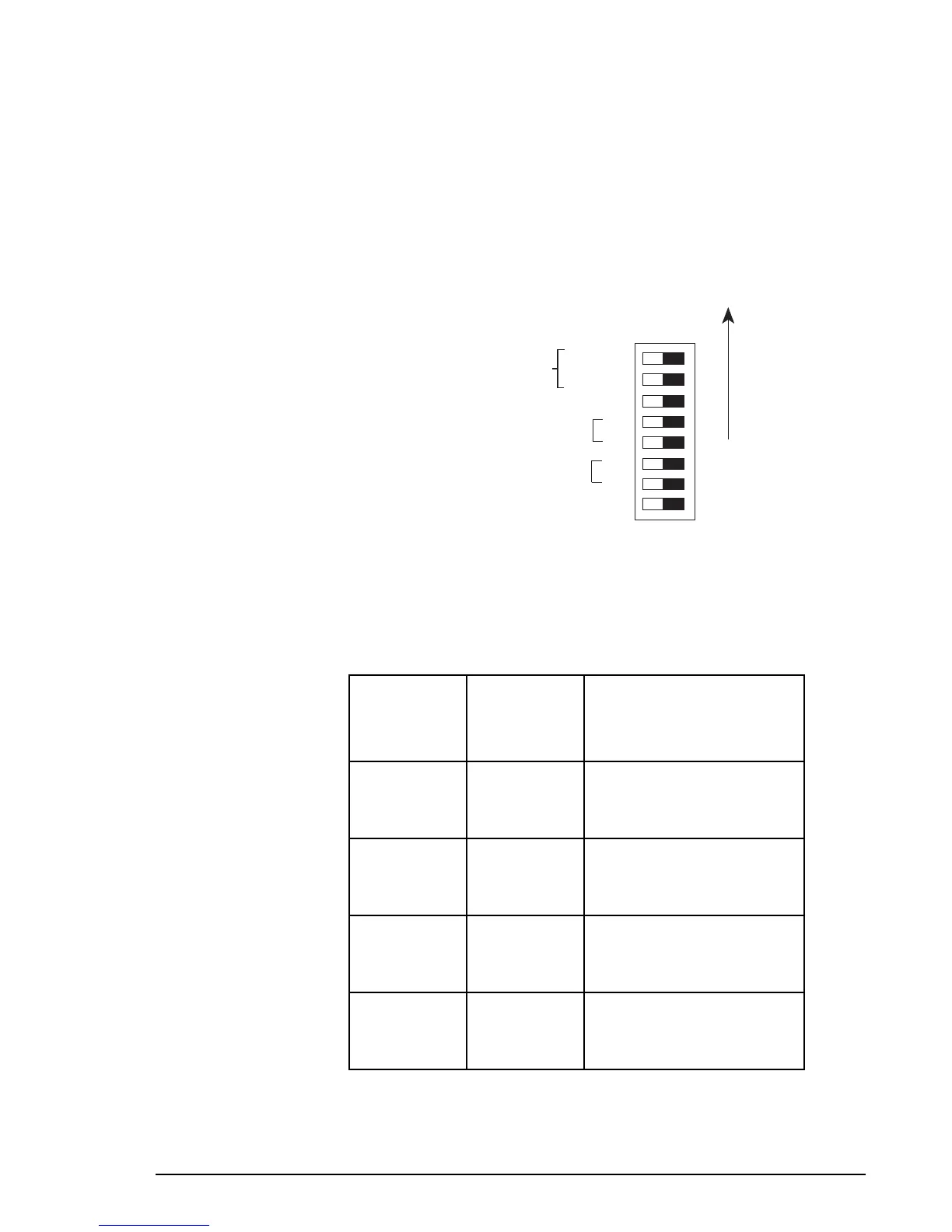

The internal switches are labelled on the inside of the cover to
the interface as follows:
2
GPS
COMP
I C
A
B
A
B
NOT USED
Off to
enable
GPS
COMP
EDGE OF BOARD
Switches may only mark the
On
or
Off
position.
The table below shows the possible baud rate settings for
either pair of
GPS A/B
and
COMP A/B
switches:
GPS A or
COMP A
switch
GPS B or
COMP B
switch
Setting
on on 9600 baud
(no parity, 1 stop bit)
off on 4800 baud
(no parity, 1 stop bit)
on off 2400 baud
(no parity, 1 stop bit)
off off 1200 baud
(no parity, 1 stop bit)
