Compaq ProLiant ML570 - Switches; System Maintenance Switch Settings (SW1)

4-6 Compaq ProLiant ML570 Server
Switches
This section provides information about internal switches for the ProLiant ML570 server.
System Maintenance Switch Settings (SW1)
Figure 4-5 shows the system maintenance switchbank and the default settings for the
ProLiant ML570 server. Table 4-5 describes the peripheral board switch settings.
1
2
3
4
5
6
off

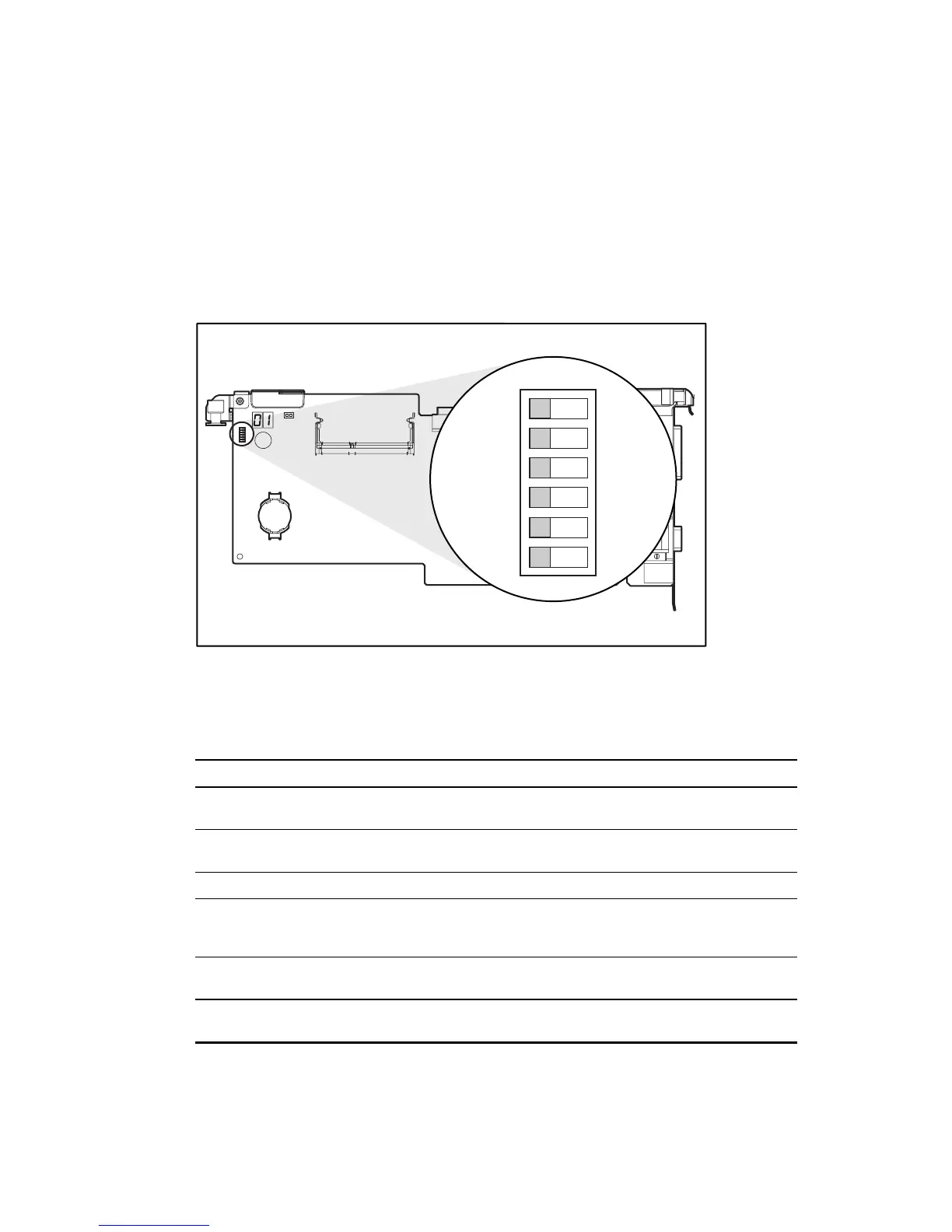

Figure 4-5. Peripheral board configuration (maintenance) switchbank (SW1) location and
default settings
Table 4-5
Peripheral Board Configuration (Maintenance) Switchbank (SW1) Settings
Switch Function Open (OFF) Default Position Closed (ON) Position
1 Video disable override Onboard integrated video
is enabled
Onboard integrated video
is disabled
2 Lock configuration Configuration unlocked and
can be altered
Locks system configuration
and cannot be altered
3 Tower-to-rack conversion Tower configuration Rack-mount configuration
4 Diskette boot feature Diskette boot can be
changed through system
configuration utility
Diskette drive is enabled for
booting, overriding the
system configuration utility
5 Power on password Power on password feature
is enabled
Power on password feature
is disabled
6 Maintenance NVRAM is validated;
configuration saved
NVRAM is invalidated;
configuration erased
