Removable Media Blanking Panel
To remove a removable media blanking panel:
1. Perform the preparation procedures. See “Preparation Procedures” earlier in this chapter.
2. Remove the access panel. See “Access Panel (Tower and Rack)” earlier in this chapter.
3. Slide the green locking lever
on the outside of the removable media area to release the
blanking panel.
4. Pull the removable media blanking panel
from the removable media area.
1
2

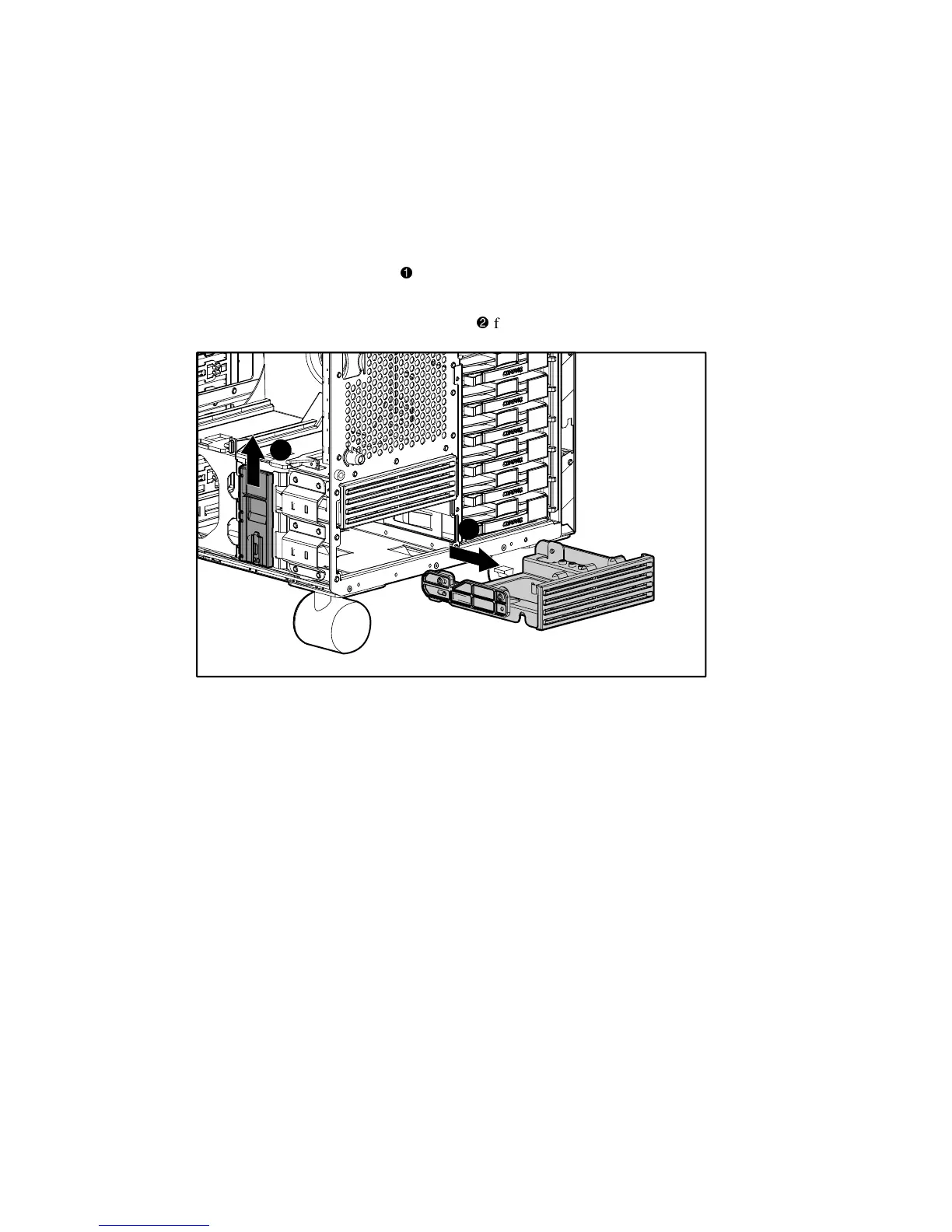

Figure 2-17. Removing a removable media blanking panel from the removable media area
Reverse steps 1 through 4 to install a removable media blanking panel.
