4-8 Compaq ProLiant ML570 Server
Processor Configuration Switch (SW4) and System ID Switch (SW6)
CAUTION: The system ROM determines proper processor speeds. This section shows only the
location of the switches and the default settings of each. These default settings must be set
exactly as shown for proper operation of the ROM.
Figure 4-6 shows the default settings of the processor core frequency switch that support 750-MHz
processors. Table 4-6 lists the processor core frequency switch settings for the ProLiant ML570 server
with processor speeds ranging from 700- to 900-MHz.
off
1
2
3
4

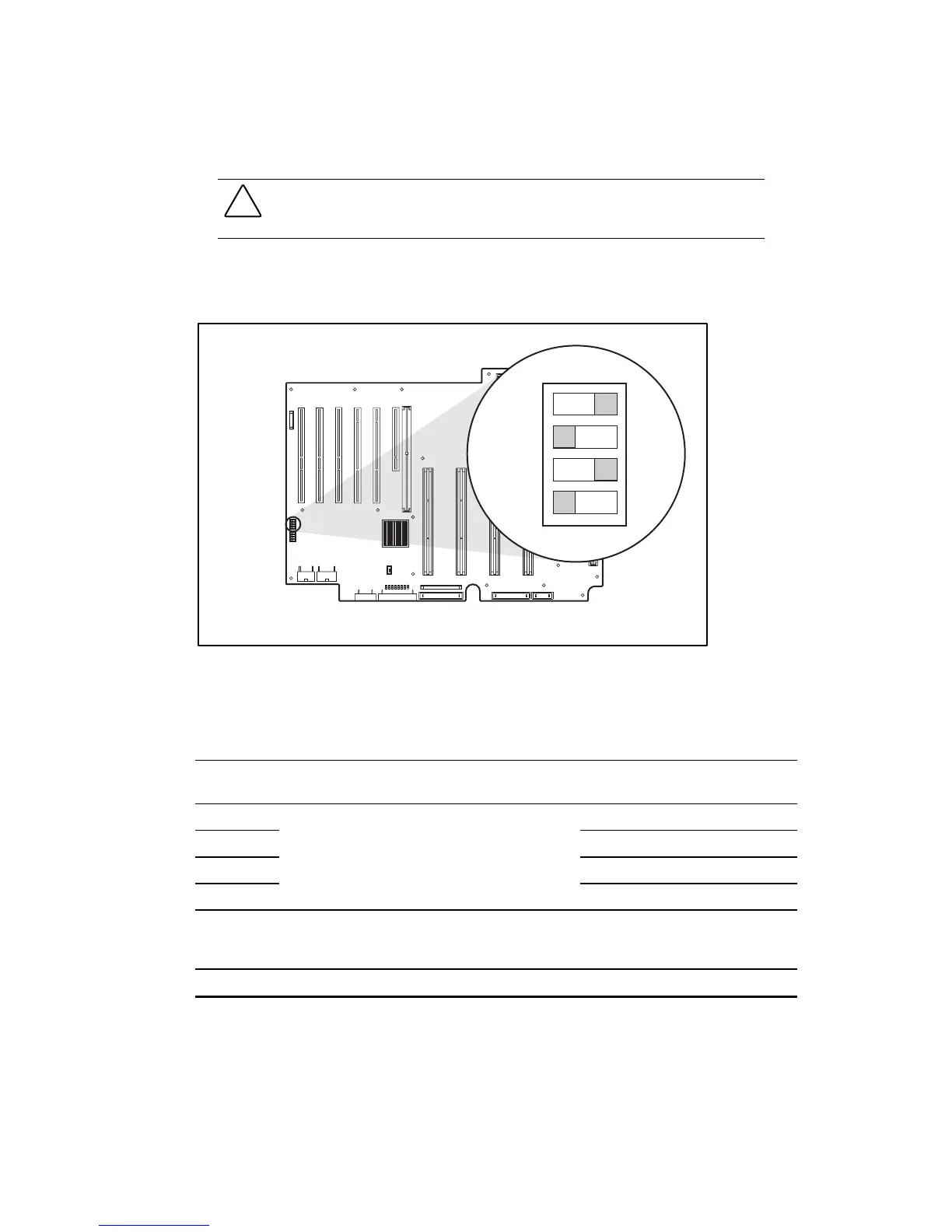

Figure 4-6. Location and default setting for core frequency switch (SW4) supporting 700-MHz
processors (example)
Table 4-6
Processor Configuration Switch (SW4) 100-MHz Bus Speed
Position Function
Processor Core Speed Settings
700-MHz
1On
2Off
3On
4
Sets system bus to processor core frequency ratio
Off
Note: Compaq makes no representation or warranty that processors operating at any of the speeds shown
are available at any time. Therefore, processor core speeds shown are not necessarily representative of
future processors.
Note: For processors 850-MHz or higher, it is not necessary to change switch settings
