Compaq ProLiant ML570 User Manual

Connectors, Switches, and LED Status Indicators 4-17
RJ-45 Network Connector Status LED Indicators
Two RJ-45 network connector LED indicators are located on the rear of the ProLiant ML570

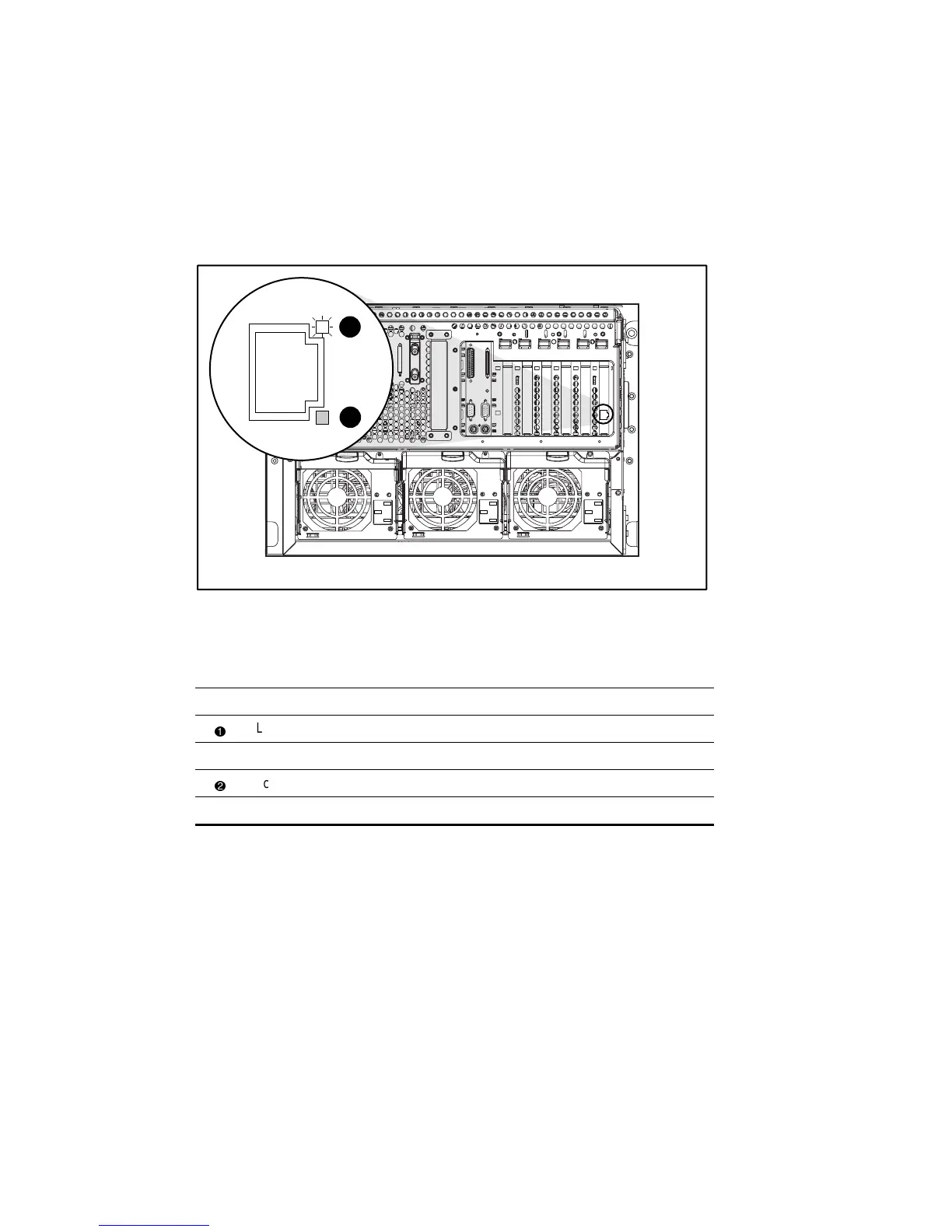

server. These LED indicators show the network connection condition of the server. Figure 4-13
shows the location of the RJ-45 network connector LED indicators and Table 4-13 identifies the
status and conditions of both LED indicators.
1
2
Figure 4-13. RJ-45 network connector LED indicators location
Table 4-13
RJ-45 Network Connector Status LED Indicators
Item Description Status Condition

Link On Linked to network
Off No network link

Activity On or flashing Network activity present
Off No network activity
