2-56 Compaq ProLiant ML570 Maintenance and Service Guide
Insulator Basket
To remove the insulator basket:
1. Perform the preparation procedures. See “Preparation Procedures” earlier in this chapter.
2. Remove the access panel. See “Access Panel (Tower and Rack)” earlier in this chapter.
3. Unsnap the retaining pins
securing the insulator basket to the electronics tray.
4. Lift the insulator basket
from the electronics tray.
2
1

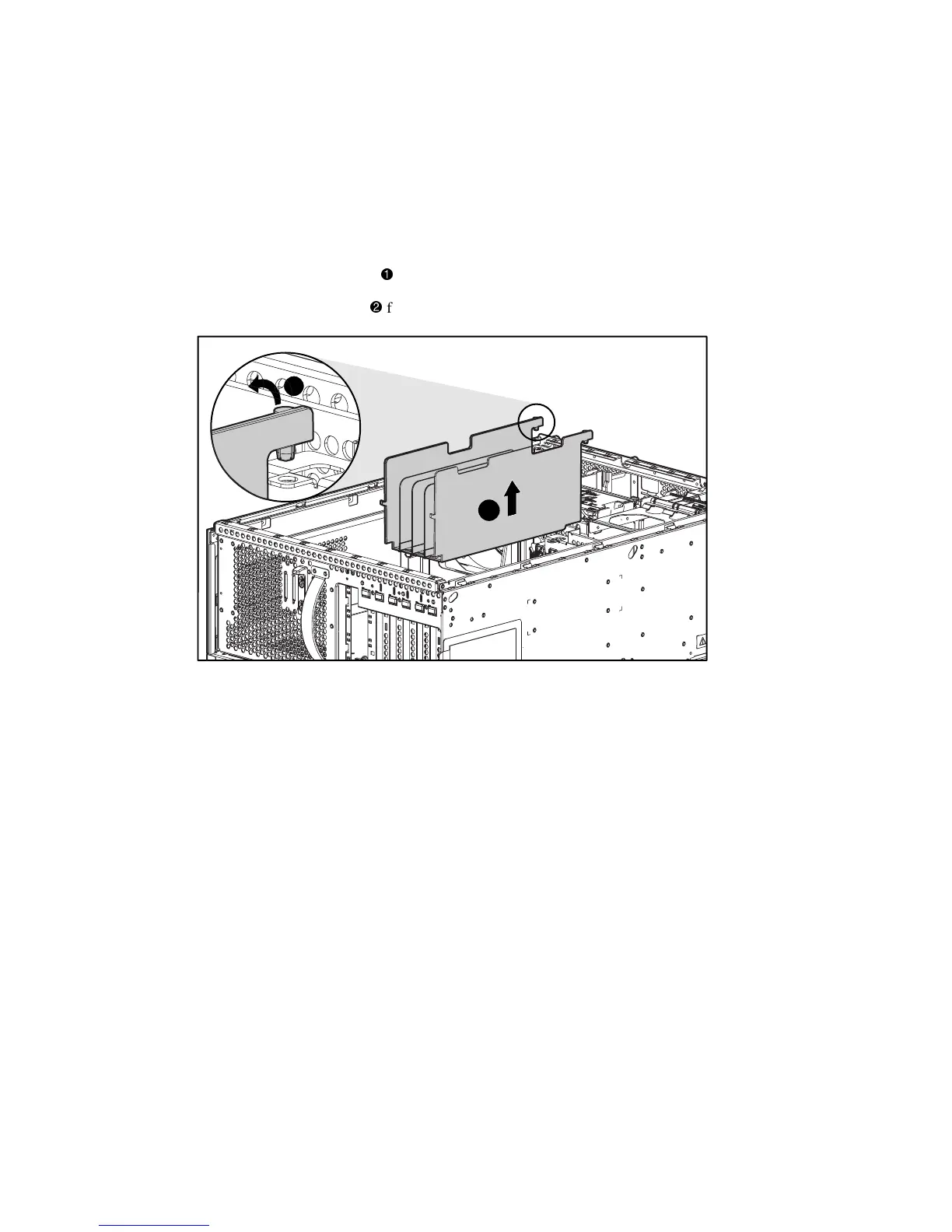

Figure 2-46. Removing the insulator basket
Reverse steps 1 through 4 to replace the insulator basket.
