Removal and Replacement Procedures 2-39
Dual Inline Memory Modules
To remove an SDRAM DIMM:
1. Perform the preparation procedures. See Preparation Procedures earlier in this chapter.
2. Remove the access panel. See Access Panel (Tower and Rack) earlier in this chapter.
3. Remove the memory expansion board. See Memory Expansion Board earlier in
this chapter. Set the board on a sturdy nonconductive surface.
4. Pull both SDRAM DIMM socket latches
outward to release the SDRAM DIMM from
the DIMM socket.
5. Lift out the SDRAM DIMM
.
1
2
1

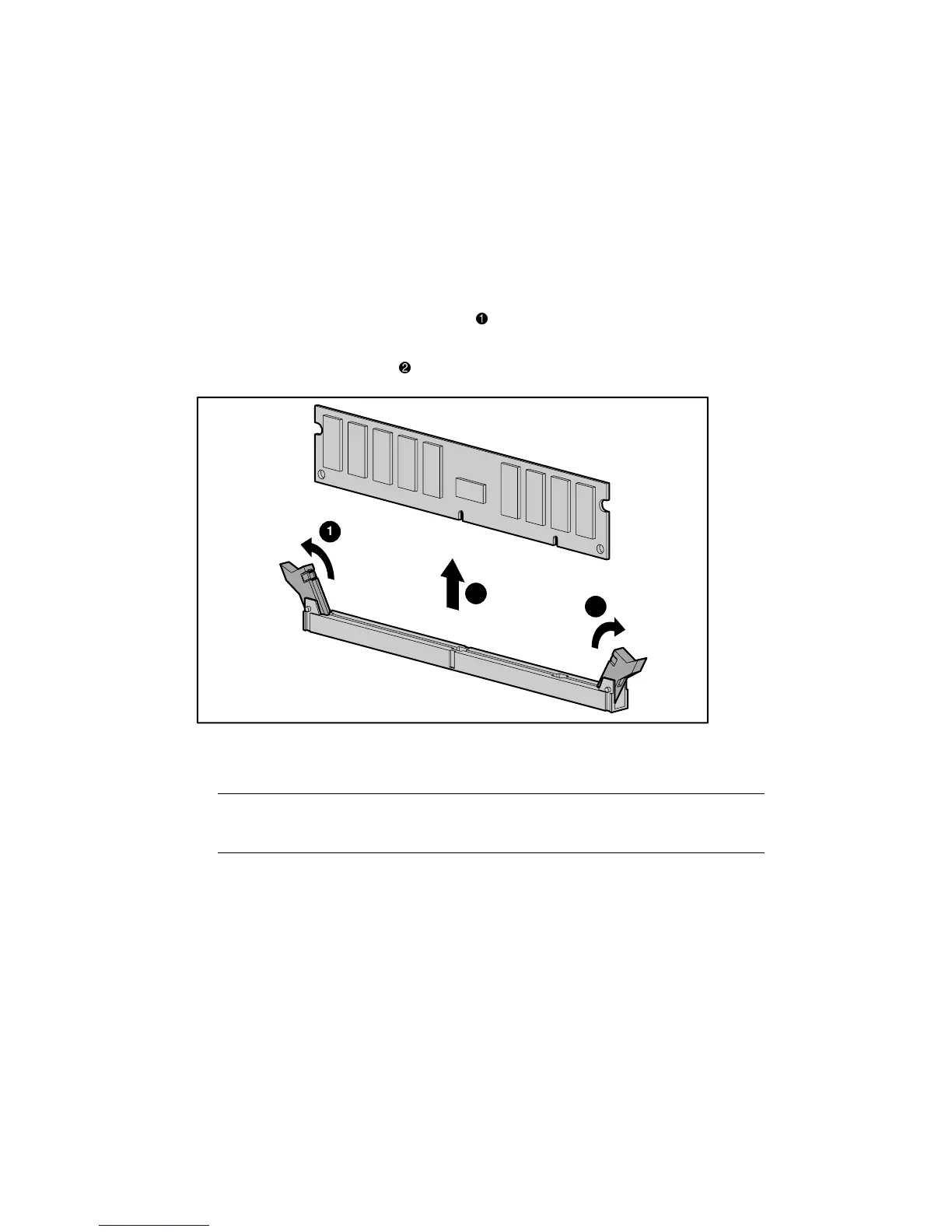

Figure 2-30. Removing an SDRAM DIMM (expansion board removed for clarity)
Reverse steps 1 through 5 to replace an SDRAM DIMM.
IMPORTANT: A memory module can be installed only one way. Be sure to match the two key sockets on
the module with the two tabs on the memory socket. Push the module down into the socket, ensuring
that the module is fully inserted and properly seated.
