2-40 Compaq ProLiant ML570 Maintenance and Service Guide
Peripheral Board (Non-Hot-Pluggable)
To remove the peripheral board (non-hot-pluggable):
1. Perform the preparation procedures. See “Preparation Procedures” earlier in this chapter.
2. Remove the access panel. See “Access Panel (Tower and Rack)” earlier in this chapter.
3. Unplug all power supplies. See “Hot-Plug Power Supplies” later in this chapter.
CAUTION: Power supplies must be unplugged when servicing the peripheral board.
4. Remove data and signal cables from the board. See “Peripheral Board Cables” earlier in
this chapter.
5. Loosen the two T-15 chassis screws
securing the peripheral board to the chassis.
6. Pull the ejectors levers
up to loosen the peripheral board from the expansion slot.
7. Pull the peripheral board
from the system board expansion slot.
CAUTION: Rotating the peripheral board release levers a full 90 degrees can cause the levers
to break.
3
2
2
1
1

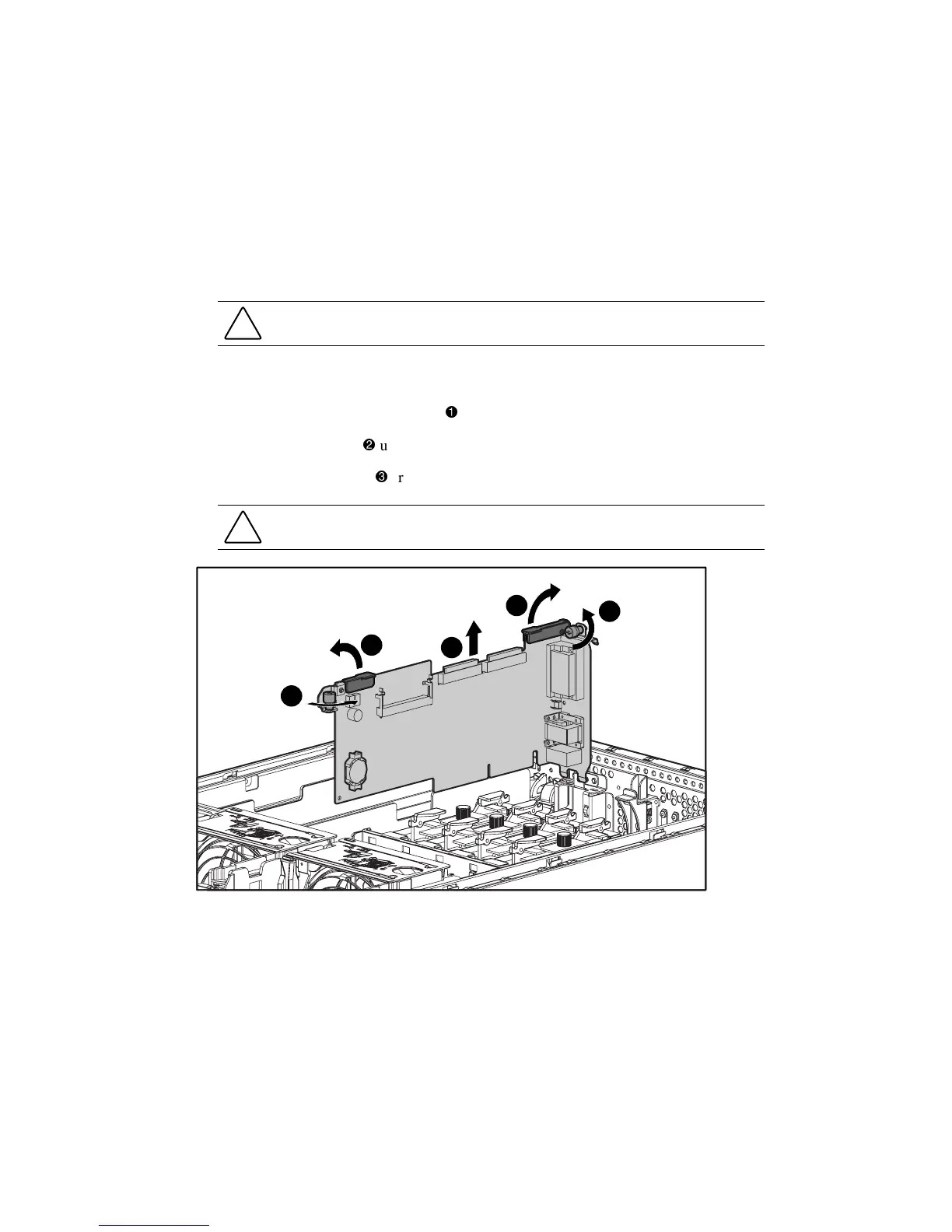

Figure 2-31. Removing the peripheral board (non-hot-pluggable)
Reverse steps 1 through 7 to replace the peripheral board (non-hot-pluggable).
