2-20 Compaq ProLiant ML570 Maintenance and Service Guide
Removable Media Area and Mass Storage Devices
The removable media area on the ProLiant ML570 server can house up to 16 mass storage
devices. Figure 2-13 shows the location of all removable media and mass storage devices
available on the ProLiant ML570 server. The removable media area consists of the following:
■ Preinstalled 3.5-inch, 1.44-MB diskette drive
■ Preinstalled IDE CD-ROM drive
■ Two full-size removable media device bays
■ Two hot-plug drive cages containing twelve 1-inch Ultra2 or Ultra3 hot-plug hard
drives—six hard drives each on two SCSI buses
2
3
45
1

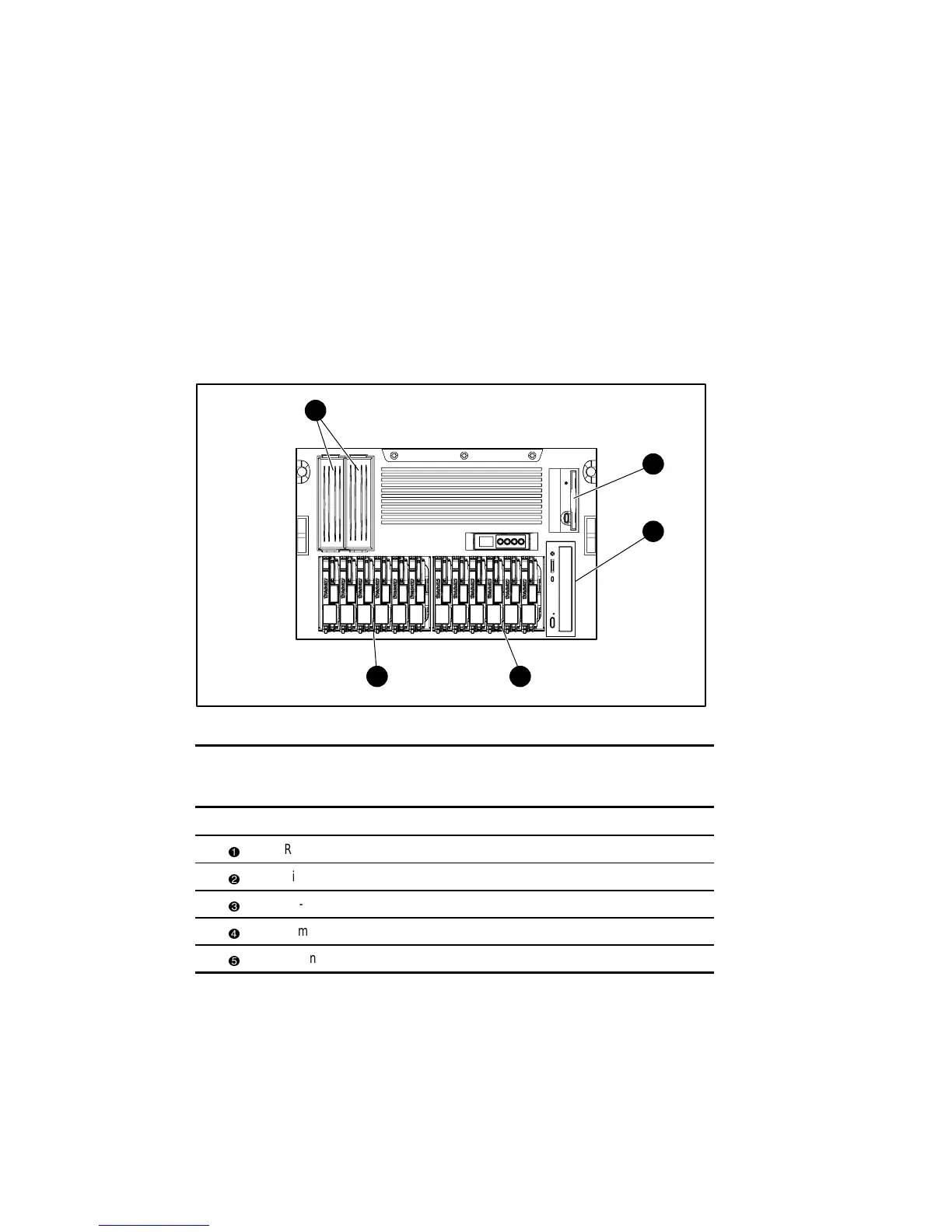

Figure 2-13. Removable media area and mass storage device locations
Table 2-2
Removable Media Area and Mass Storage Device Descriptions
Location Description
Removable media device bays
Diskette drive
CD-ROM drive
Primary hard drive cage for hot-plug SCSI hard drives
Secondary hard drive cage for hot-plug SCSI hard drives
