2-50 Compaq ProLiant ML570 Maintenance and Service Guide
Processor Cage
To remove the processor cage:
1. Perform the preparation procedures. See “Preparation Procedures” earlier in this chapter.
2. Remove the access panel. See “Access Panel (Tower and Rack)” earlier in this chapter.
3. Remove all processors and terminator boards. See “Processors” and “Terminator Boards”
earlier in this chapter.
4. Remove the 13 T-15 screws
securing the processor bracket to the electronics tray.
5. Lift the processor cage
from the electronics tray.
1
1
2

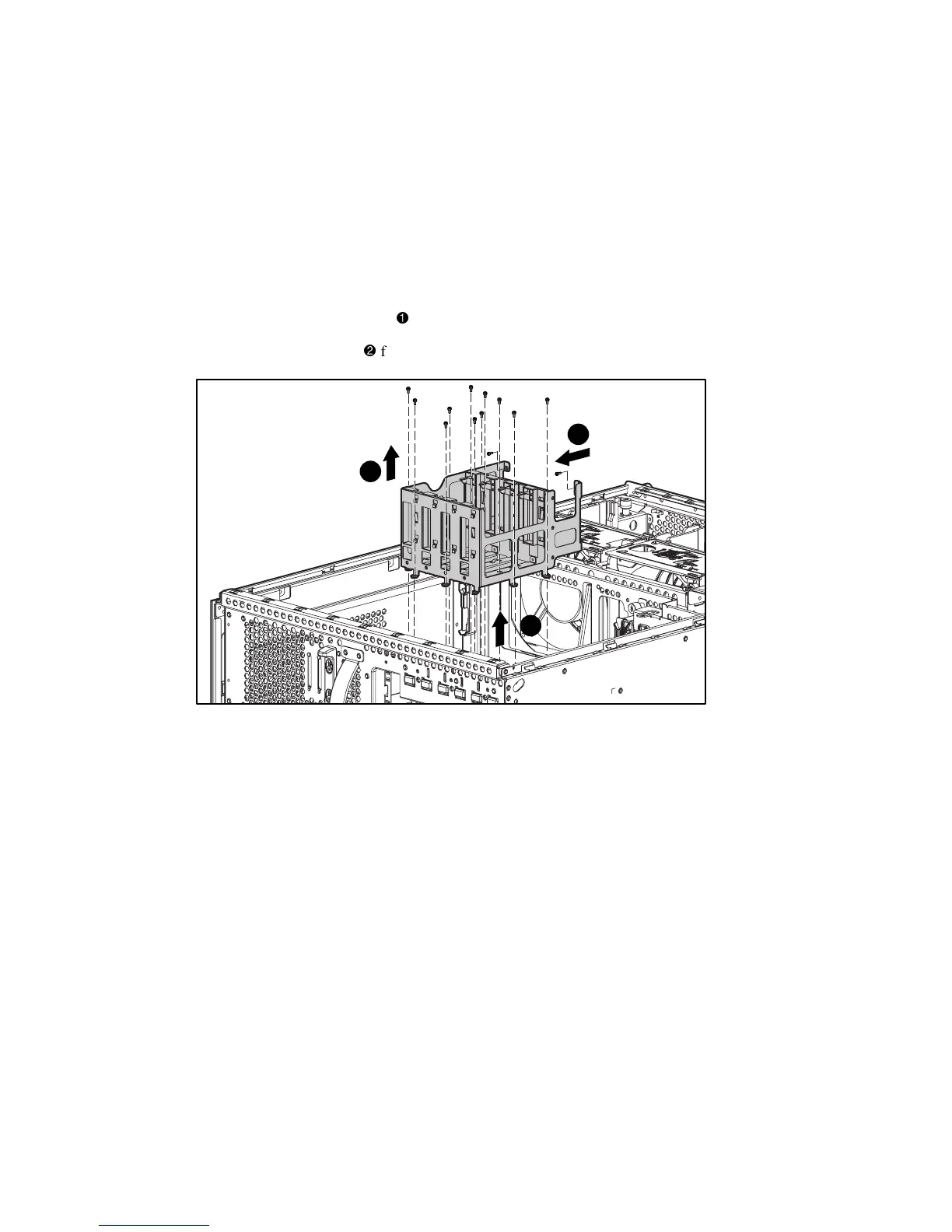

Figure 2-40. Removing the processor cage
Reverse steps 1 through 5 to replace the processor cage.
