Removal and Replacement Procedures 2-11
Rack-Mount Bezel (Rack Model Only)
The rack-mount bezel must be removed to replace the power switch. To remove the
rack-mount bezel:
1. Perform the preparation procedures. See “Preparation Procedures” earlier in this chapter.
2. Remove the access panel. See “Access Panel (Tower and Rack)” earlier in this chapter.
3. Remove the four T-15 screws
securing the rack-mount bezel to the chassis.
4. Pull the rack-mount bezel
away from the chassis.
2
1
1

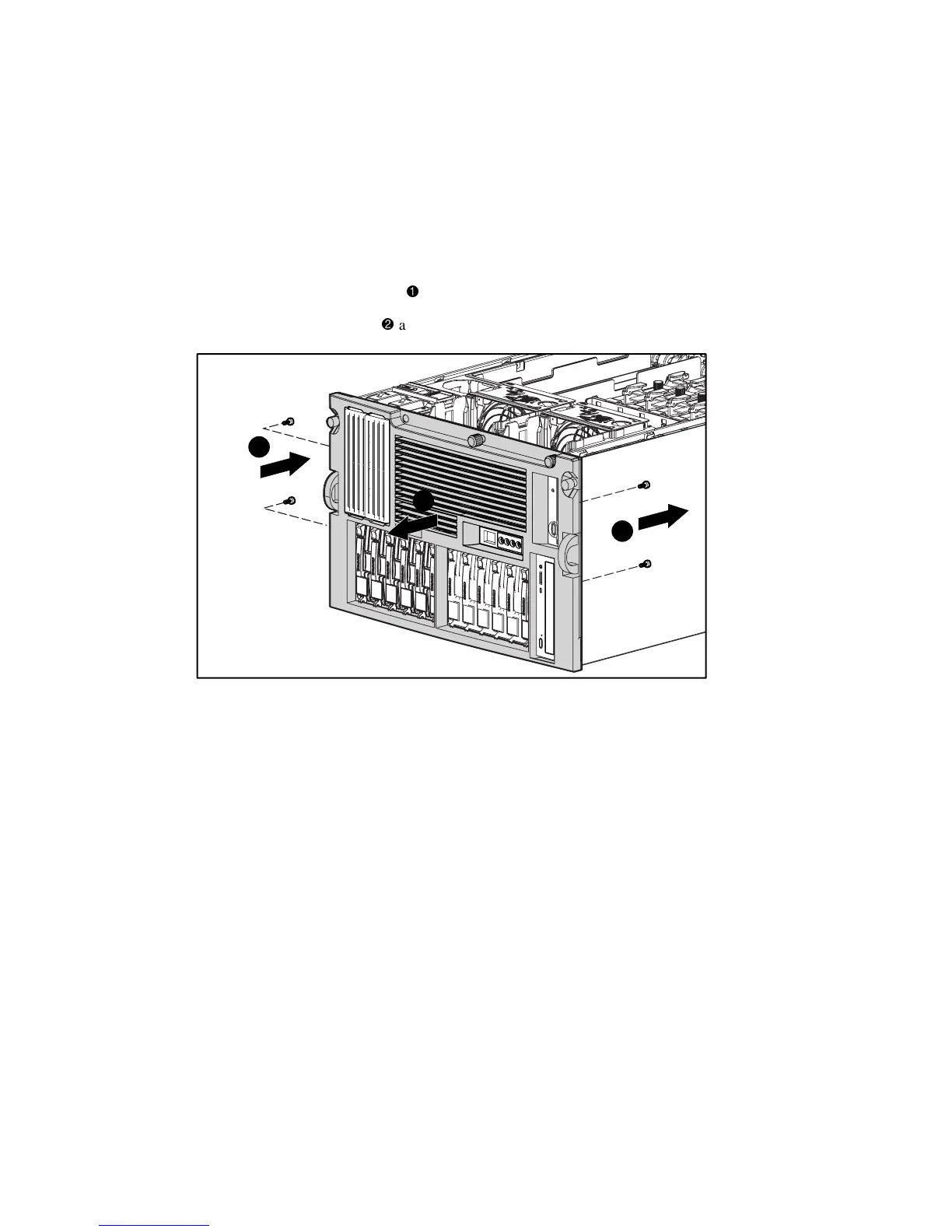

Figure 2-4. Removing the rack-mount bezel (rack model only)
Reverse steps 1 through 4 to replace the rack-mount bezel.
