2-46 Compaq ProLiant ML570 Maintenance and Service Guide
PCI Hot Plug LED Switchboard
To remove the PCI Hot Plug LED switchboard:
1. Perform the preparation procedures. See “Preparation Procedures” earlier in this chapter.
2. Remove the access panel. See “Access Panel (Tower and Rack)” earlier in this chapter.
3. Slide out the electronics drawer until it stops. See “Electronics Drawer” earlier in
this chapter.
4. Disconnect the expansion board power cable
from the system board.
5. Remove the three T-15 screws
securing the switchboard to the rear section of the
expansion board area.
6. Lift the PCI Hot Plug switchboard
from the chassis.
3
2
1

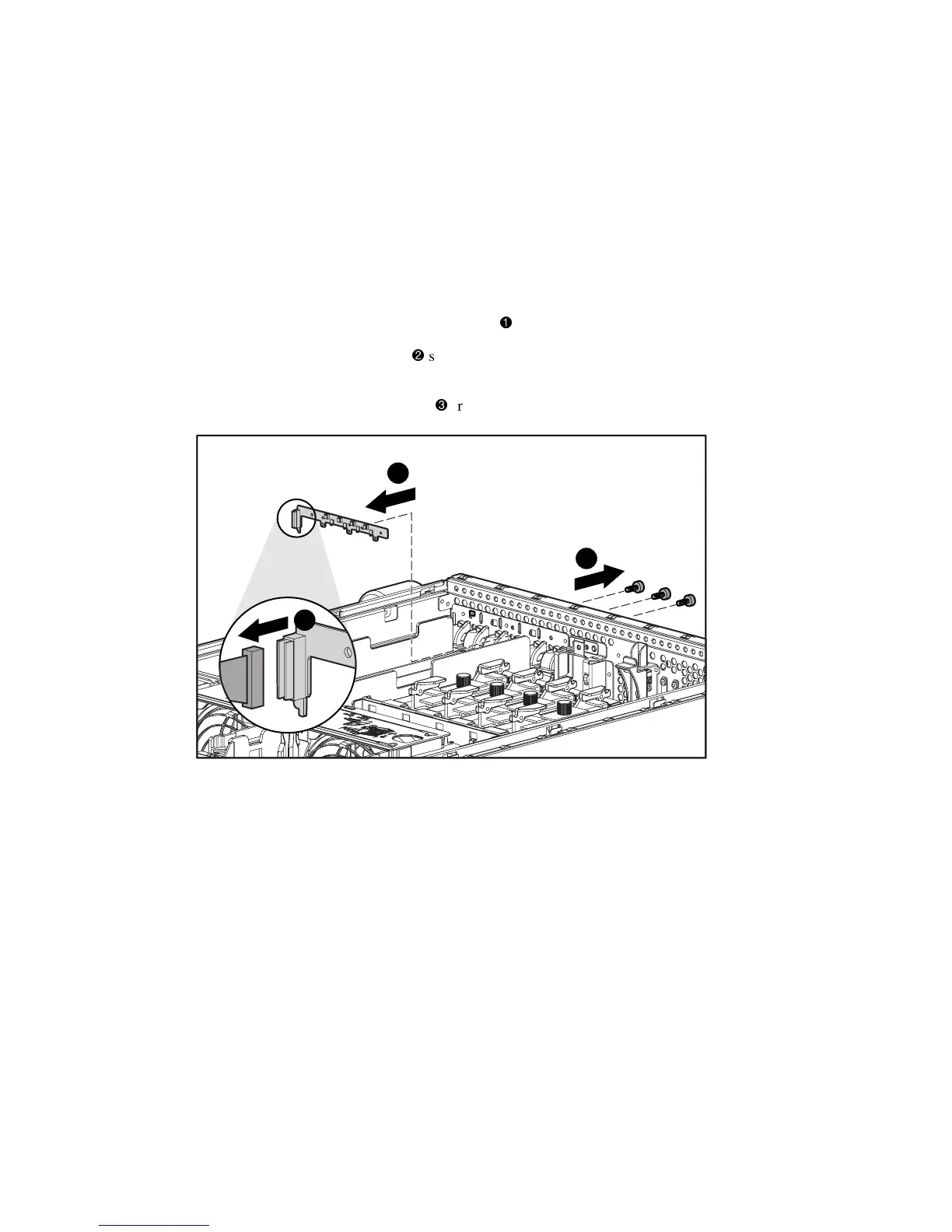

Figure 2-36. Removing the PCI Hot Plug switchboard
Reverse steps 1 through 6 to replace the PCI Hot Plug switchboard.
