2-18 Compaq ProLiant ML570 Maintenance and Service Guide
Hard Drive Fan Cable and Cable Bracket
WARNING: To reduce the risk of personal injury or damage to the equipment, the installation
of options other than hot-plug power devices should be performed only by individuals who are
qualified in servicing computer equipment and trained to deal with products capable of
producing hazardous energy levels.
To remove the hard drive fan cable and cable bracket:
1. Perform the preparation procedures. See “Preparation Procedures” earlier in this chapter.
2. Remove the hot-plug drive fans. See “Hot-Plug Hard Drive Fans” earlier in this chapter.
3. Remove the hard drive fan air baffle. See “Hard Drive Fan Air Baffle” later in
this chapter.
4. Remove the T-10 screw
holding the hard drive fan cable bracket in place, then lift the
hard drive fan cable bracket from the chassis.
5. Unplug the hard drive fan cable
from the power backplane board.
6. Remove the hard drive fan cable from the unit.
1
2

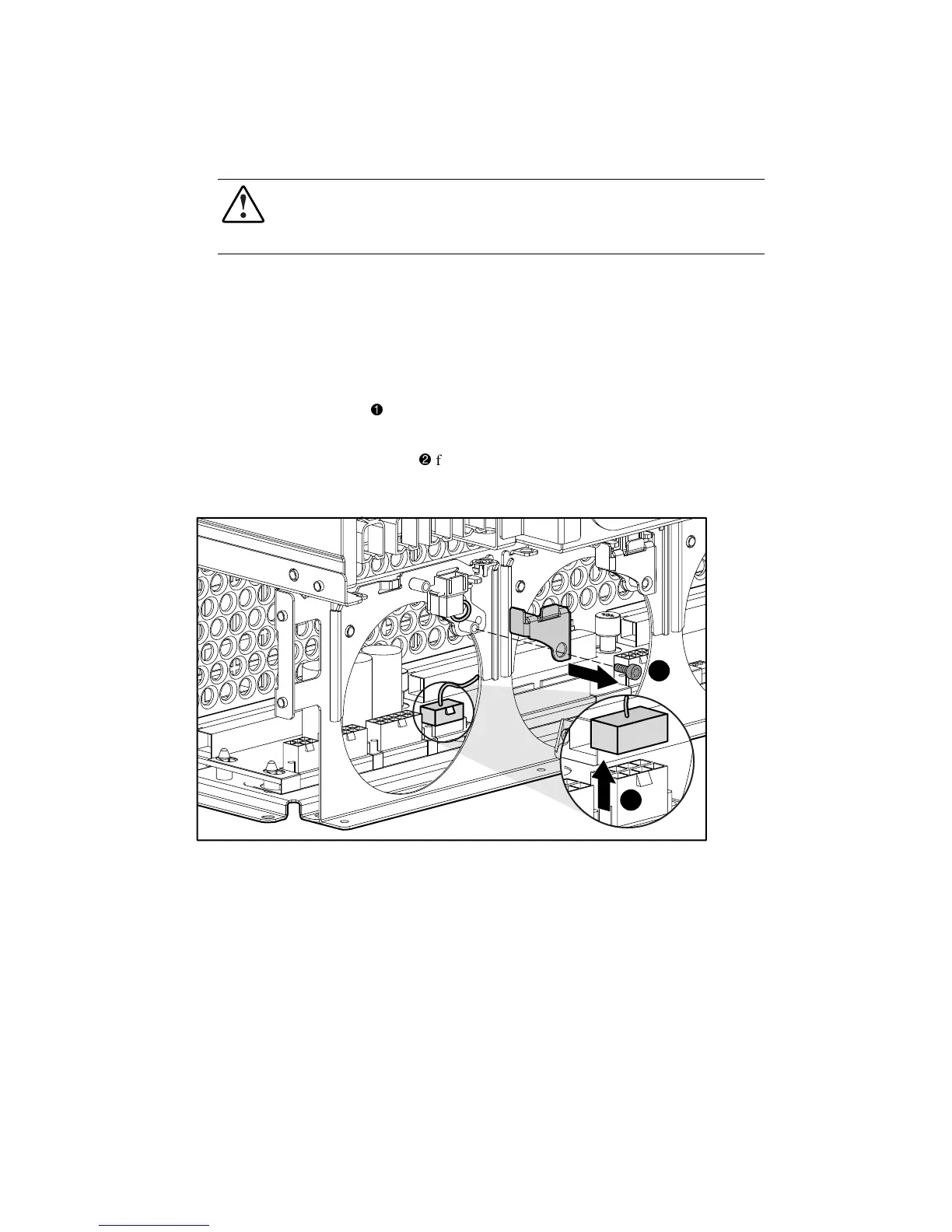

Figure 2-11. Removing the hard drive fan cable and cable bracket
Reverse steps 1 through 6 to replace the hard drive fan cable and cable bracket.
