Removal and Replacement Procedures 2-19
Hard Drive Fan Air Baffle
To remove the hard drive fan air baffle:
1. Perform the preparation procedures. See “Preparation Procedures” earlier in this chapter.
2. Remove the access panel. See “Access Panel (Tower and Rack)” earlier in this chapter.
3. Remove both system fan baskets. See “System Fan Basket” earlier in this chapter.
4. Slide the electronics drawer partially out of the chassis. See “Electronics Drawer” later in
this chapter.
5. Loosen the two thumbscrews ➊ on the hard drive fan air baffle.
6. Slide the baffle ➋ over the drive fans, then lift the hard drive fan air baffle away from
the chassis.
2
1
1

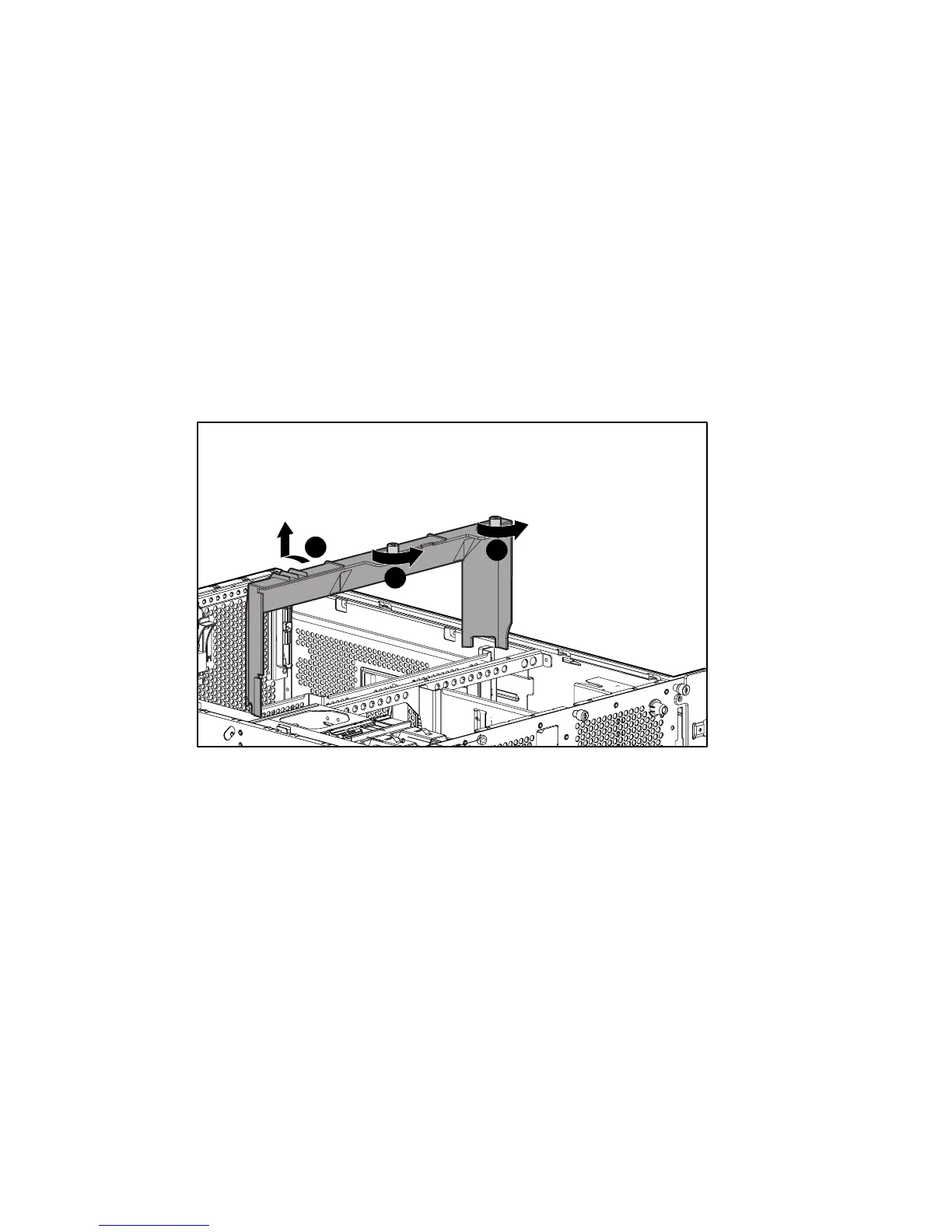

Figure 2-12. Removing the hard drive fan air baffle
Reverse steps 1 through 6 to replace the hard drive fan air baffle.
