2-12 Compaq ProLiant ML570 Maintenance and Service Guide
CPU Fan Air Baffle
To remove the CPU fan air baffle:
1. Perform the preparation procedures. See “Preparation Procedures” earlier in this chapter.
2. Remove the access panel. See “Access Panel (Tower and Rack)” earlier in this chapter.
3. Pull the two plastic pins ➊ located on the sides of the baffle that secure the fan baffle to
the chassis.
4. Lift the CPU fan air baffle  from the chassis.
2
1

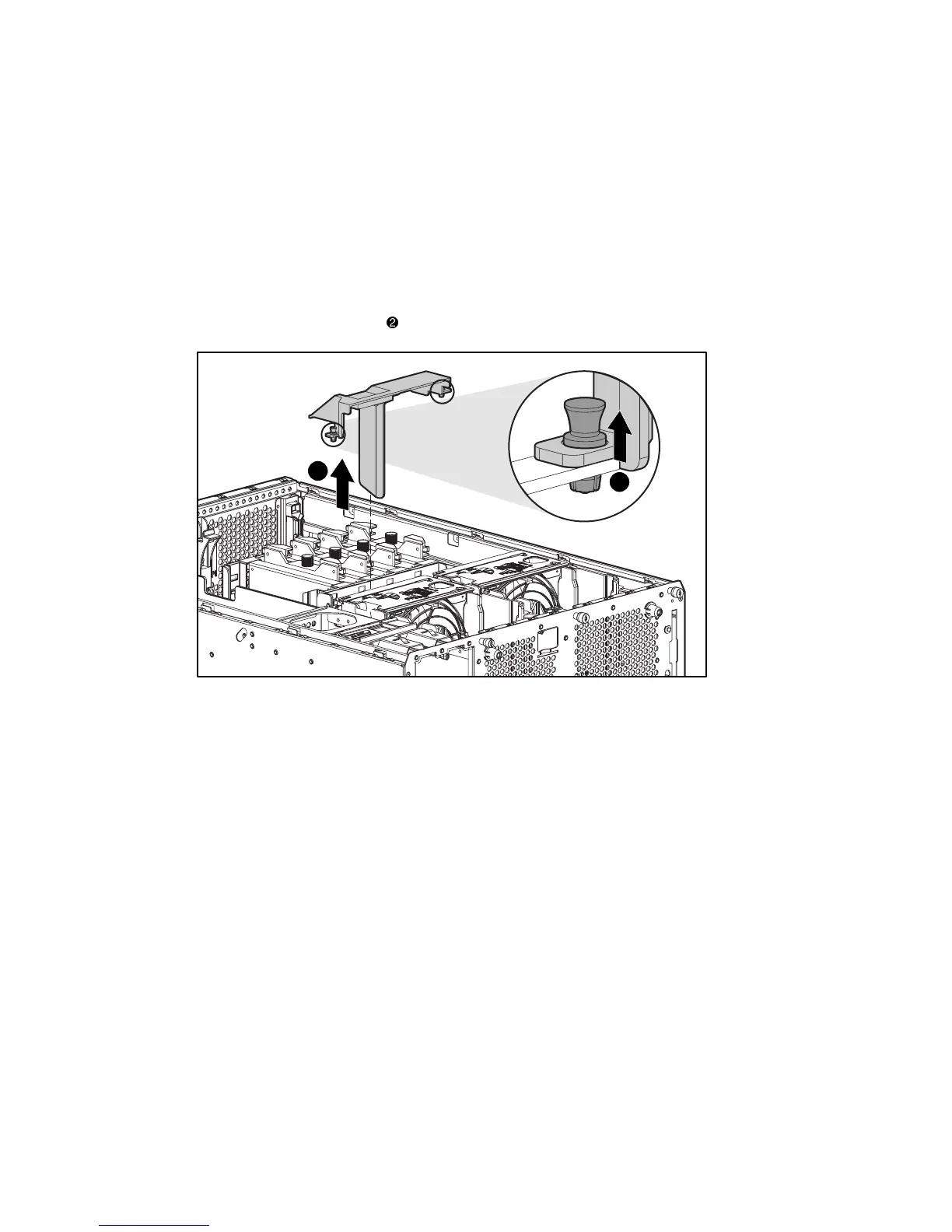

Figure 2-5. Removing the CPU fan air baffle
Reverse steps 1 through 4 to replace the CPU fan air baffle.
