Removal and Replacement Procedures 2-45
Compaq NC3123 Fast Ethernet NIC PCI 10/100
Wake on LAN Controller
To remove the Compaq NC3123 Fast Ethernet NIC PCI 10/100 Wake on LAN
(WOL) controller:
1. Perform the preparation procedures. See “Preparation Procedures” earlier in this chapter.
2. Remove the access panel. See “Access Panel (Tower and Rack)” earlier in this chapter.
3. Disconnect the RJ-45 connector from the rear of the NC3123 controller.
4. Press the release tab
on the expansion slot latch.
5. Swing open the expansion slot latch
to unlock the controller.
6. Lift the controller
out of the system board expansion slot.
2
1
3

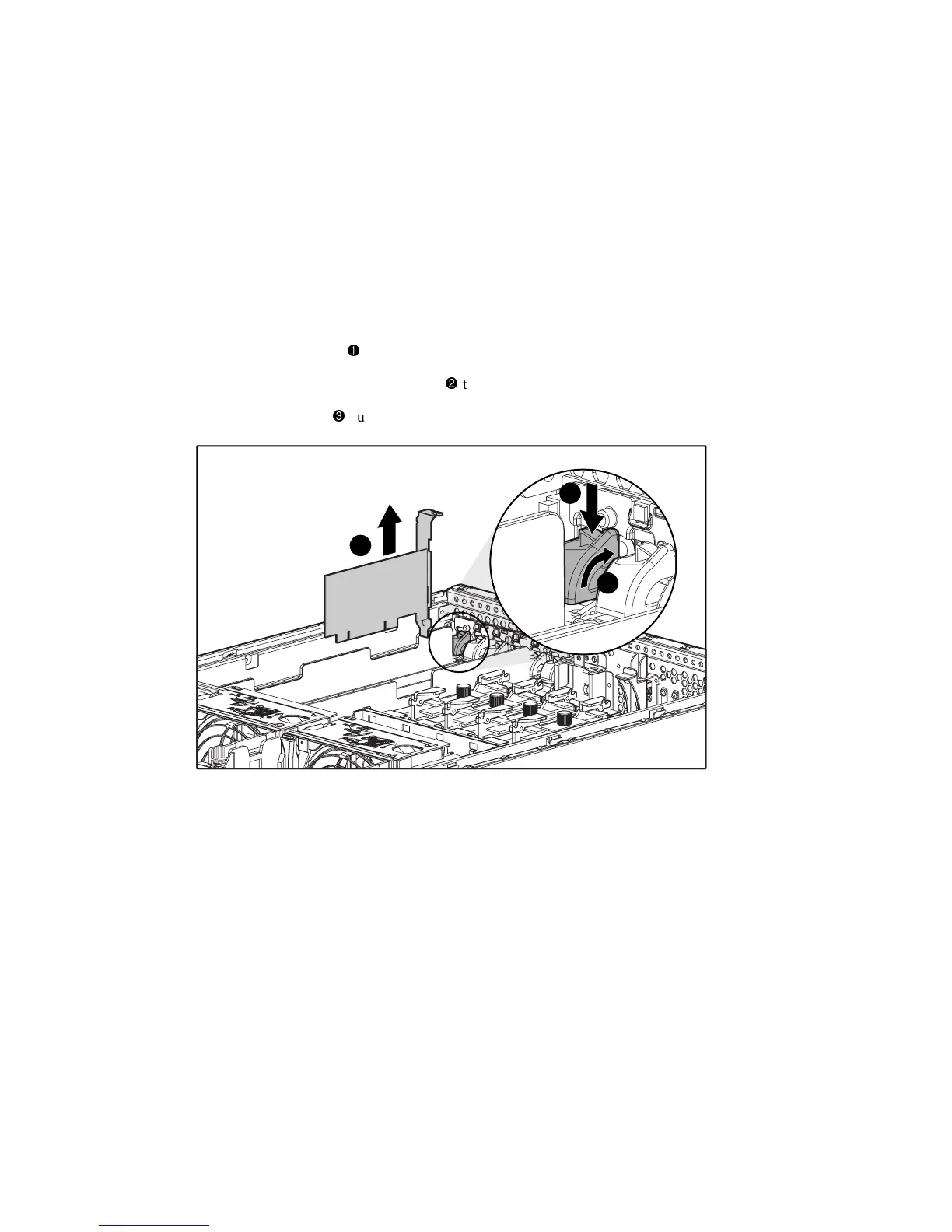

Figure 2-35. Removing an NC3123 Fast Ethernet NIC PCI 10/100 Wake on LAN (WOL) controller
Reverse steps 1 through 6 to replace an NC3123 Fast Ethernet NIC PCI 10/100 WOL controller.
