To remove a processor:
1. Perform the preparation procedures. See “Preparation Procedures” earlier in this chapter.
2. Remove the access panel. See “Access Panel (Tower and Rack)” earlier in this chapter.
3. Remove the CPU fan air baffle. See “CPU Fan Air Baffle” earlier in this chapter.
4. Loosen the thumbscrew
located on the top of the processor.
5. Pull up, then swing open the ejector levers
on both sides of the processor.
6. Lift the processor
from the slot.
1
2
3
2

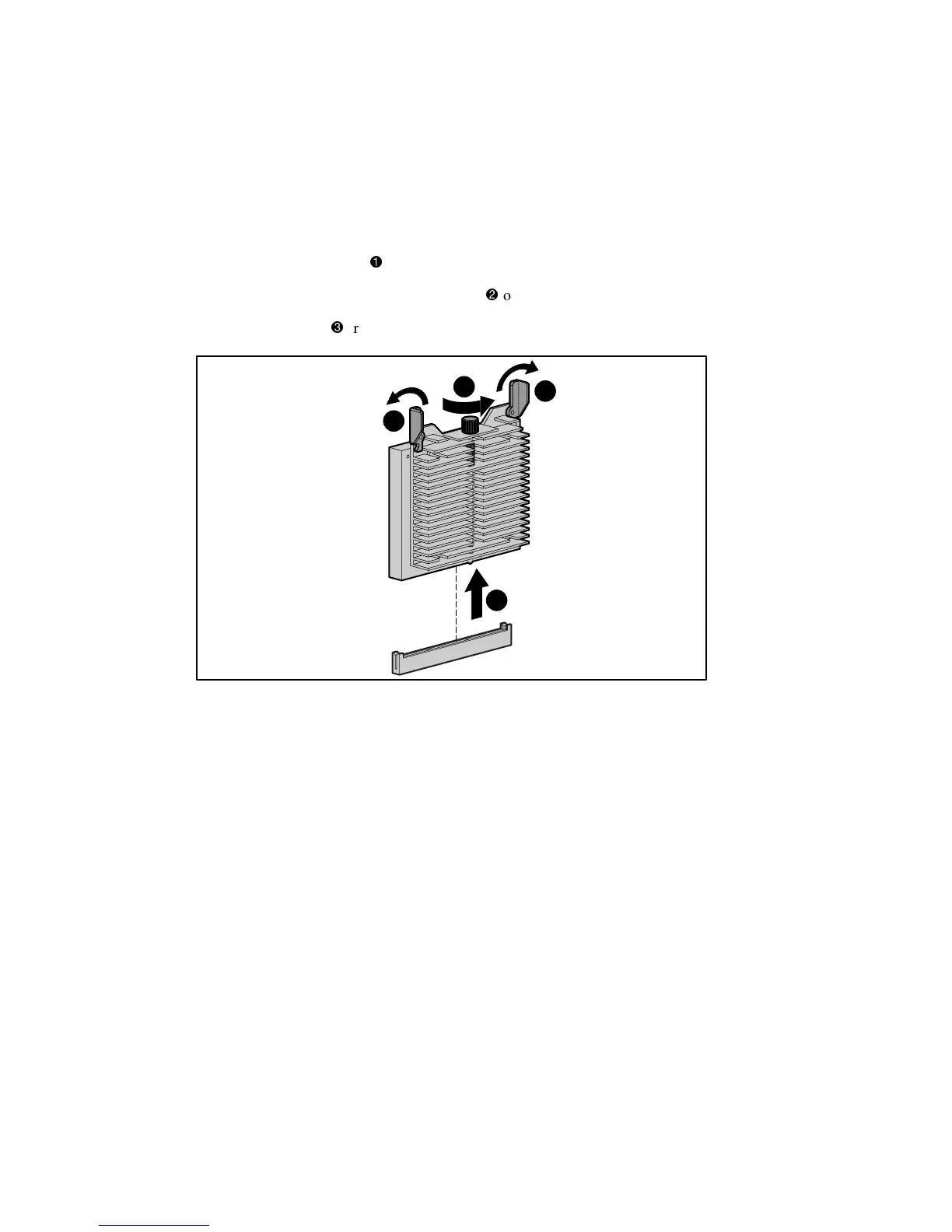

Figure 2-38. Removing a processor
Reverse steps 1 through 6 to replace a processor.
