Installation – RF Path Elements P/N 709C011801 Page 70

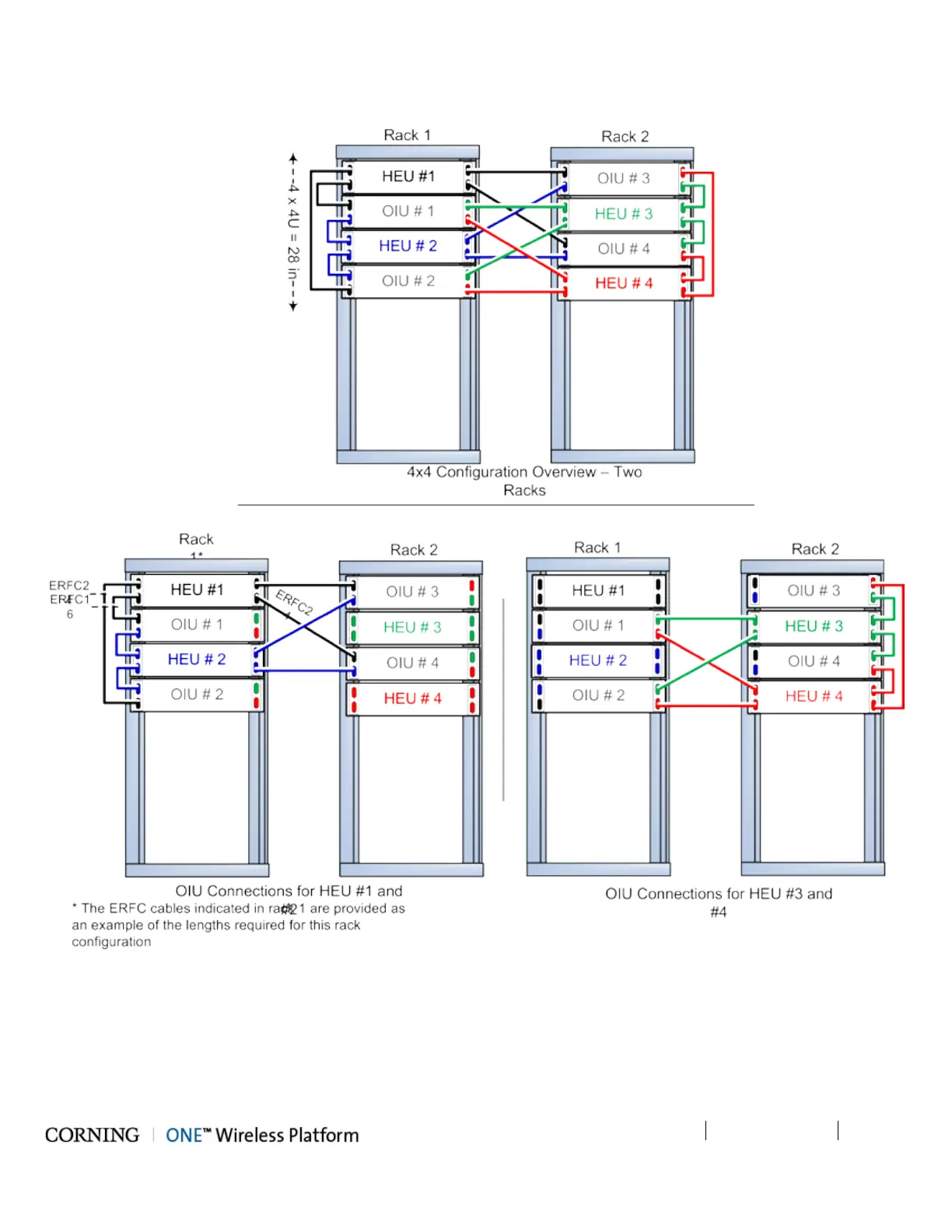

Figure 5-13. 4x4 HEU-OIU Two Rack Configurations
Figure 5-13 illustrates how each HEU is connected to each OIU in a shared equipment (dual rack) scenario. In Figure 5-13. the
port numbers (1-4) indicated on each HEU correspond to the OIUs in the racks and vice versa for the OIU port numbers. For
example, Port 3 in HEU #1 indicates the connection to OIU #3, whereas Port 1 in OIU #3 indicates the connection to HEU #1.
