Installation – RF Path Elements P/N 709C011801 Page 80

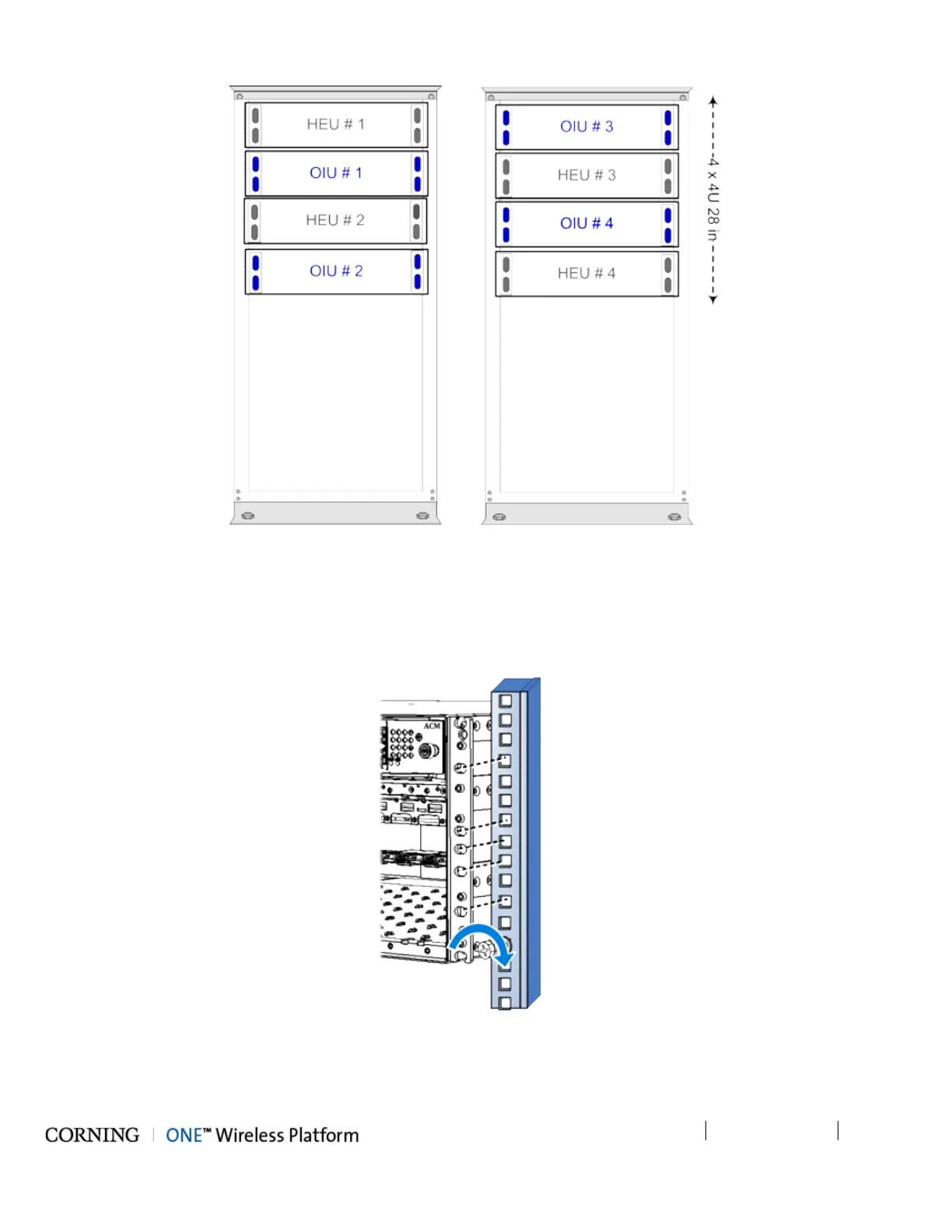

Figure 5-25. 4x4 Rack Installation Diagram – Shared
3. Referring to Figure 5-26 secure the units’ rack ears to the rack frame as follows:
• Insert two screws half-way into the rack frame.
• Position the chassis on to the screws using the handles and the top and bottom half slots of the rack ears.
4. Secure the unit in the rack via all applicable bracket holes using the appropriate rack nuts and screws.
Figure 5-26. Installing Chassis in Rack
