xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
449

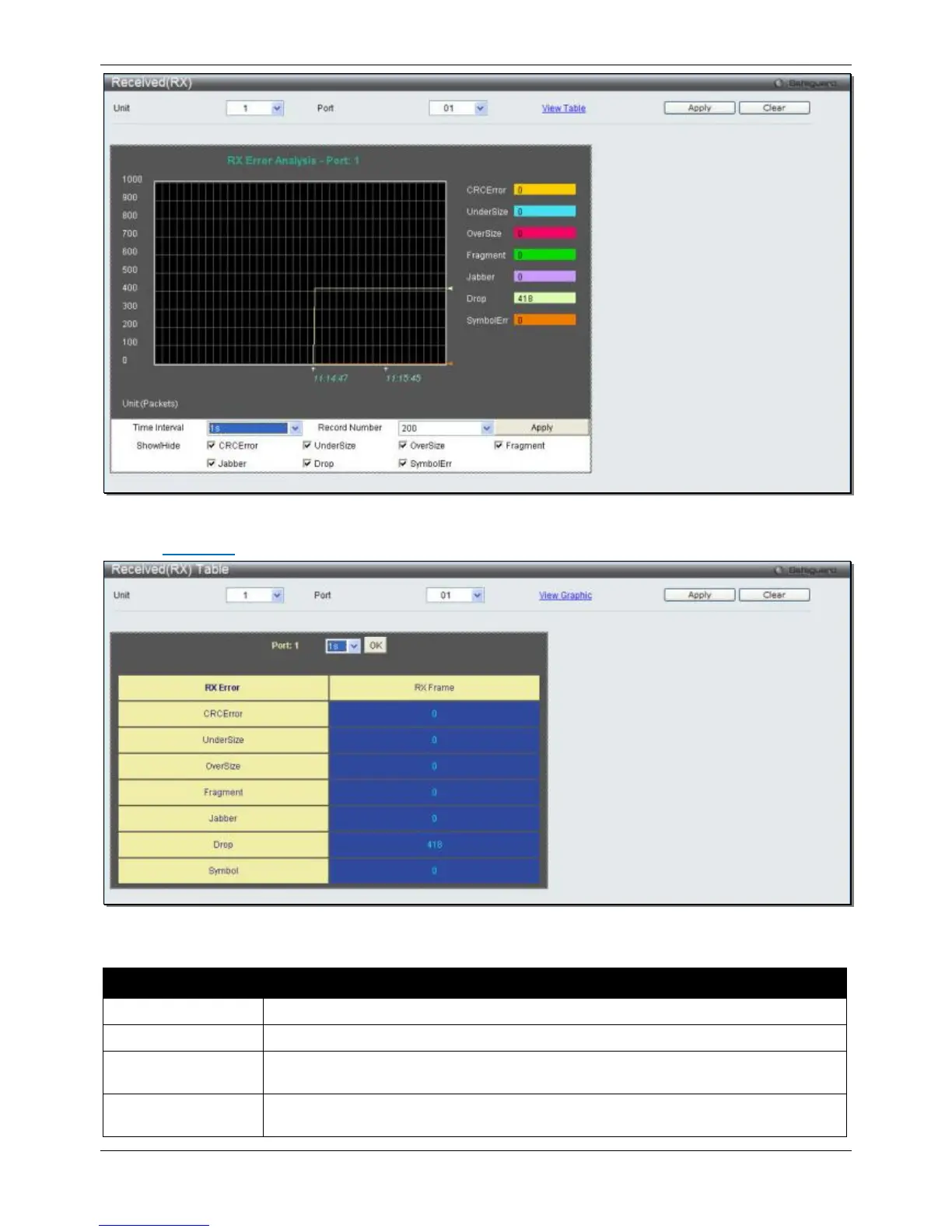

Figure 11-10 Received (RX) window (for errors)
Click the View Table link to display the information in a table rather than a line graph.
Figure 11-11 RX Error Analysis window (table)
The fields that can be configured or displayed are described below:
Parameter Description
Select the unit you want to configure. (EI and SI Mode Only)
Use the drop-down menu to choose the port that will display statistics.
Time Interval Select the desired setting between 1s and 60s, where "s" stands for seconds. The
default value is one second.
Record Number Select number of times the Switch will be polled between 20 and 200. The default value
is 200.
