Aux Serial Port
Reference Manual 107
Heartbeat Terminator (max. 32 chars)
Click to activate the Text Entry Tool and create Heartbeat Terminator text to
signal the end of the heartbeat message. Characters from NUL (00H) to ~ (7EH) can
be used. Click Submit to save your text to the origin window text field, or click
Cancel to return to origin window without transferring text.
The Heartbeat Terminator string must be different from the Heartbeat Message
(header) string
Send Failure Bitmap
Select the check box to include a Failure Bitmap in the heartbeat message. The
Failure Bitmap is the information pertaining to any error that may be encountered
by the scanner. This message may be transmitted in the following format.
Failure Bitmap Format
Select the format of the Failure Bitmap from the drop-down.
Decimal (ASCII)
Hexidecimal (ASCII)
Bitmap (ASCII
Numeric (Binary)
Failure Bitmap Size
Select the size fo the Failure Bitmap from the drop-down. Options are, Variable, or
1-32.

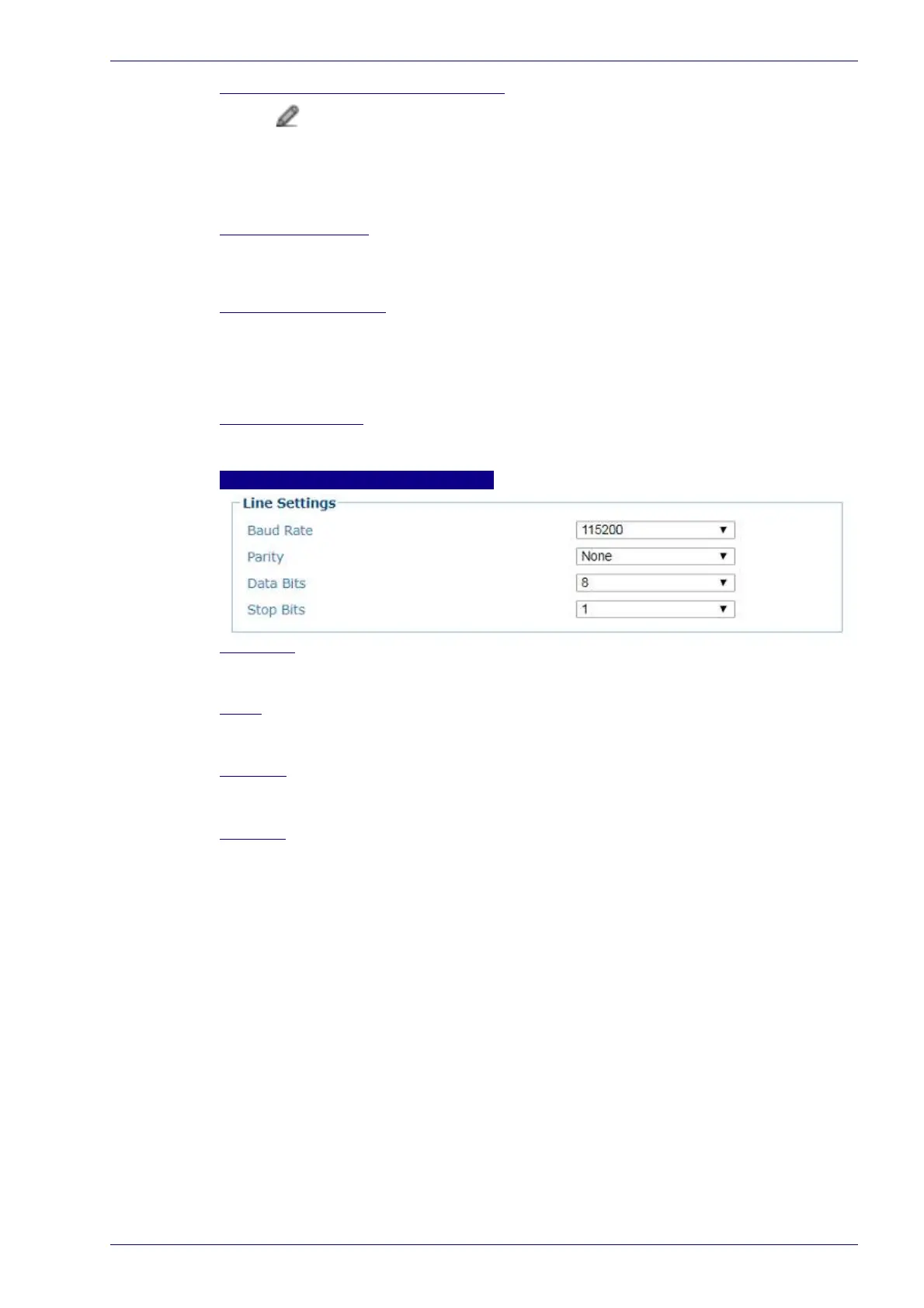

Line Settings
Baud Rate
Select a value from 1200 to 115200 from the drop-down list. Baud Rate is the
transmission speed in a communication line.
Parity
Select None, Odd, or Even from the drop-down list. Parity is a parameter indicating
the presence of a control bit in the communication protocol frame.
Data Bits
Select 7 or 8 from the drop-down list. Data Bits is a parameter indicating the
number of bits composing the data packet of the communication protocol frame.
Stop Bits
Select 1 or 2 from the drop-down list. Stop Bits is a parameter indicating the
number of stop bits in the data packet of the communication protocol frame.
3. When you have finished making changes, click Update All to save all pend-
ing changes, click Reset All
to revert to all previously saved values, and click
Reset Page to revert to previous saved values on the current page.
