PackTrack™
Reference Manual 217

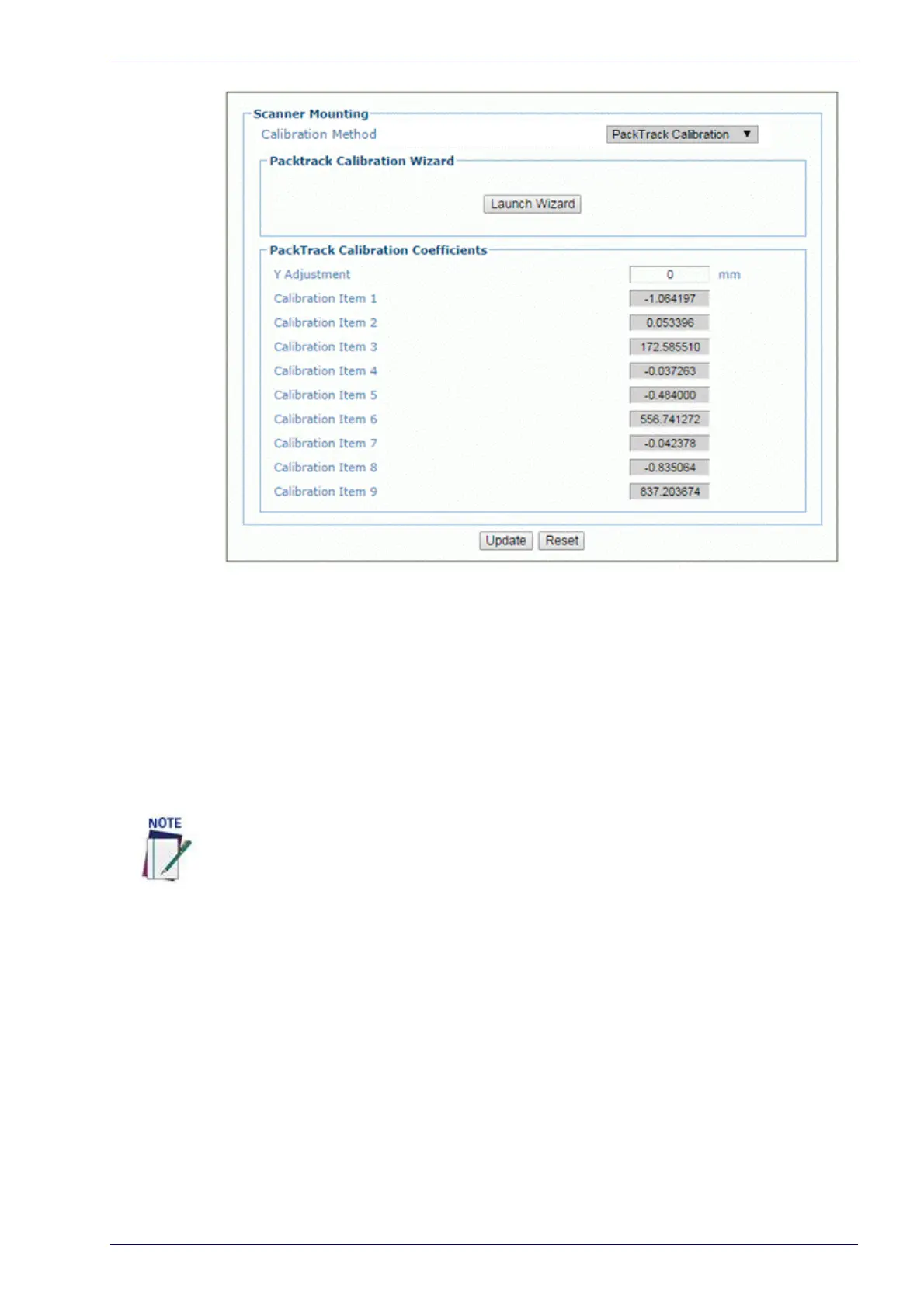

20. When you have finished making changes, click Update All to save all pend-
ing changes, click Reset All to revert to all previously saved values, and click
Reset
Page to revert to previous saved values on the current page.
21. See Verifying PackTrac
k Cal
ibration below.
Side-Mounted Barcode Scanner Calibration Using PackTrack
With the belt stopped, measure and enter the barcode XYZ coordinate data for
each scanner as follows:
1. Start by placing a system barcode hanging halfway past the ba
ck lower left
edge of a box, and then place the box along the edge of the conveyor belt
as shown in the illustration below.
It is not possible to illustrate every possible installation angle and scanner mounting
position in this manual. Use the following steps as a general guide to calibrating each
system scanner using barcodes in three positions. You will need to make adjustments
to the label/box position based on your situation. It is, however, important to note the
fixed XYZ coordinates of the conveyor.
