Device Settings | Mounting
Reference Manual 171
Device Settings | Mounting
Use the Mounting window to calibrate your scanner.
To view and edit the Mounting settings:
1. In the menu under Modify Settings, navigate t
o Device Settings | Device
Name (if applicable) | Mounting. The Mounting window opens.

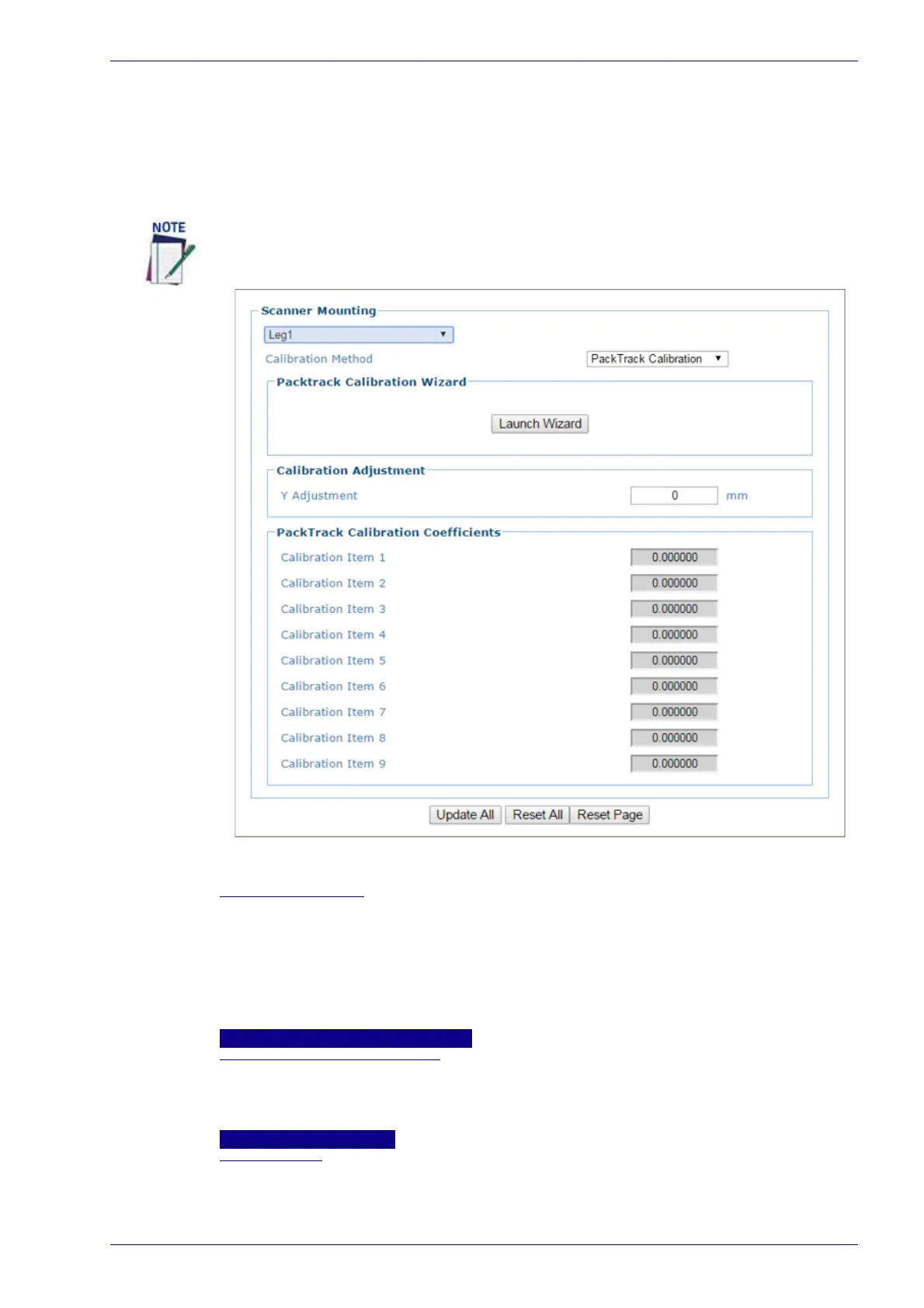

2. Enter the appropriate information in the form as described below:
Calibration Method
Select Use Built-In Calibration or PackTrack Calibration from the drop-down list.
Use Built-In Calibration only available for the DX8210, and you must manually
enter the requested data. If PackTrack Calibration is selected, use the wizard to
automatically enter most of the data.
Both the Built-In and PackTrack Calibration methods need manually entered data.
The Built-In method reduces the number of entries for the scanner to calculate the
PackTrack parameters.
PackTrack Calibration
PackTrack Calibration Wizard
Click Launch Wizard to open the PackTrack™ Calibration Wizard. View PackTrack
calibration in the On line help for the particular scanner.
Calibration Adjustment
Y Adjustment
Enter the scanner adjustment from Y axis in millimeters in the field provided. This
is used to make fine adjustments to the tested calibration. This is used during
dynamic calibration to fine tune the Y parameter.
If more than one device is included in the scanning system, the device name will be
listed in the menu tree after the Device Settings level.
