Messaging | Diagnostics Messages
Reference Manual 153
Messaging | Diagnostics Messages
Use the Diagnostic Message window to select the parameters managing diag-
nostic message transmission by the Stand Alone or
Master scanner.
To edit the Diagnostic Message settings:
1. In the menu under Modify Settings, navigate
to Global Settings | Messaging
| Diagnostic Message. The Diagnostic Message window opens.

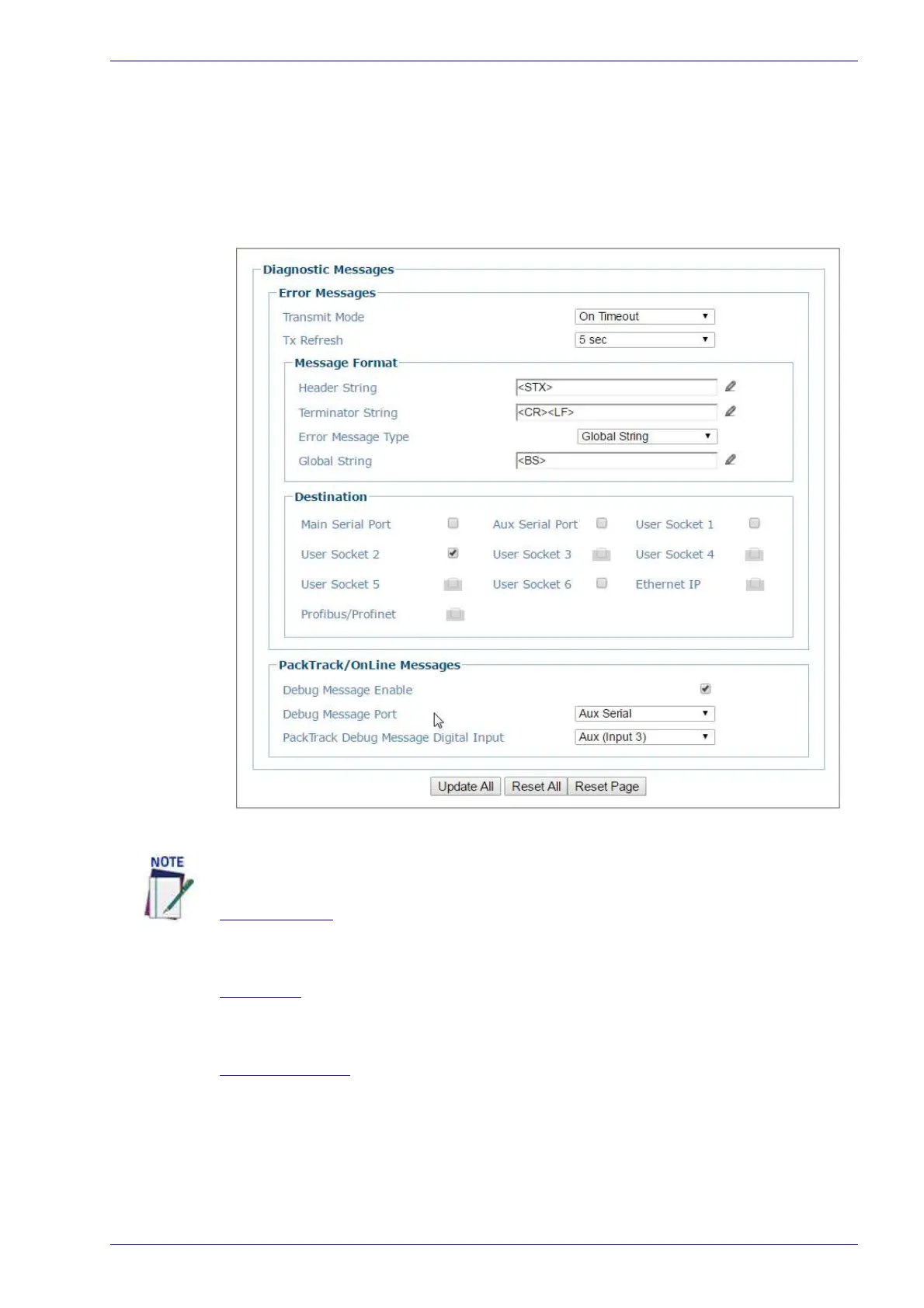

2. Enter the appropriate information in the form as described below:
Transmit Mode
Select On Timeout or With Code from the drop-down list. The diagnostic message
can be transmitted to the system by the Stand Alone or Master barcode scanner
either asynchronously (at programmed intervals), or synchronously with the code.
Tx Refresh
If Tx Mode is asynchronous (On Timeout) is selected, select a TX Refresh rate in
seconds or minutes from the drop-down list to define the time interval in which the
diagnostic messages will be transmitted.
Message Position
If Transmit Mode is synchronous (With Code), the diagnostic messages will be
transmitted on the same interface used for code transmission. Select Append to
Code or Replace Code from the drop-down list.This selection determines if the
messages will replace the code or be appended to it.
The User Socket must be enabled in Ethernet > User Sockets for it to be available in this
menu.
