Datalogic DS8100

To Next Page

To Previous Page

Typical Connection Block Diagrams

Reference Manual 23

Typical Connection Block Diagrams

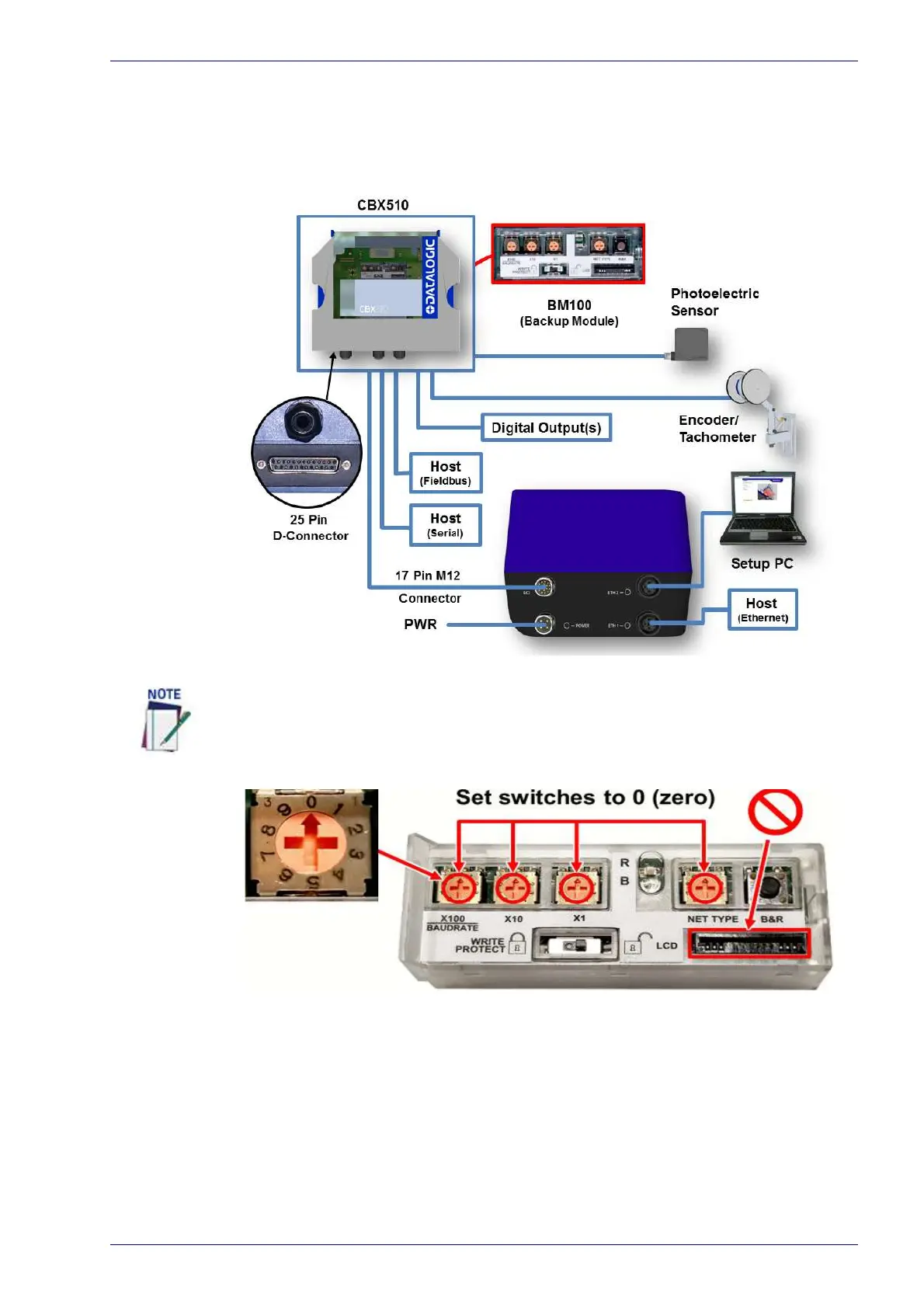

Single DS8110 Barcode Scanner to CBX510

The BM100 switches indicated below must be set to 0 (zero), and the connector indi-

cated is not supported.
