User Interface
156
DX8210 Barcode Scanner

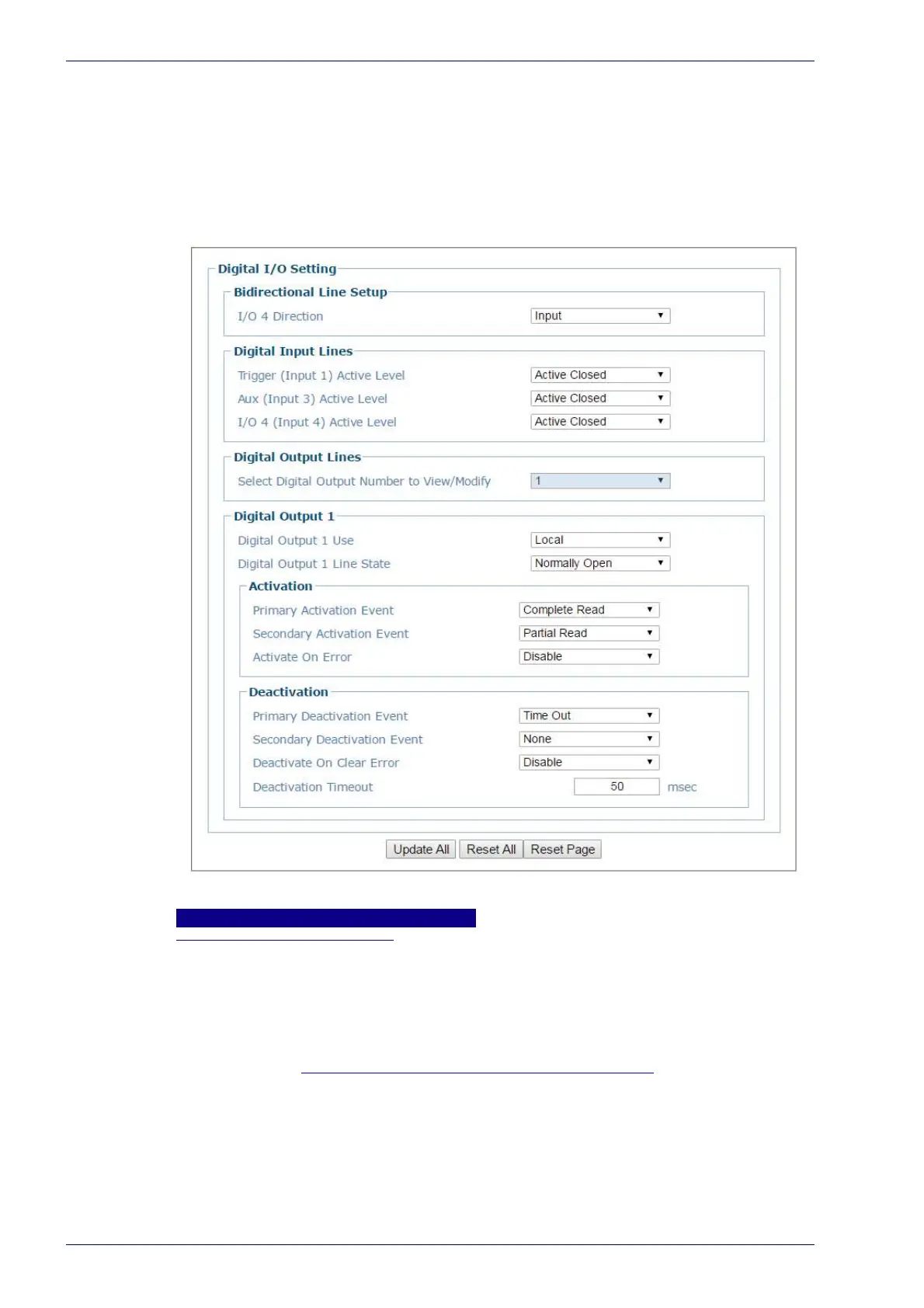

Digital I/O
Use the Digital I/O window to configure the digital inputs and outputs for your
barcode scanning system.
To edit the Digital I/O settings:
1. In the menu under Modify Settings, navigate t
o Global Settings | Digital I/O.
The Digital I/O window opens.
2. Enter the appropriate information in the form as described below:
Digital Input Lines
Trigger (Input 1) Active Level
Select Active Closed or Active Open from the drop-down list.
Active Closed: Input 1 is active when current flows through (IN1) EXT_TRIG
pins.
Active Open: Input 1 is active when there is no current flowing through (IN1)
EXT_TRIG pins.
This parameter setting is not valid, if the input has already been defined in On Line
or PackTrack™ Operating Modes“
Operating Mode” on page 54.
