Electrical Installation
30
DS8110 Barcode Scanner
RS422 Full-Duplex Interface
The RS422 full-duplex interface is used for non-polled communication proto-
cols in point-to-point connections over lo
nger distances (max 1200 m / 3940 ft)
than those acceptable for RS232 communications or in electrically noisy envi-
ronments.

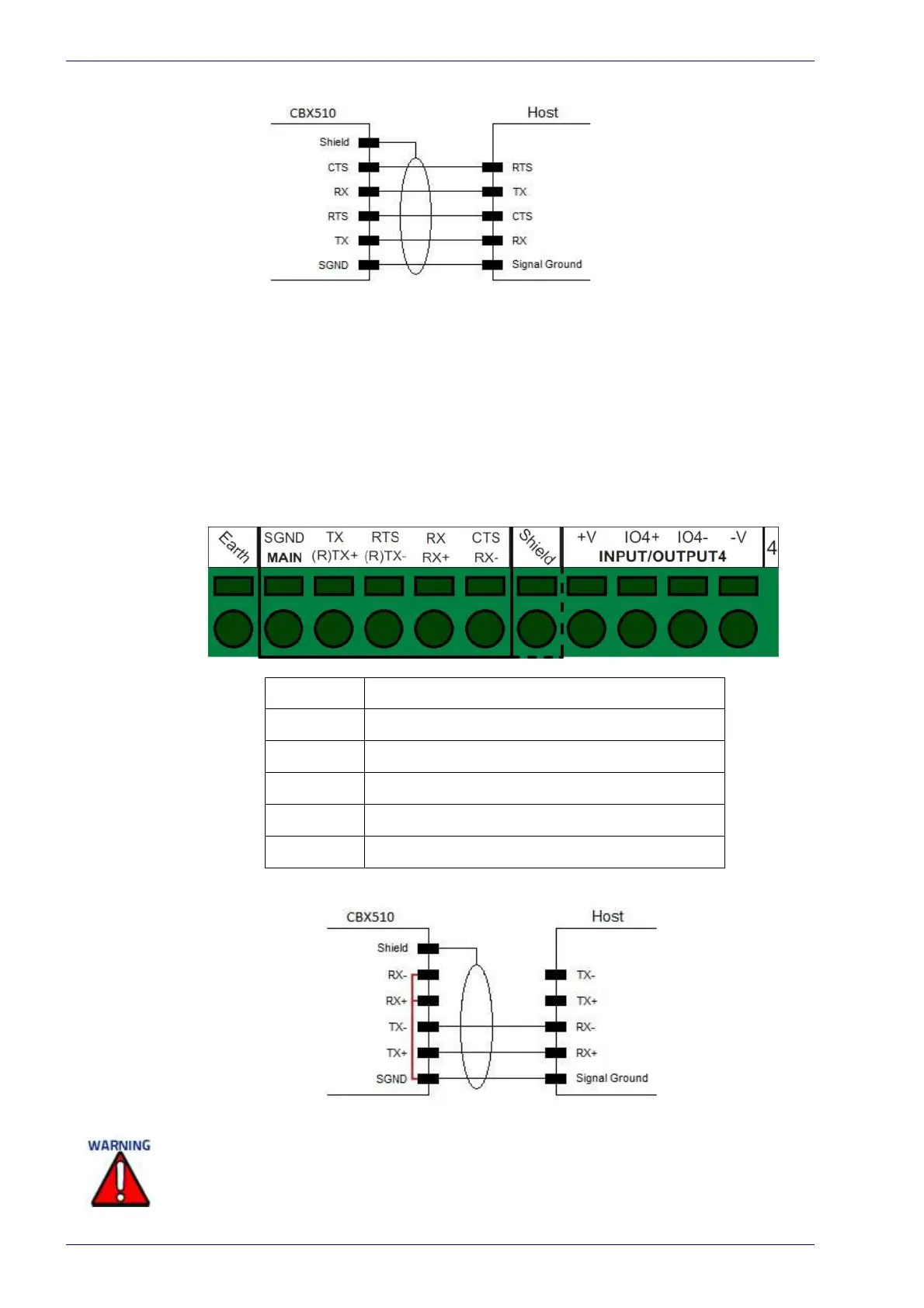

The following positions of the CBX510 spring clamp connector (row 4) are used
for RS422 fu
ll-duplex interface connection:
Name Function
SGND Signal ground (isolated)
TX+ RS422 output (+)
TX- RS422 output (-)
RX+ RS422 input (+)
RX- RS422 input (-)
For application that do not use RS422 RX signals, do not leave these lines floating
but connect them to SGND as shown below.
