User Interface

186

DX8210 Barcode Scanner

Utilities | Reboot

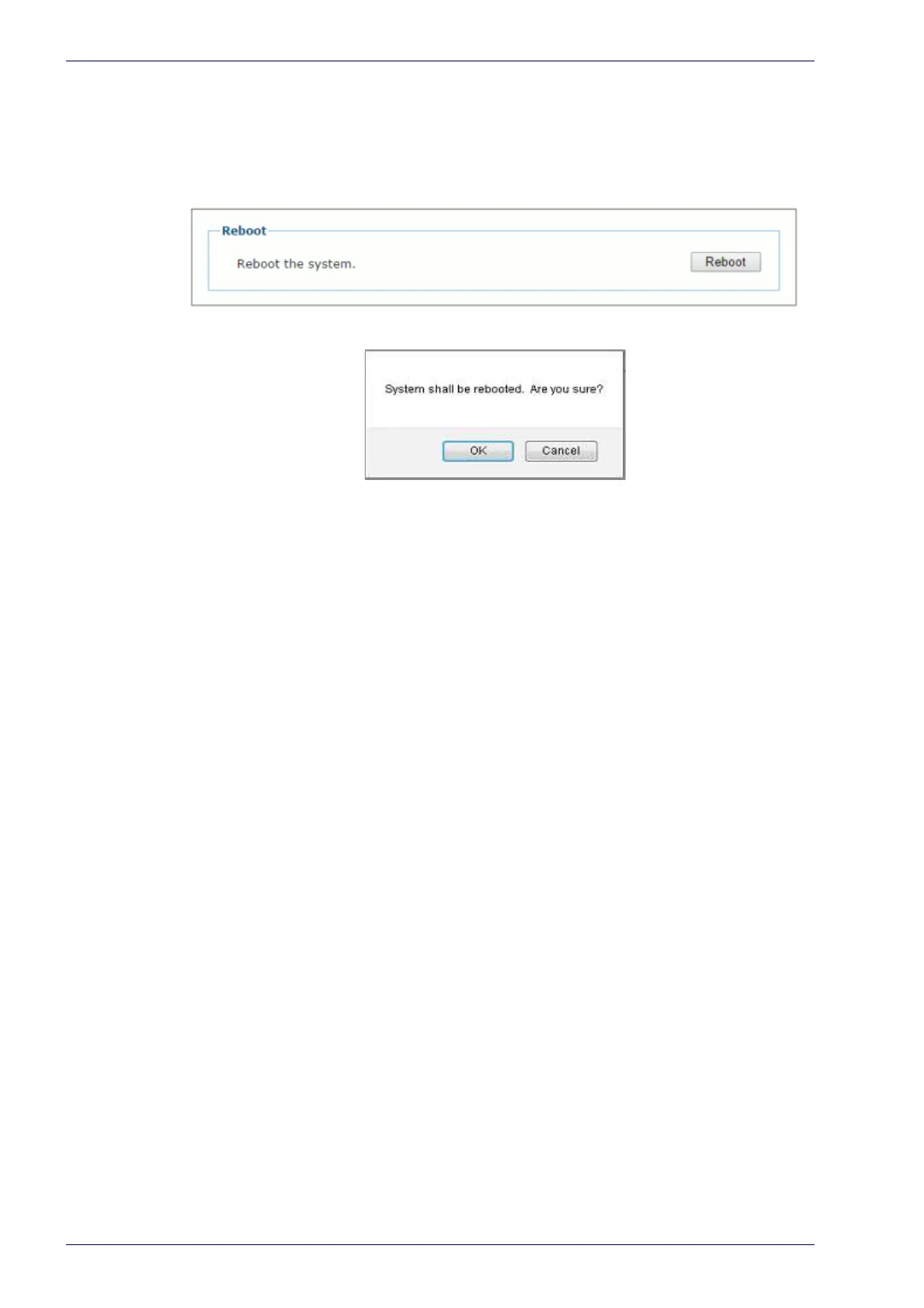

Use the Reboot window to restart the scanner or system.

To use the Reboot function:

1. In the menu under Utilities, click Reboot. The Reboot window opens.

2. Click Reboot. A confirmation box appears.

3. Click OK to reboot the system, or click Cancel to return to the reboot win-

dow.
