Mechanical Installation
16
DS8110 Barcode Scanner
Installation
Dimensions and Clearances

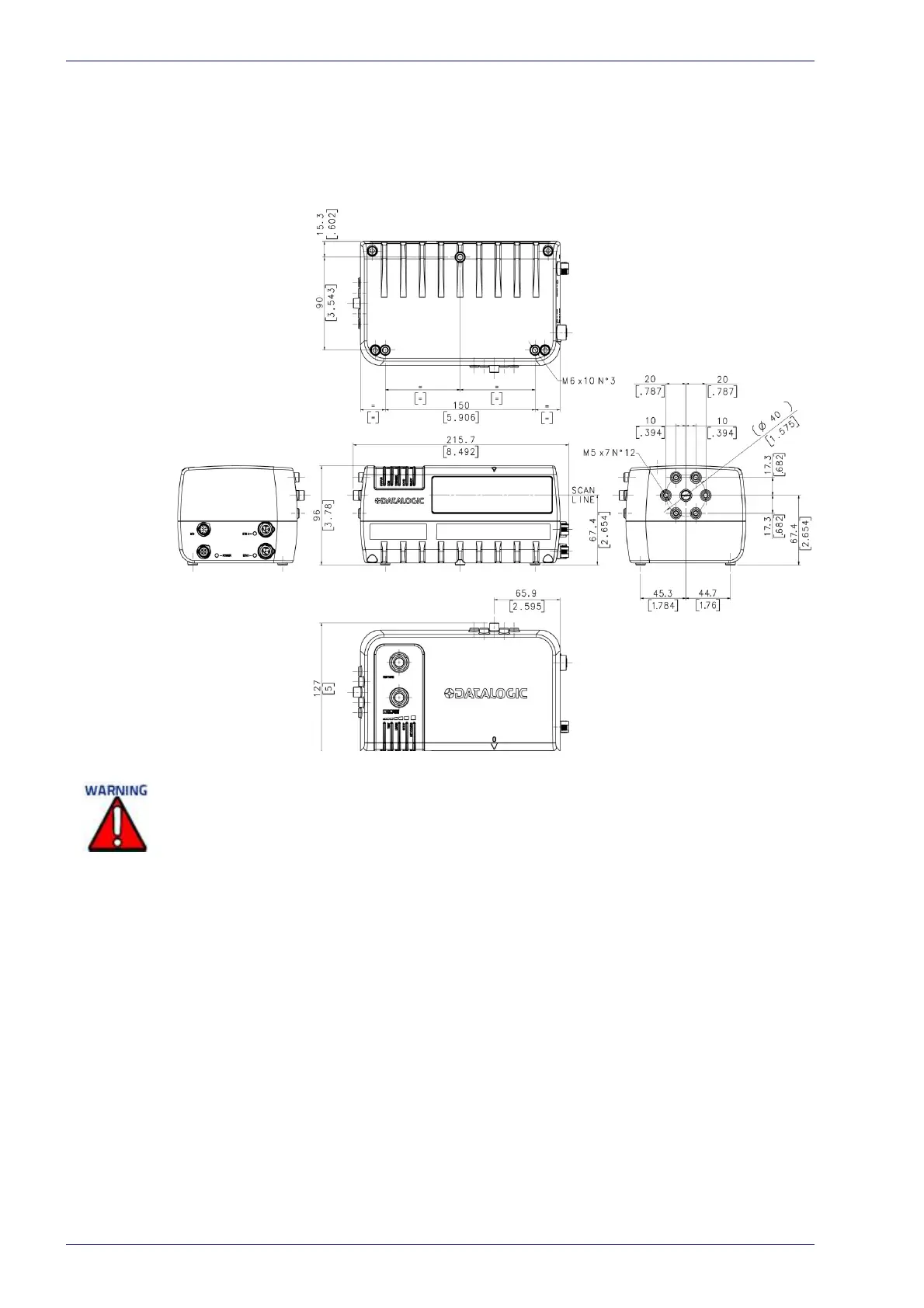

The overall dimensions of the DS8110 are 216 x 96 x 127 mm (8.5 x 3.8 x 5 in.).
Physical Support Requirements
For details on the weight of the barcode scanners,
see Chapter 8, Technical Fea-
tures.
Multiple-head systems may include further details on the physical support
requirements with any application-specific documentation provided.
Vibration Limitations
See “Technical Features” on page 260
.
The DS8110 is a sealed, unventilated unit. Mounting the unit with 300mm [12”] of
clearance (front, top, and sides) is recommended for cooling and ease of maintenance.
