Electrical Installation
26
DS8110 Barcode Scanner
DS8110 Connector Panels

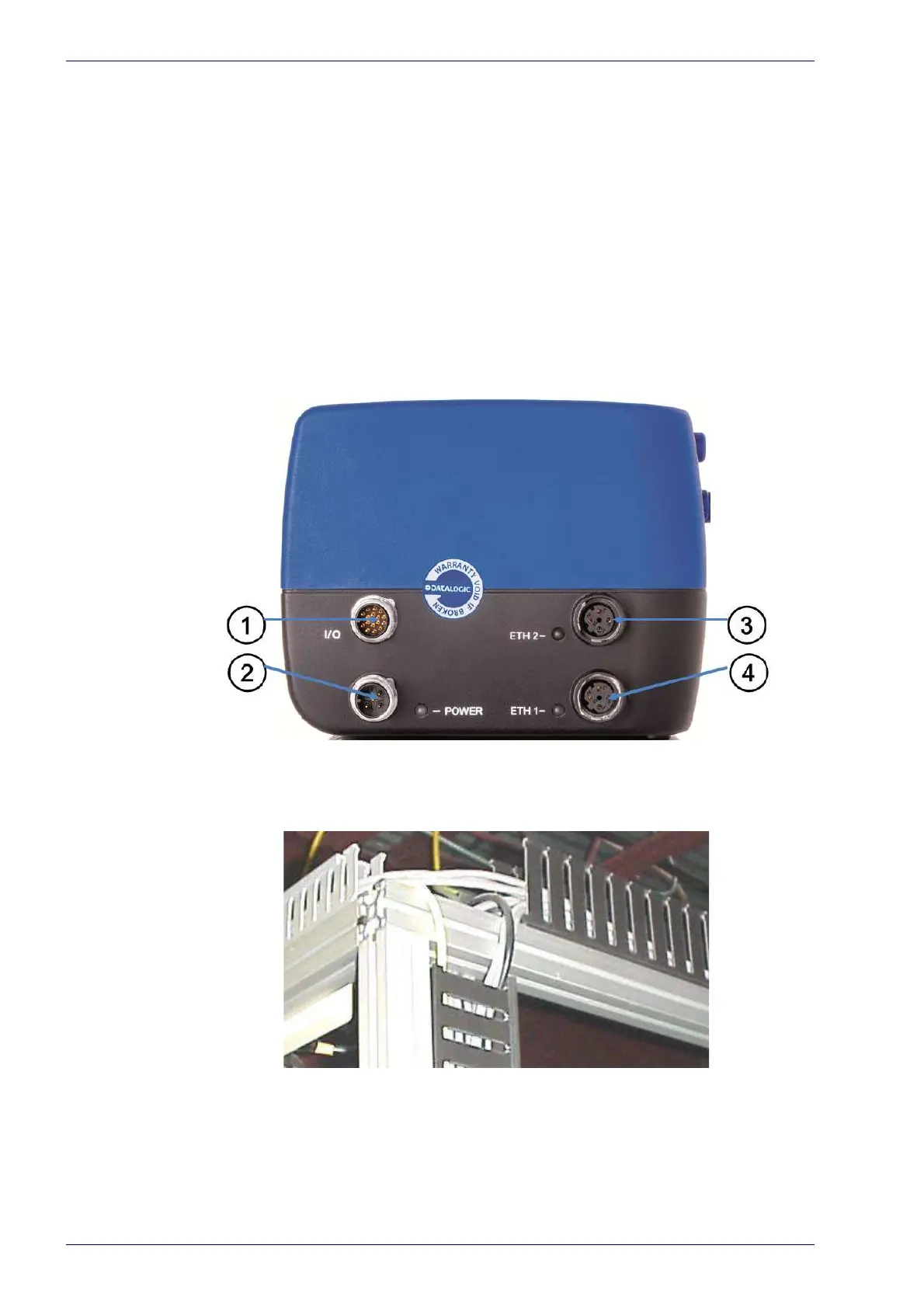

After completing mechanical installation, use this section to properly wire your
scanners for optimal performance in your application. DS8110 wiring connec-
tions are made to the connector panel and through the CBX connection box
(c
onnected to the I/O port of the scanner). In most applications, the cable con-
nections to the scanner will include:
1. I/O (Connects directly to the 25-pin D
type connector on the CBX connec-
tion box)
2. POWER
3. ETH 2(Setup or EBC scanner network, default IP Address: 192.168.3.100)
4. ETH 1 (Host or EBC scanner network, default IP Address: 172.27.101.220)
Route wiring from the scanner’s connector panel through the wiring channels (if
available) on the Datalogic mounting structure when interconnecting cables to
other devices.
