Control Panel Buttons
Reference Manual 203
Control Panel Buttons

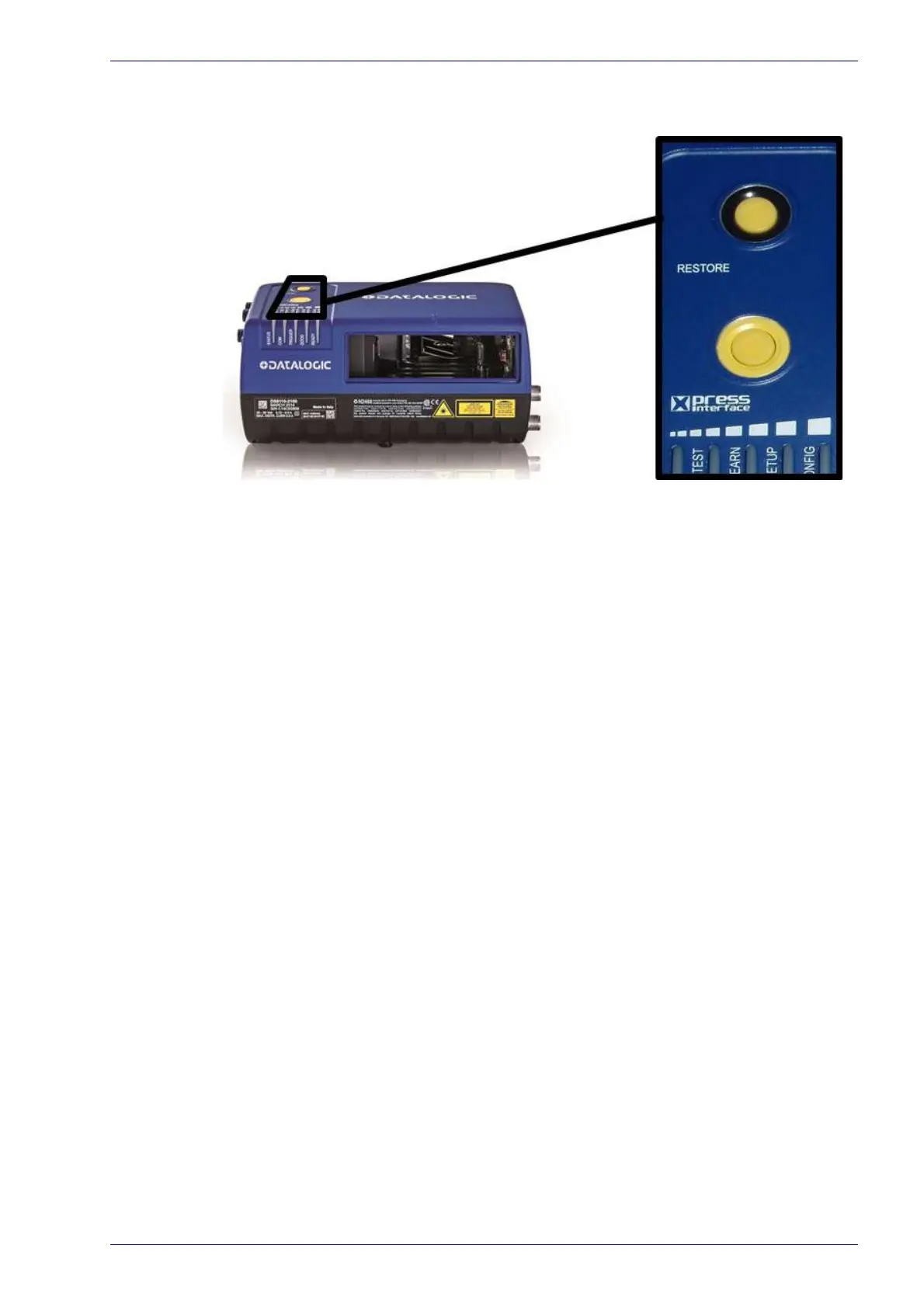

X-PRESS™ Human Machine Interface
X-Press is the intuitive Human Machine Interface designed to improve ease of
installation and maintenance.
Status information is clearly presented
by means of the five
colored LEDs,
whereas the single push button gives immediate access to the following relevant
functions:
TEST with bar graph visualization to check static reading performance
LEARN t
o self-detect and auto-configure for reading unknown codes
SETUP t
o allow the open Ethernet port in the last slave scanner in a Master/
Slave system to work as a dedicated setup port
NET
CONFIG
to locate and configure slave scanners in a array (tunnel)
X-PRESS Functions
Quick access to the following functions is provided by an easy procedure using
the push button:
1. Press the button (the Status LED will give a visual feedback).
2. Hold the button until the specific function LED is on (TEST, LEARN, SETUP,
or NETCONFIG).
3. Release the button to enter the specific function.
Once button is pressed and held, the cycle o
f LEDs activation is as follows:
