Fieldbus
Reference Manual 121
Fieldbus
Use the Fieldbus window to configure Fieldbus type communication between the
scanner and Host, or, in a multi-sided layout, between several scanners and a
Host.
To edit the Fieldbus settings:
1. In the menu under Modify Settings, navigate to Global Settings | Fieldbus.

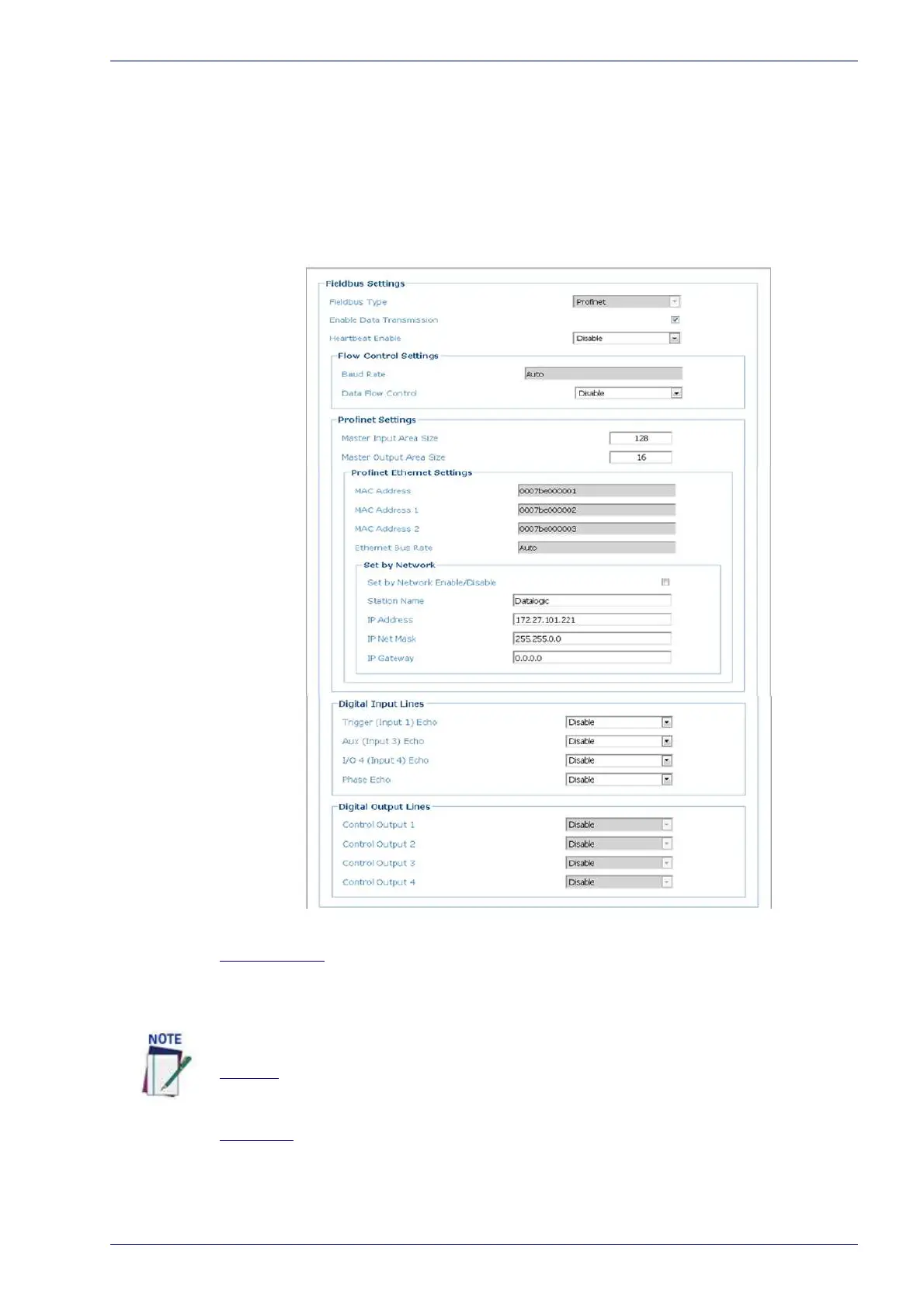

The Fieldbus window opens.
2. Enter the appropriate information in the form as described below:
Fieldbus Type
Fieldbus type is displayed. When using the CBX510 with Fieldbus modules, select
the correct Fieldbus Type. For SC5000, this option is preset and read-only based
on the controller model used.
Data Tx
Select Enable or Disable from the drop-down list. If enabled, the fieldbus port is
used by the scanner to transmit data and/or messages.
Heartbeat
Select Disable, Enable Unconditioned, or Enable Conditioned from the drop-down
list.
The Fieldbus is only available on specific models of the SC5000.
To Next Page
