User Interface
122 DX8210 Barcode Scanner
This parameter is available when the Data TX parameter is checked. It enables/
disables the transmission of the Heartbeat message signaling that the device is still
active.
Disable: The Heartbeat message is not transmitted
Enable Unconditioned: The Heartbeat message is always transmitted, even if
communication is still active
Enable Conditioned: The Heartbeat message is transmitted only when there is
no communication

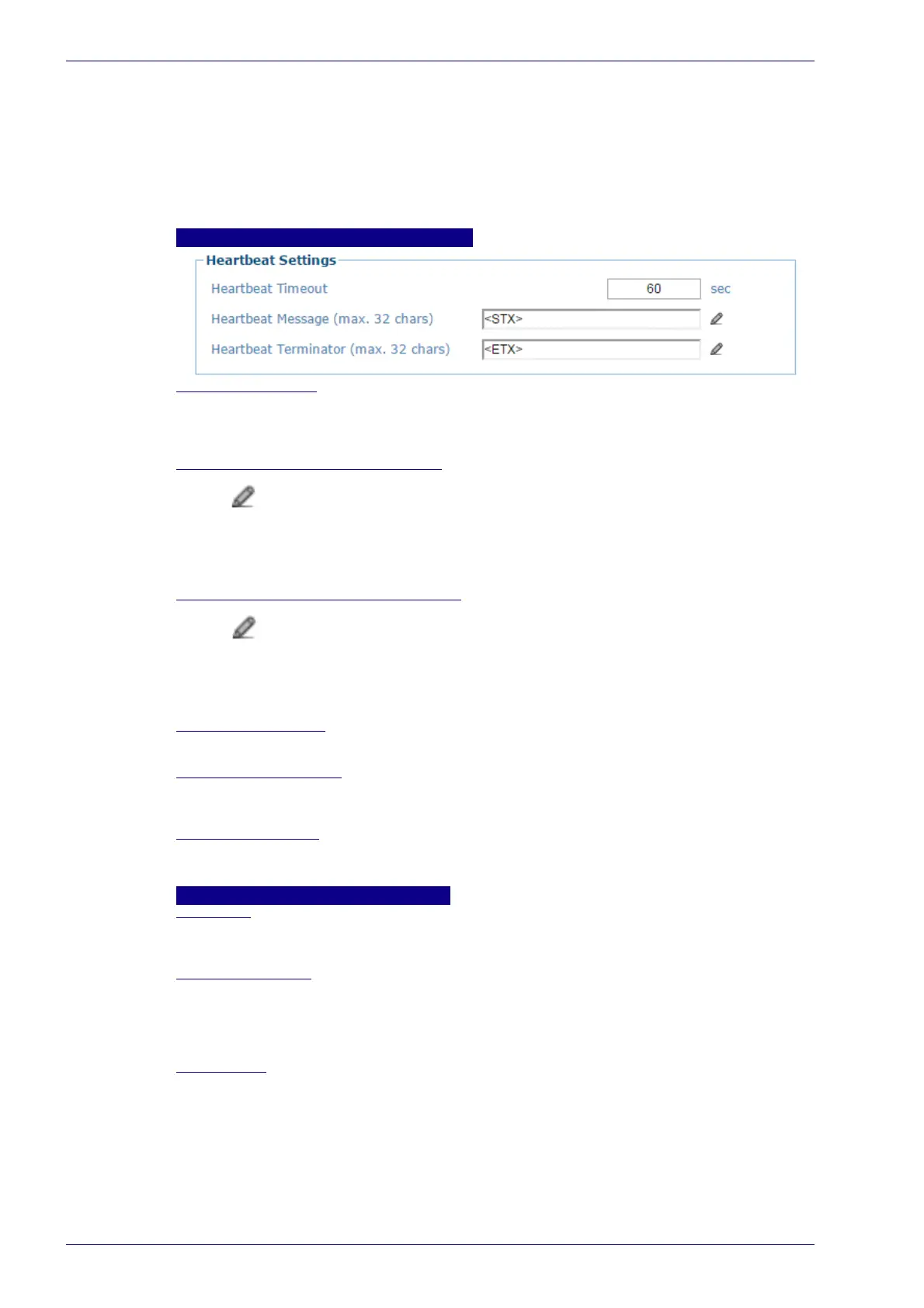

Heartbeat Settings
Heartbeat Timeout
Enter a time value in seconds to define the amount of time between two message
transmissions. If the input timeout expires and no transmission has occurred, the
Heartbeat message will be transmitted.
Heartbeat Message (max. 32 chars)
Click to activate the Text Entry Tool and create heartbeat header text to signal
the beginning of the heartbeat message. Characters from NUL (00H) to ~ (7EH) can
be used.
The Heartbeat Message (header) string must be different from the Heartbeat
Terminator string.
Heartbeat Terminator (max. 32 chars)
Click to activate the Text Entry Tool and create Heartbeat Terminator text to
signal the end of the heartbeat message. Characters from NUL (00H) to ~ (7EH) can
be used.
The Heartbeat Terminator string must be different from the Heartbeat Message
(header) string.
Send Failure Bitmap
Select the check box to include a Failure Bitmap in the heartbeat message.
Failure Bitmap Format
Select the format of the Failure Bitmap from the drop-down. Options are; Decimal
(ASCII), Hexidecimal (ASCII), Bitmap (ASCII) and Numeric (Binary).
Failure Bitmap Size
Select the size of the Failure Bitmap from the drop-down. Options are; Variable,
or 1-32.
Flow Control Settings
Baud Rate
This is a read-only parameter. The default value Auto allows the Host to control the
data transmission speed of the Profibus network.
Data Flow Control
Select Disable, DAD Driver, or DPD Driver from the drop-down list. This
implements a reliable transmission protocol between Fieldbus Master (PLC) and
Fieldbus Slave (SC5000 or Scanner Master) allowing specific functions such as
Synchronization, Fragmentation/Reassembling and Data Consistency
Consistency
Select Disable or Enable from the drop-down list. This parameter is available only
when the Data Flow Control parameter is set to DAD or DPD Driver. If enabled,
it allows improving the overall communication robustness of the Fieldbus network.
